Fast 9JS180 MT Parts
FAST 9JS180 transmission has 9 forward gears, the gear ratio steps are arranged reasonably, and has very outstanding fuel economy performance. With mechanical structure design and integrated with a synchronizer, the Maximum input speed is 2600 RPM. The length of the 9JS180 transmission is 858.4 mm. The 9JS180 manual transmission has 9 gears, and each gear has a different reduction ratio. The 1st gear reduction ratio is 12.650, the 2nd gear reduction ratio is 8.379, the 3rd gear reduction ratio is 6.220, the 4th gear reduction ratio is 4.572, the 5th gear reduction ratio is 3.400, the 6th gear reduction ratio is 2.464, the 7th gear reduction ratio is 1.830, the 8th gear reduction ratio is 1.345, the 9th gear reduction ratio is 1.000, and the reverse gear 1 ratio is 13.225. The 9JS180 manual transmission has an input torque range of 1800 N.m. The 9JS180 transmission weight is 300 Kg.
FAST 9-speed MT series transmission have different models, with code J in the model name means mechanical transmission, with code SS in the model name means transmission with Double Intermediate Shaft and auxiliary box three intermediate shaft design.
With years of rich powertrain supply experience, EMAC can quickly understand and respond to customer needs, greatly reducing customer communication costs. According to the working environment and requirements of our customers, we will provide the most cost-effective solutions, and help customer to avoid mismatching problems caused by multiple independent suppliers of powertrain components, which often caused lot of troubles for vehicle manufacturers.
Advantages of Fast 9JS180 MT Parts
-
It is synchronized with CMI’ advanced design and sophisticated manufacturing, adapts to harsh working conditions, and has high-intensity and heavy-duty work capabilities.
-
The Holset wastegate valve makes the low speed performance more perfect and the power performance better.
-
The cylinder block and cylinder head adopt integrated design to prevent the occurrence of engine water and oil leakage. The parts are 40% less than other similar engines, and the failure rate is greatly reduced.
-
The cylinder liner adopts a platform mesh honing design, which effectively prevents oil leakage with a perfect geometric structure, and adopts advanced technology such as new piston ring components and gasket crimping molding to reduce oil loss.
-
Using forged steel camshaft and crankshaft, high-strength cylinder design, many parts are cast on the cylinder, with high rigidity, high pressure resistance, good reliability and longer service life.
Technical Specifications
Basic Introduction of Shaanxi Fast 9JS180 MT
| Transmission Model: | 9JS180 |
| Transmission Application: | Manual Transmission |
| Input Torque: | 1800 N.m |
| Maximum Speed: | 2600 RPM |
| Installation length: | 858.4 mm |
| Weight Iron/Al Alloy: | 300 Kg |
| Fuel Quantity: | 13 L |
| Speed Ratio: | 12.650-1 |
| Lead Time: | 15-30 Working Days |
| Payment Terms: | T/T ,L/C |
Search by Part No. or Part Name
Click Kit Name to Check Part List

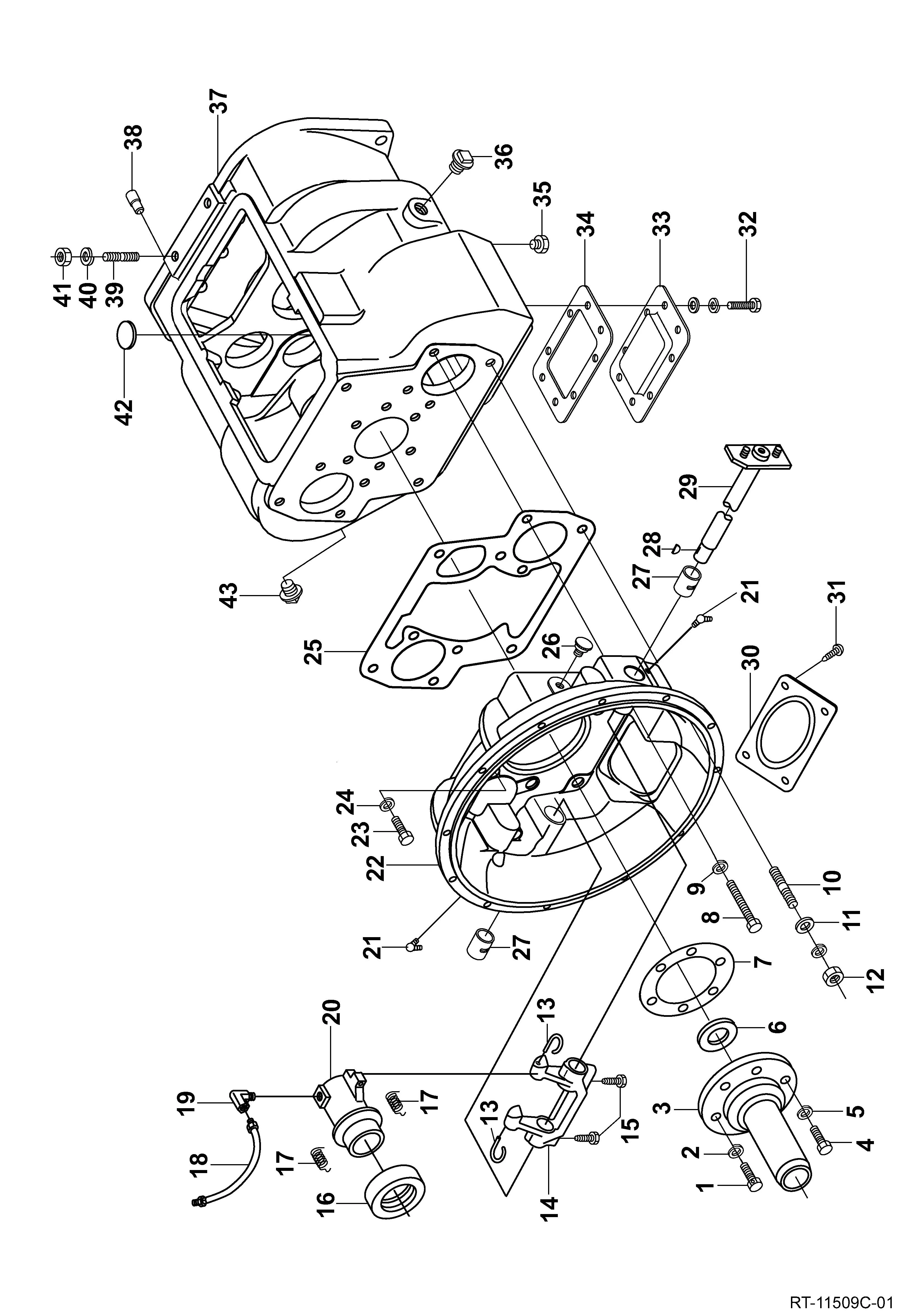

- Clutch and Transmission Housing Assembly
- Second Shaft Assembly
- Left and Right Intermediate Shaft Assembly
- One Shaft Assembly
- Reverse Gear Intermediate Shaft Assembly
- Upper Cover Assembly
- Control Device Assembly
- Air Filter Regulator Assembly
- Auxiliary Box Drive Gear Assembly

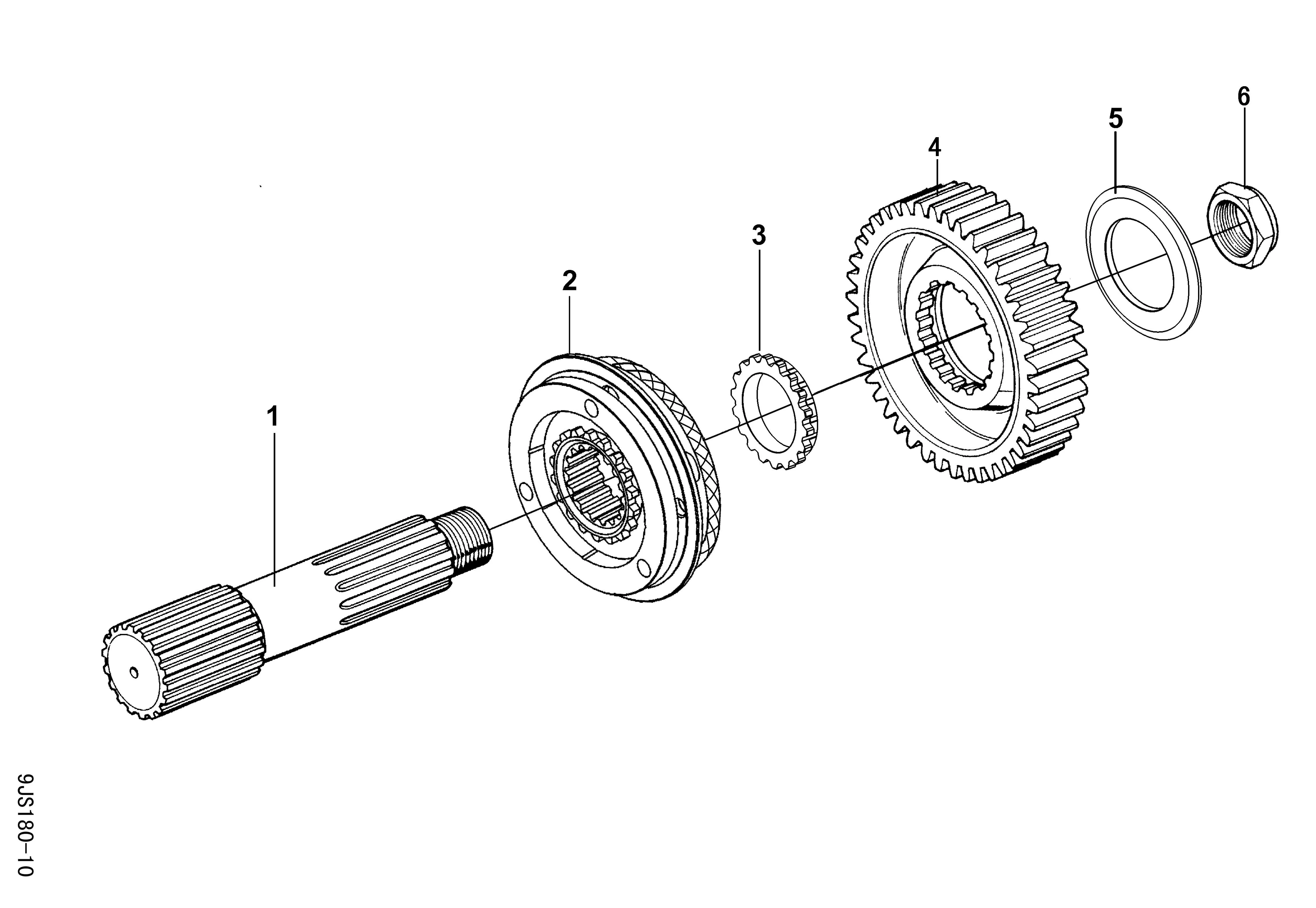

- Auxiliary Gearbox Main Shaft Assembly

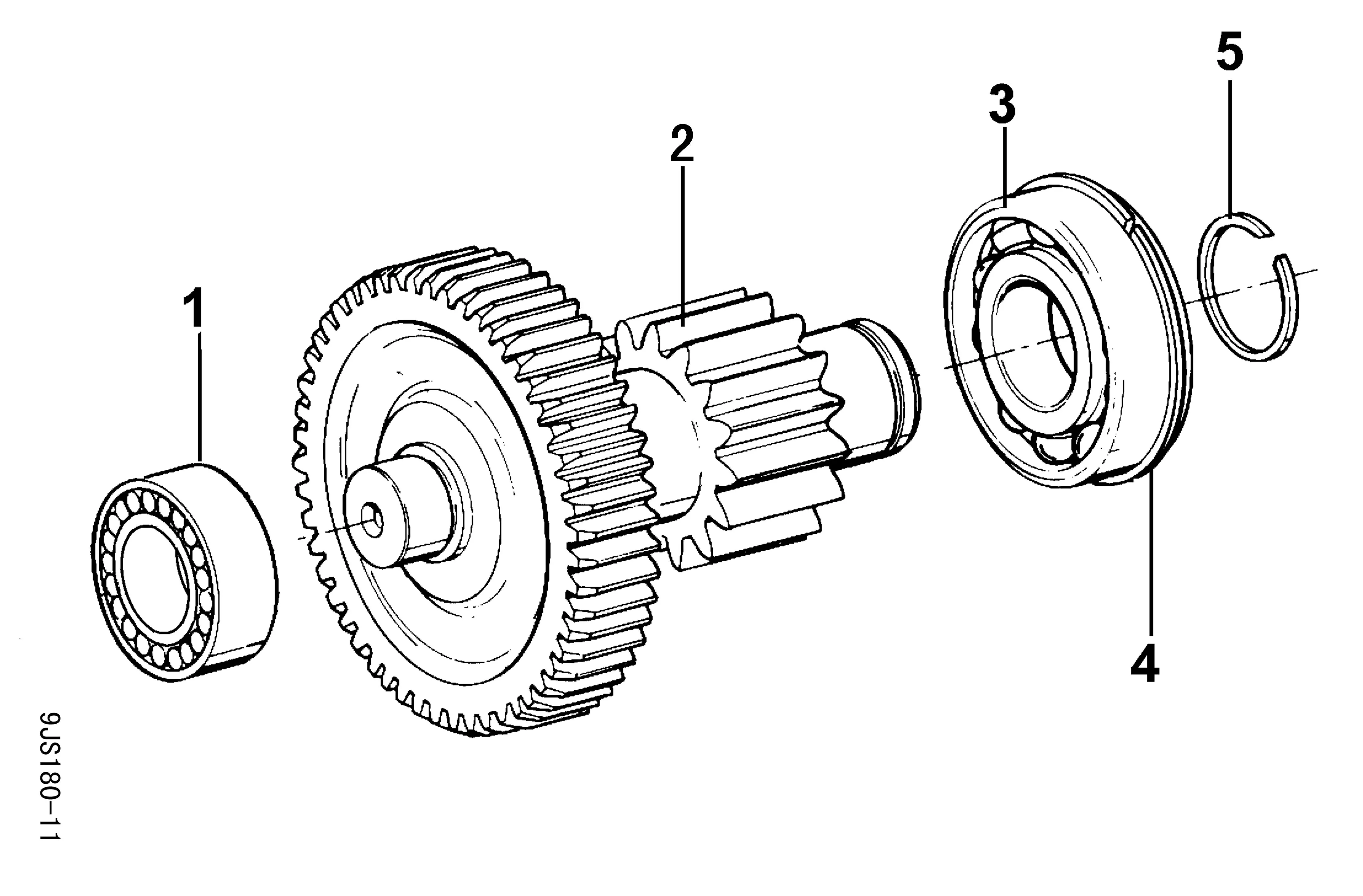

- Auxiliary Box Left and Right Intermediate Shaft

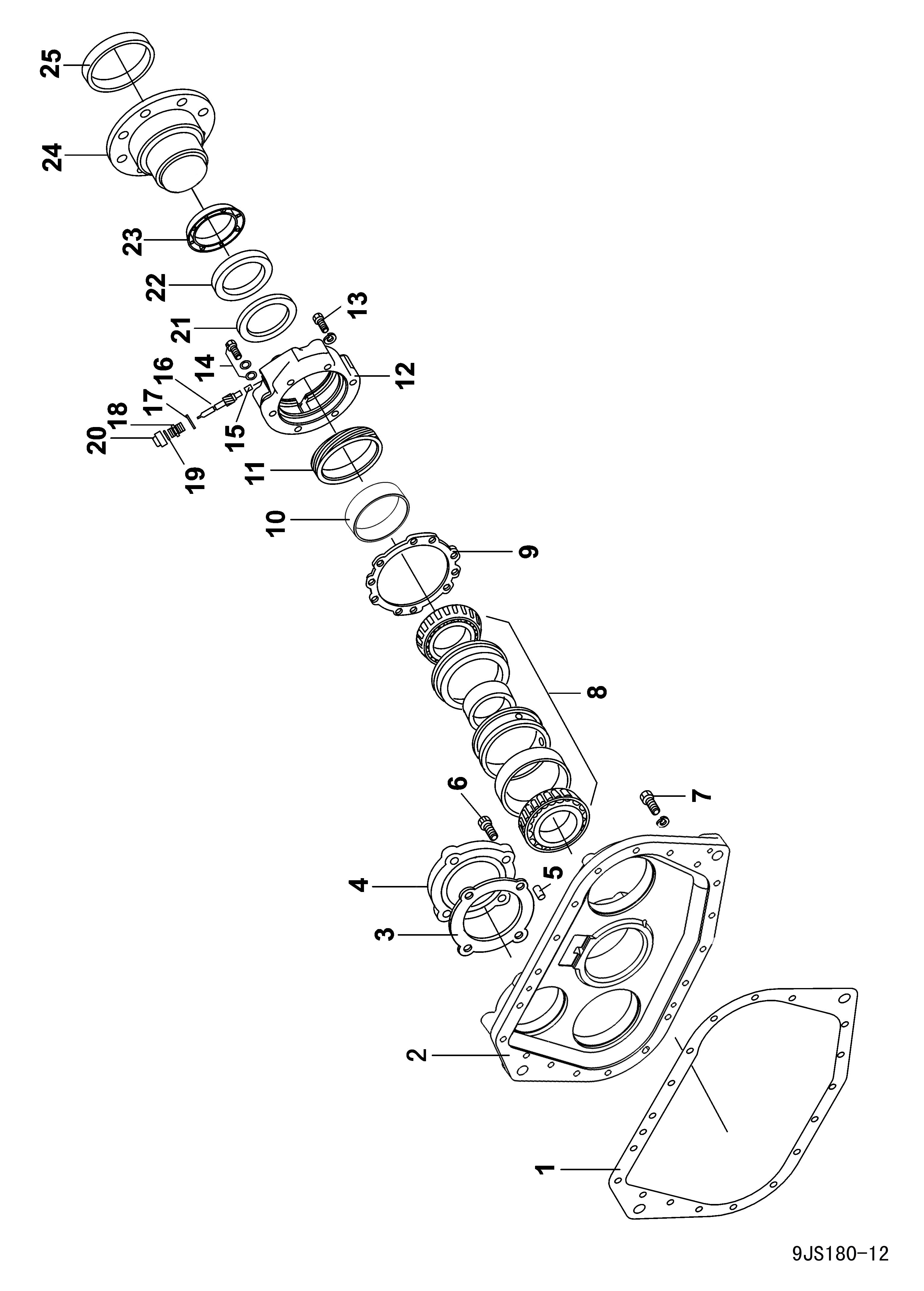

- Rear Cover Assembly

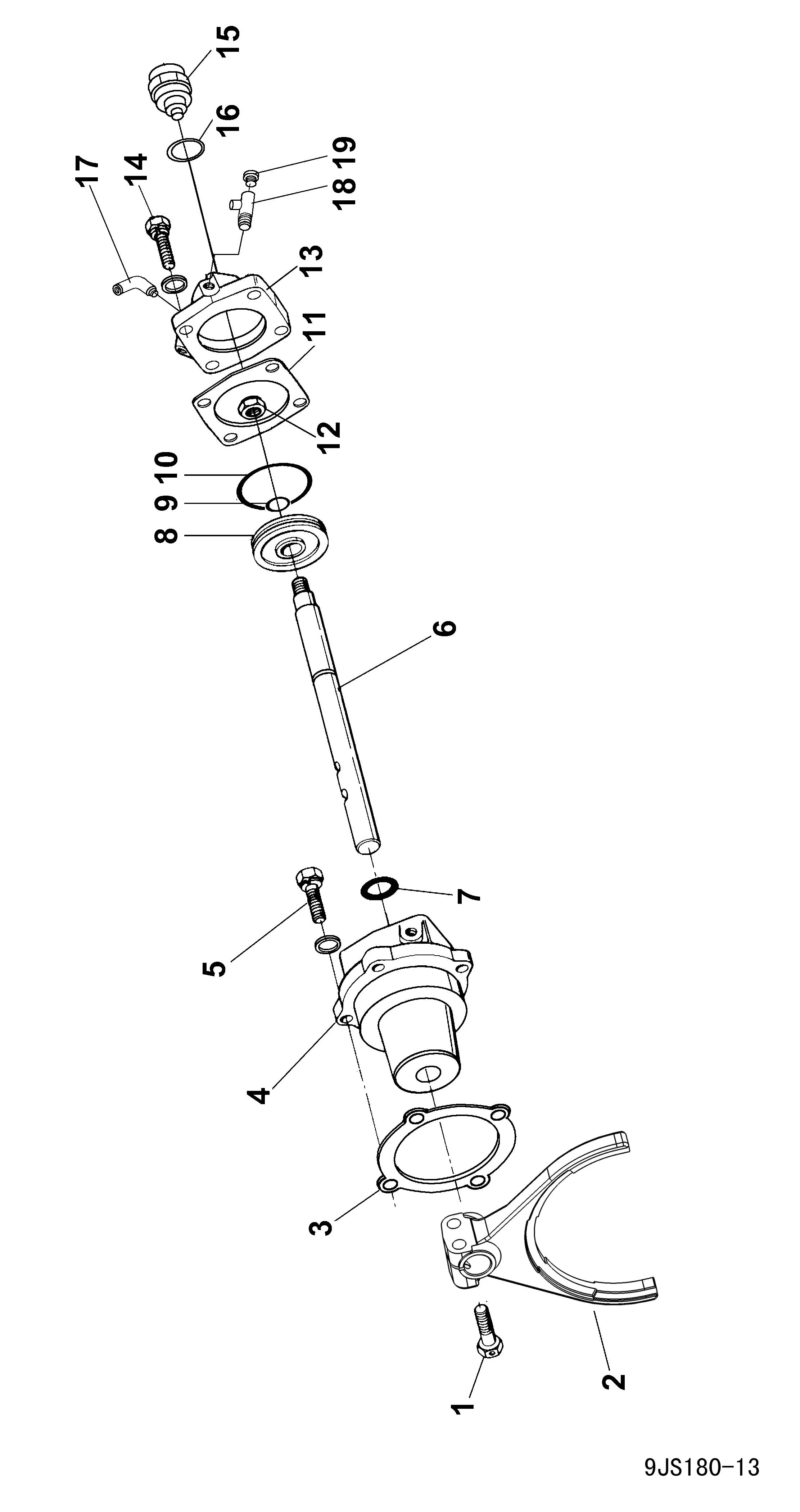

- Auxiliary Box Cylinder Assembly
- Intermediate Shaft Brake Assembly
No. |
Part No. |
Name |
Qty. |
Remarks |
| 1 | Q1701032 | Hexagon Head Bolt with Hole in Head M10×32 | 2 | — |
| 2 | GB93-76 | Spring Washer 10 (GB93-76) | 2 | — |
| 3 | F91409 | First Shaft Bearing Cover | 1 | — |
| 4 | GB21-76 | Hexagon Head Bolt M10×32 (GB21-76) | 4 | — |
| 5 | GB93-76 | Spring Washer 10 (GB93-76) | 4 | — |
| 6 | F91410 | First Shaft Bearing Cover Oil Seal | 1 | — |
| 7 | 14311 | First Shaft Bearing Cover Gasket | 1 | — |
| 8 | GB21-76 | Small Hexagon Head Bolt M12×90 (GB21-76) | 2 | — |
| 9 | GB93-76 | Spring Washer 12 (GB93-76) | 2 | — |
| 10 | C01056 | Stud Bolt | 6 | — |
| 11 | GB95-76 | Washer 16 (GB95-76) | 6 | — |
| 12 | GB889-80 | Hexagon Nut with Nylon Ring Lock M16×1.5 (GB889-80) | 6 | — |
| 13 | 9293 | Bearing Return Spring | 2 | — |
| 14 | 12817 | Clutch Release Fork | 1 | — |
| 15 | X-7-603 | Hexagon Head Bolt | 2 | — |
| 16 | 996914 | Angular Contact Clutch Release Ball Bearing | 1 | — |
| 17 | 4425 | Tension Spring | 2 | — |
| 18 | 51016 | Oil Pipe Assembly | 1 | — |
| 19 | 12880 | 45° Elbow Pipe Fitting | 1 | — |
| 20 | C04002 | Clutch Release Bearing Housing | 1 | — |
| 21 | Q701B45 | Angled Grease Fitting | 2 | — |
| 22 | 15410 | SAE1# Clutch Housing | 1 | — |
| 23 | GB21-76 | Small Hexagon Head Bolt M12×36 (GB21-76) | 2 | — |
| 24 | GB93-76 | Spring Washer | 2 | — |
| 25 | 20822 | Clutch Housing Gasket | 1 | — |
| 26 | GB1154-79A-6 | Screw-On Oil Cup Type A-6 M10×1 (GB1154-79) | 1 | — |
| 27 | 8677 | Clutch Fork Shaft Bushing | 1 | — |
| 28 | X-6-11 | Woodruff Key | 1 | — |
| 29 | A-C04009 | Clutch Release Fork Shaft Assembly | 1 | — |
| 30 | 1565 | Clutch Hand Hole Cover | 1 | — |
| 31 | GB21-76 | Small Hexagon Head Bolt M8×12 (GB21-76) | 4 | — |
| 32 | GB21-76 | Small Hexagon Head Bolt M12×25 (GB21-76) | 8 | — |
| 33 | 16596 | Bottom PTO Window | 1 | — |
| 34 | 16929 | Bottom PTO Window Gasket | 1 | — |
| 35 | Q614B06 | Square Head Tapered Plug NPT3/4 | 1 | — |
| 36 | Q614B12 | Square Head Tapered Plug | 1 | — |
| 37 | 18686 | Transmission Case | 1 | — |
| 38 | 14334 | Rear Cover Locating Pin | 2 | — |
| 39 | Q1231630 | Stud Bolt | 2 | — |
| 40 | GB93-76 | Spring Washer 16 (GB93-76) | 2 | — |
| 41 | GB52-76 | Hexagon Nut M16×1.5 (GB52-76) | 2 | — |
| 42 | 14373 | Round Magnet | 3 | — |
| 43 | Q61304 | Square Head Tapered Plug | 1 | — |
| ——END—— | ||||
No. |
Part No. |
Name |
Qty. |
Remarks |

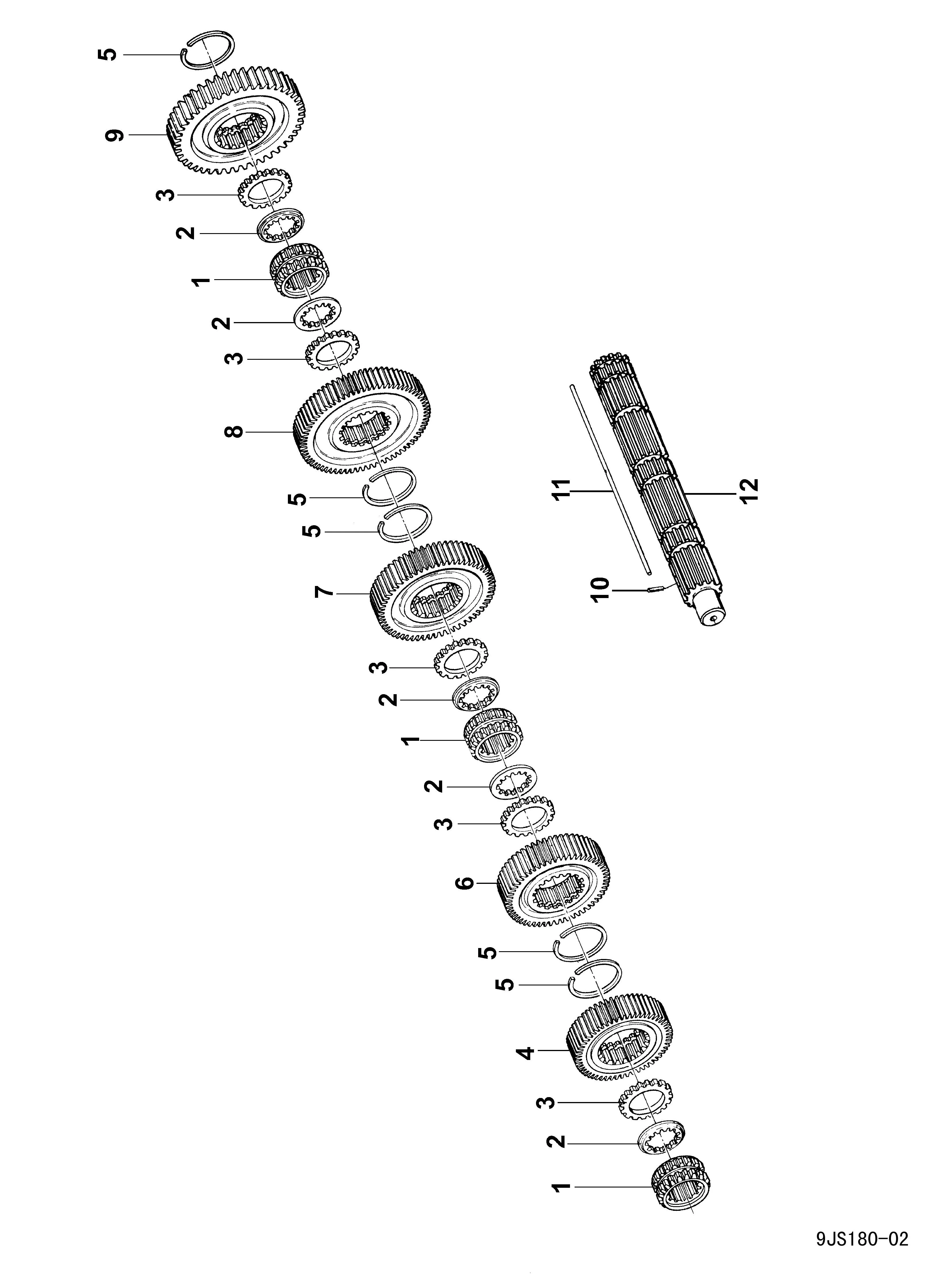

| 1 | 16118 | Second Shaft Sliding Sleeve | 3 | — |
| 2 | 18701 | Second Shaft Gear Adjusting Washer | 5 | — |
| 3 | 14749 | Second Shaft Gear Spline Washer | 5 | — |
| 4 | T115F-1701132 | Second Shaft 3rd Gear | 1 | — |
| 5 | 14750 | Retaining Ring | 5 | — |
| 6 | 19614 | Second Shaft 2nd Gear | 1 | — |
| 7 | 16246 | Second Shaft 1st Gear | 1 | — |
| 8 | 16754 | Second Shaft Low Gear | 1 | — |
| 9 | 16756 | Second Shaft Reverse Gear | 1 | — |
| 10 | GB879-86 | Elastic Cylindrical Pin 3×10 (GB879-86) | 1 | — |
| 11 | 17109 | Second Shaft Hexagon Key | 1 | — |
| 12 | JS180-1701105 | Second Shaft | 1 | — |
| ——END—— | ||||
1 |
GB21-76 |
Hexagon Head Bolt M16×1.5×45 (GB21-76) |
2 |
— |

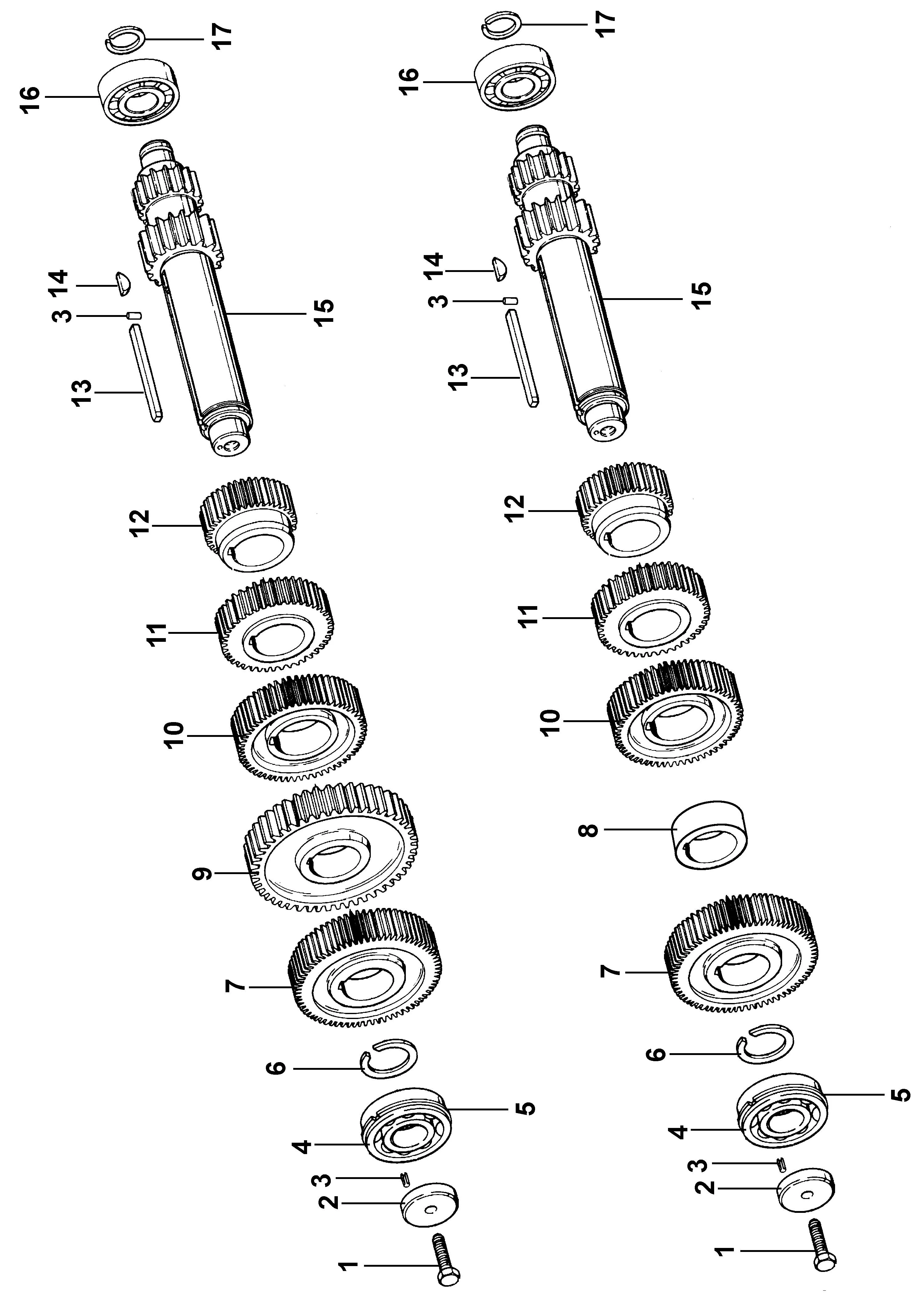

| 2 | 19668 | Countershaft Bearing Baffle Plate | 2 | — |
| 3 | GB879-76 | Elastic Cylindrical Pin 5×14 (GB879-76) | 4 | — |
| 4 | 370309Y | Single-Row Radial Ball Bearing | 2 | — |
| 5 | C01021 | Retaining Ring | 2 | — |
| 6 | 19198 | Countershaft Retaining Ring | 2 | — |
| 7 | 19631 | Countershaft Drive Gear | 2 | — |
| 8 | C01025 | Spacer Sleeve | 1 | — |
| 9 | C01026 | Friction Wheel | 1 | — |
| 10 | 19243 | Countershaft 3rd Gear | 2 | — |
| 11 | 19615 | Countershaft 2nd Gear | 2 | — |
| 12 | 19247 | Countershaft 1st Gear | 2 | — |
| 13 | 19673 | Countershaft Square Key | 2 | — |
| 14 | X-6-E | Woodruff Key | 2 | — |
| 15 | 19549 | Countershaft | 2 | — |
| 16 | 102308E | Short Cylindrical Roller Bearing | 2 | — |
| 17 | 14317 | Retaining Ring | 2 | — |
| ——END—— | ||||
1 |
8858 |
First Shaft Nut |
1 |
— |
| 2 | C01020 | Retaining Ring | 1 | — |
| 3 | 150212K | Single-Row Radial Ball Bearing with Snap Groove and Dust Cover on One Side | 1 | — |
| 4 | 16463 | Gear Spacer Washer | 1 | — |
| 5 | 14750 | Retaining Ring | 1 | — |
| 6 | 19630 | First Shaft Gear | 1 | — |
| 7 | 19694 | First Shaft | 1 | — |
| 8 | 16566 | Second Shaft Guide Bushing | 1 | — |
| ——END—— | ||||
No. |
Part No. |
Name |
Qty. |
Remarks |

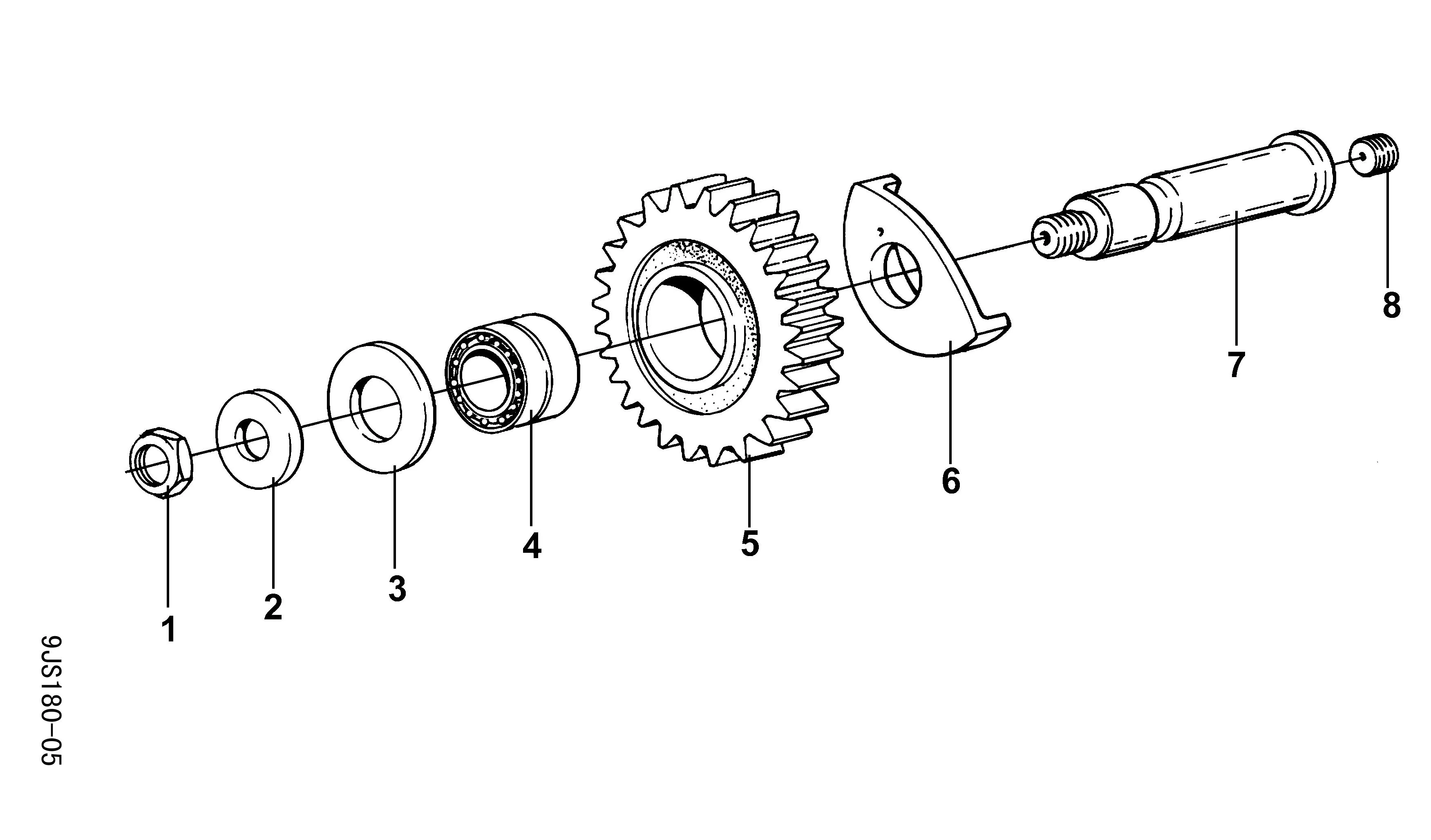

| 1 | GB890-80 | Nut M16×1.5 (GB890-80) | 2 | — |
| 2 | 14283 | Reverse Idler Shaft Washer | 2 | — |
| 3 | 14282 | Reverse Thrust Washer | 2 | — |
| 4 | 14287 | Needle Roller Bearing | 2 | — |
| 5 | 16757 | Reverse Idler Gear | 2 | — |
| 6 | 16403 | Cup-Type Reverse Washer | 2 | — |
| 7 | 16405 | Reverse Idler Shaft | 2 | — |
| 8 | GB73-76 | Flat End Set Screw M12×12 (GB73-76) | 2 | — |
| ——END—— | ||||
No. |
Part No. |
Name |
Qty. |
Remarks |

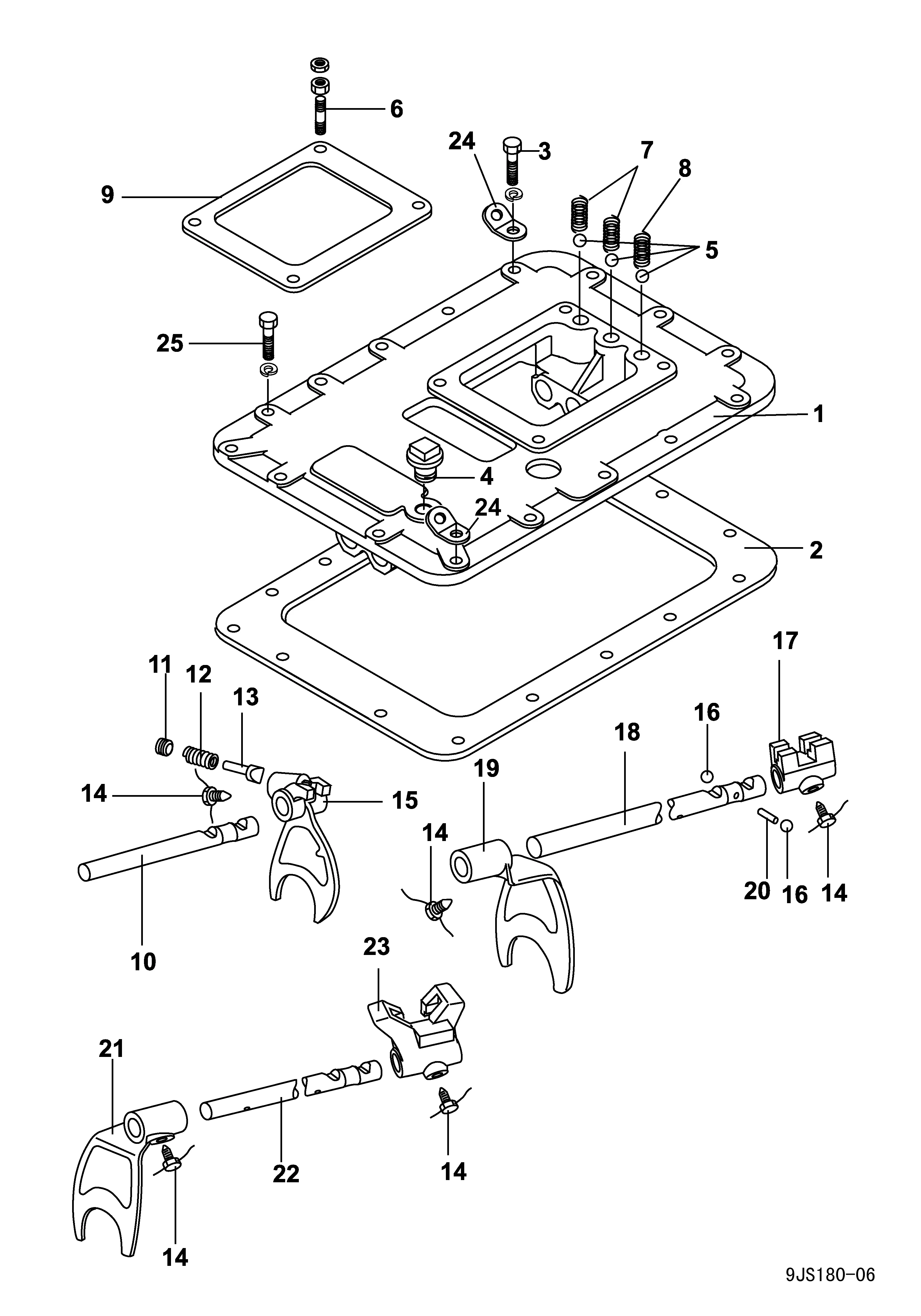

| 1 | F99980 | Upper Cover | 1 | — |
| 2 | 14918 | Upper Cover Gasket | 1 | — |
| 3 | GB21-76 | Small Hexagon Head Bolt M10×38 (GB21-76) | 2 | — |
| 4 | Q614B10 | Square Head Tapered Plug | 1 | — |
| 5 | GB308-84 | Steel Ball 12.7 (GB308-84) | 3 | — |
| 6 | 11066 | Stud Bolt | 4 | — |
| 7 | F96085 | Compression Spring | 2 | — |
| 8 | F96084 | Compression Spring | 1 | — |
| 9 | 1642 | Control Window Gasket | 1 | — |
| 10 | 16132 | Low/Reverse Shift Fork Shaft | 1 | — |
| 11 | 8968 | Reverse Lock Plug | 1 | — |
| 12 | 8774 | Reverse Lock Spring | 1 | — |
| 13 | F99671 | Reverse Lock Plunger | 1 | — |
| 14 | 3220 | Shift Fork Locking Screw | 5 | — |
| 15 | F99664 | Low/Reverse Shift Fork | 1 | — |
| 16 | GB308-84 | Steel Ball 19.05 (GB308-84) | 1 | — |
| 17 | F99588 | 1st/2nd & 5th/6th Gear Guide Block | 1 | — |
| 18 | 16133 | 1st/2nd Gear Shift Fork Shaft | 1 | — |
| 19 | 16135 | 1st/2nd Gear Shift Fork | 1 | — |
| 20 | 1634 | Shift Fork Shaft Interlock Pin | 1 | — |
| 21 | 16136 | 3rd/4th Gear Shift Fork | 1 | — |
| 22 | 18643 | 3rd/4th Gear Shift Fork Shaft | 1 | — |
| 23 | F99589 | 3rd/4th & 7th/8th Gear Guide Block | 1 | — |
| 24 | 20815 | Lifting Bent Plate | 2 | — |
| 25 | GB21-76 | Small Hexagon Head Bolt M10×32 (GB21-76) | 14 | — |
| ——END—— | ||||
No. |
Part No. |
Name |
Qty. |
Remarks |

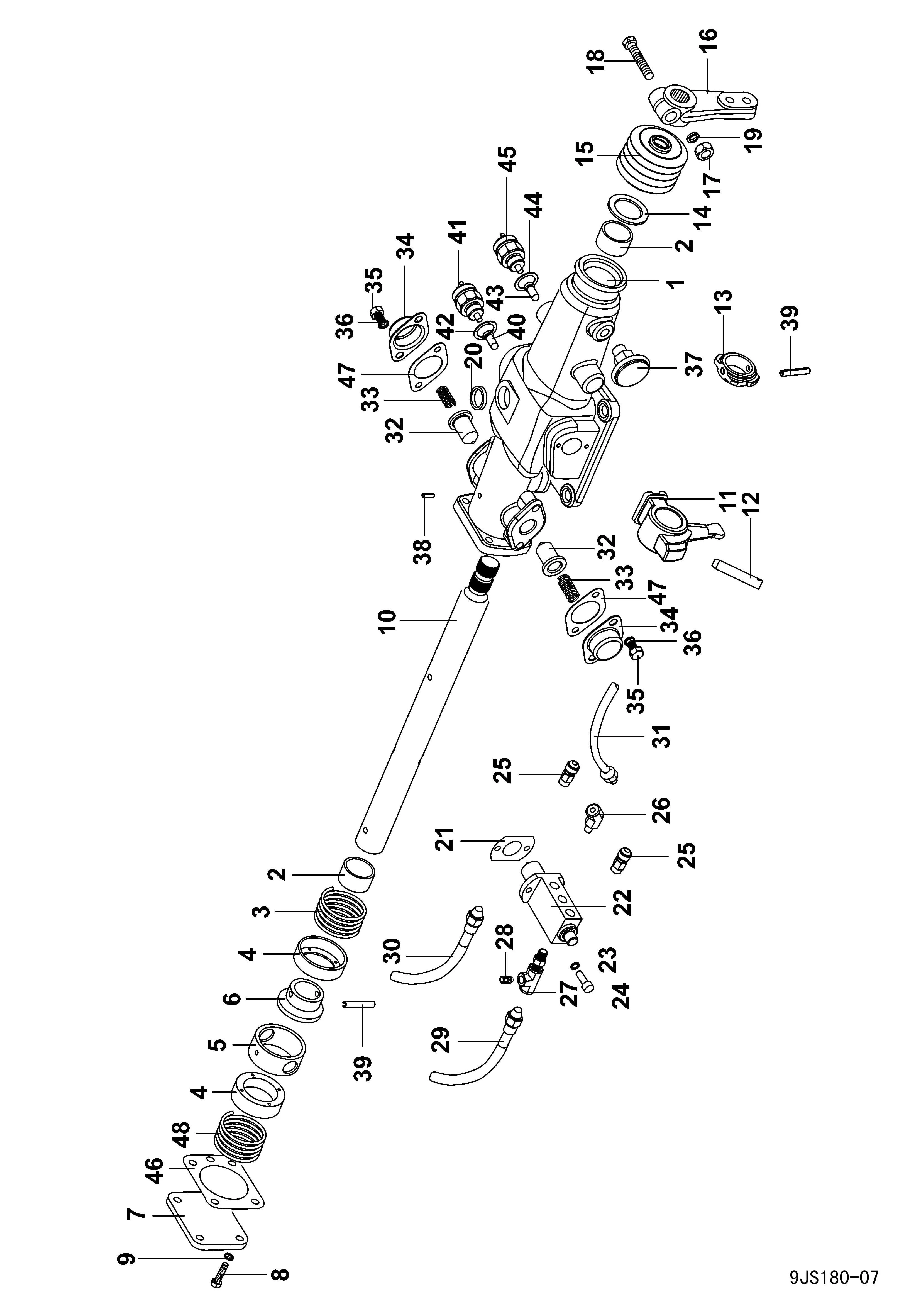

| 1 | F96194 | Dual H-Control Device Housing | 1 | — |
| 2 | F91345 | Lateral Shift Lever Bushing | 2 | — |
| 3 | F99983 | Compression Spring | 2 | — |
| 4 | F99673 | Spring Seat | 2 | — |
| 5 | F99674 | Spring Spacer Sleeve | 1 | — |
| 6 | F99675 | Locating Ring | 1 | — |
| 7 | F99666 | Side Plate | 1 | — |
| 8 | GB21-76 | Small Hexagon Head Bolt M8×22 (GB21-76) | 4 | — |
| 9 | GB93-76 | Spring Washer 8 (GB93-76) | 2 | — |
| 10 | F99679 | Lateral Shift Lever | 1 | — |
| 11 | F99585 | Shift Head | 1 | — |
| 12 | C03030 | Cylindrical Pin | 1 | — |
| 13 | F99681 | Low/Reverse Switch Control Block | 1 | — |
| 14 | F91444 | Oil Seal | 1 | — |
| 15 | F99669 | Sleeve | 1 | — |
| 16 | F96035 | LRC External Shift Arm | 1 | — |
| 17 | GB51-76 | Small Hexagon Nut M10×1 (GB51-76) | 1 | — |
| 18 | GB21-76 | Small Hexagon Head Bolt M10×50 (GB21-76) | 1 | — |
| 19 | GB93-76 | Washer 10 (GB93-76) | 1 | — |
| 20 | Q72224 | Bowl-Type Plug | 1 | — |
| 21 | F91353 | Dual H-Air Valve Gasket | 1 | — |
| 22 | F99660 | Dual H-Air Valve | 1 | — |
| 23 | GB93-76 | Spring Washer 6 (GB93-76) | 2 | — |
| 24 | GB70-76 | Hexagon Socket Head Cap Screw | 2 | — |
| 25 | 7935 | Breather Plug | 2 | — |
| 26 | 12880 | 45° Elbow Pipe Fitting | 1 | — |
| 27 | C03052 | Tee Pipe Fitting | 1 | — |
| 28 | Q618B01 | Hexagon Head Tapered Plug | 1 | — |
| 29 | 55522 | Air Pipe Assembly | 1 | — |
| 30 | 55523 | Air Pipe Assembly | 1 | — |
| 31 | 55518 | Air Pipe Assembly | 1 | — |
| 32 | F99670 | Locating Dowel Pin | 2 | — |
| 33 | F96037 | Compression Spring | 2 | — |
| 34 | F96141 | Spring Pressure Cover | 2 | — |
| 35 | GB21-76 | Small Hexagon Head Bolt M8×12 (GB21-76) | 1 | — |
| 36 | GB859-76 | Spring Washer 8 (GB859-76) | 1 | — |
| 37 | 15276 | Breather Plug | 1 | — |
| 38 | C03004 | Stopping Screw | 1 | — |
| 39 | GB879-76 | Pin 6×36.5 (GB879-76) | 1 | — |
| 40 | F99702 | Neutral Switch Dowel Pin | 1 | — |
| 41 | 990.12.71.0041 | Pressure Switch | 1 | — |
| 42 | Q72318T3 | Gasket | 1 | — |
| 43 | 15899 | Switch Actuating Pin | 1 | — |
| 44 | C03015 | Gasket | 1 | — |
| 45 | 791.00.71.0068 | Pressure Switch | 1 | — |
| 46 | F99672 | End Gasket | 1 | — |
| 47 | F96140 | Gasket | 2 | — |
| 48 | F96036 | Compression Spring | 1 | — |
| ——END—— | ||||
No. |
Part No. |
Name |
Qty. |
Remarks |

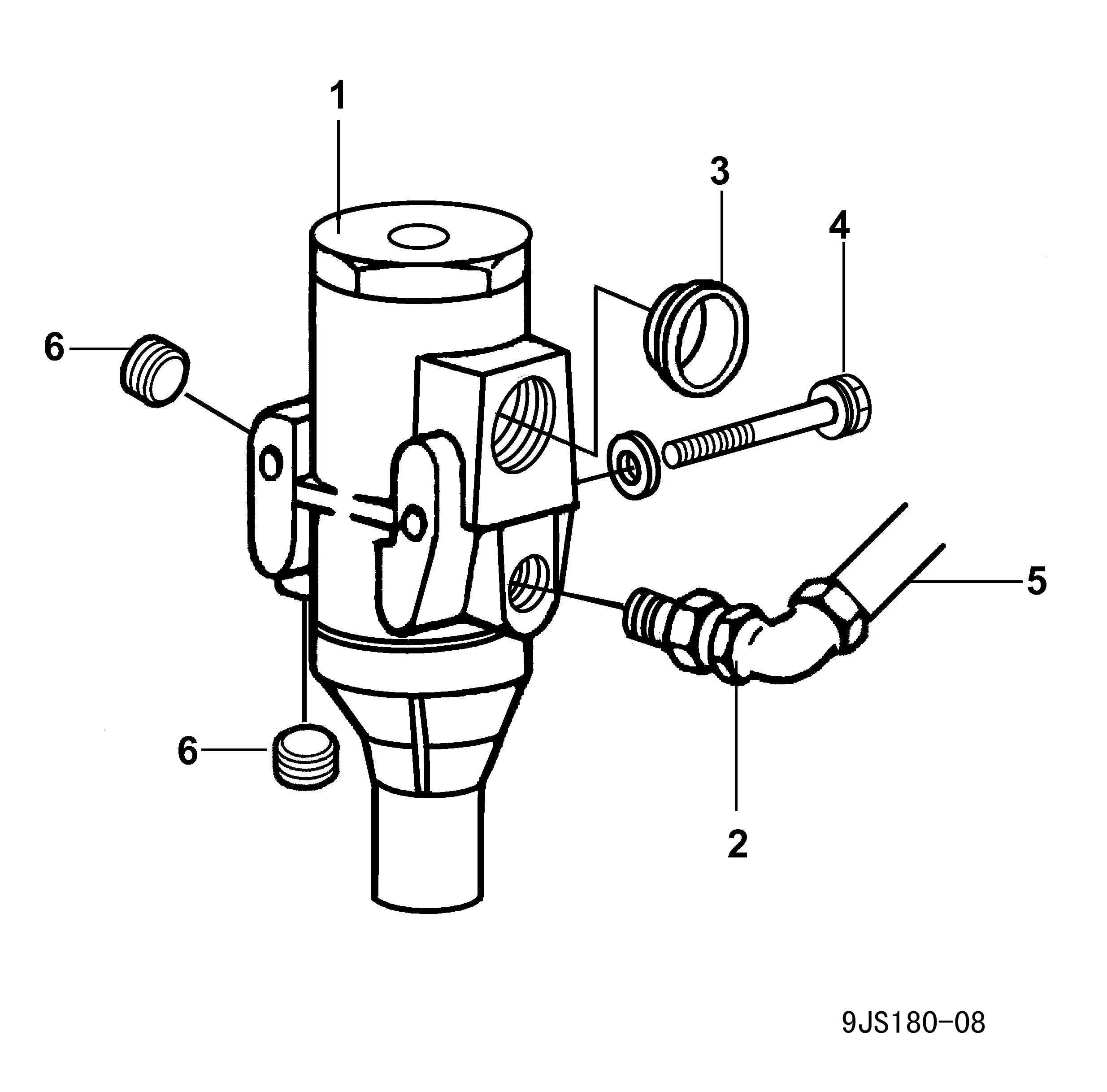

| 1 | A-4740 | Air Filter Regulator | 1 | — |
| 2 | 12845 | 90° Elbow Pipe Fitting | 1 | — |
| 3 | 54015 | CA-Type Bowl Plug | 1 | — |
| 4 | GB30-76 | Hexagon Head Bolt M6×60 (GB30-76) | 2 | — |
| 5 | 55518 | Air Pipe Assembly | 1 | — |
| 6 | Q618B01 | Hexagon Head Tapered Plug | 2 | — |
| ——END—— | ||||
No. |
Part No. |
Name |
Qty. |
Remarks |

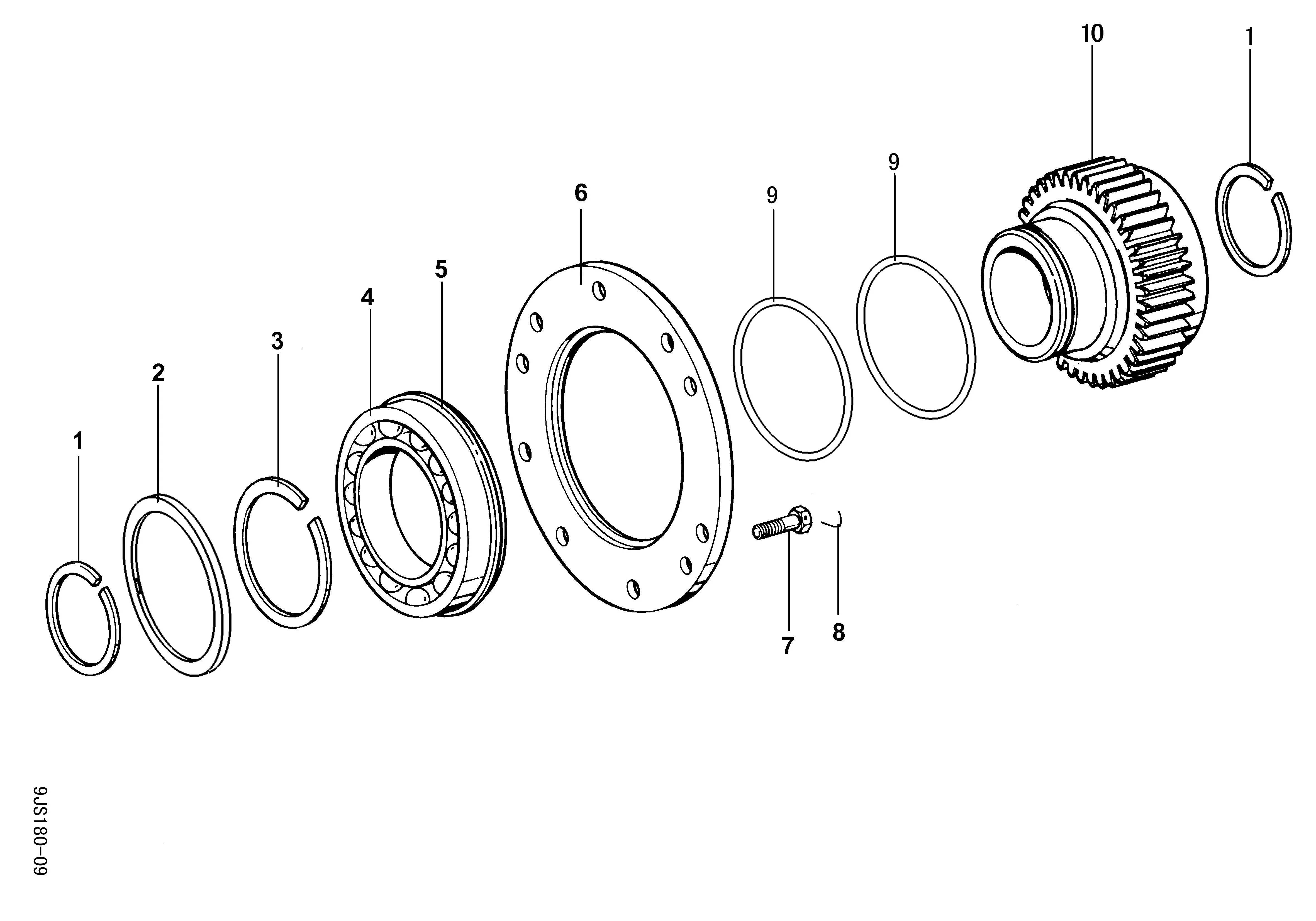

| 1 | 16763 | Retaining Ring | 2 | — |
| 2 | C01033 | Retaining Ring for Retainer | 1 | — |
| 3 | 16628 | Retaining Ring | 1 | — |
| 4 | 50118 | Single-Row Radial Ball Bearing with Snap Groove | 1 | — |
| 5 | C01019 | Retaining Ring | 1 | — |
| 6 | 16138 | Auxiliary Case Bearing Locating Disk | 1 | — |
| 7 | GB25-76 | Small Hexagon Head Bolt with Hole in Head M10×22 (GB25-76) | 6 | — |
| 8 | 1819 | Iron Wire | As Required | — |
| 9 | 17453 | O-Ring | 2 | — |
| 10 | JS180-1707030 | Auxiliary Case Drive Gear | 1 | — |
| ——END—— | ||||
No. |
Part No. |
Name |
Qty. |
Remarks |
| 1 | JS180-1707105 | Auxiliary Case Main Shaft | 1 | — |
| 2 | A-C09005 | High/Low Gear Synchronizer Assembly | 1 | — |
| 3 | JS180-1707107 | Auxiliary Case Main Shaft Washer | 1 | — |
| 4 | JS180-1707106 | Auxiliary Case Main Shaft Reduction Gear | 1 | — |
| 5 | JS180-1707108 | Auxiliary Case Main Shaft Gear Pressure Plate | 1 | — |
| 6 | F96006 | Flange Nut | 1 | — |
| ——END—— | ||||
No. |
Part No. |
Name |
Qty. |
Remarks |
| 1 | 42307E | Short Cylindrical Roller Bearing | 2 | — |
| 2 | JS180-1707047 | Auxiliary Case Countershaft Welded Assembly | 2 | — |
| 3 | 192311E | Short Cylindrical Roller Bearing | 2 | — |
| 4 | GB305-82 | Retaining Ring (GB305-82) | 2 | — |
| 5 | JS180-1707051 | Retaining Ring | 2 | — |
| ——END—— | ||||
No. |
Part No. |
Name |
Qty. |
Remarks |
| 1 | 14335 | Rear Cover Gasket | 1 | — |
| 2 | JS180-1707015 | Rear Cover Housing | 1 | — |
| 3 | JS180-1707053 | Auxiliary Case Countershaft Bearing Cover Gasket | 1 | — |
| 4 | JS180-1707052 | Auxiliary Case Countershaft Bearing Cover | 2 | — |
| 5 | 14334 | Rear Cover Locating Pin | 1 | — |
| 6 | A-C09008 | Bolt Assembly | 8 | — |
| 7 | JS180-1707109 | Tapered Roller Bearing | 1 | — |
| 8 | JS180-1707156 | Auxiliary Case Main Shaft Rear Bearing Cover Gasket | 1 | — |
| 9 | F91054 | Speedometer Driving Gear | 1 | — |
| 10 | JS180-1707154 | Output Shaft Rear Bearing Cover | 1 | — |
| 11 | GB5782-86 | Hexagon Head Bolt M10×75 (GB5782-86) | 5 | — |
| 12 | A-C09009 | Bolt Assembly | 1 | — |
| 13 | F91055 | Speedometer Driven Gear | 1 | — |
| 14 | F93060 | Speedometer Connector Assembly | 1 | — |
| 15 | X11412 | Speedometer Protective Sleeve | 1 | — |
| 16 | F99902 | Output Flange | 1 | — |
| 17 | Z25516 | Locating Ring | 1 | — |
| 18 | GB21-76 | Small Hexagon Head Bolt M10 (GB21-76) | 18 | — |
| 19 | 7992 | Speedometer Driven Gear Bushing | 1 | — |
| 20 | F96119 | Dust Cover | 1 | — |
| 21 | 19109 | Oil Seal | 1 | — |
| 22 | C01032 | Main Shaft Rear Bearing Cover Oil Seal | 1 | — |
| 23 | HG4-333-66 | O-Ring (HG4-333-66) | 1 | — |
| 24 | F96005 | Washer | 1 | — |
| ——END—— | ||||
No. |
Part No. |
Name |
Qty. |
Remarks |
| 1 | GB32.3-88 | Hexagon Head Bolt with Hole in Head M12×1.25×50 (GB32.3-88) | 2 | — |
| 2 | 16775 | Auxiliary Case Shift Fork | 1 | — |
| 3 | 14347 | Gasket | 1 | — |
| 4 | 16778 | Range Gear Cylinder | 1 | — |
| 5 | GB5782-86 | Small Hexagon Head Bolt M10×32 (GB5782-86) | 4 | — |
| 6 | 16778 | Range Gear Shift Fork Shaft | 1 | — |
| 7 | 14765 | O-Ring | 1 | — |
| 8 | 14341 | Range Gear Cylinder Piston | 1 | — |
| 9 | 14345 | O-Ring | 1 | — |
| 10 | 14344 | O-Ring | 1 | — |
| 11 | 14349 | Cylinder Head Gasket | 1 | — |
| 12 | GB890-80 | Hexagon Thin Nut with Nylon Ring Lock M16×1.5 (GB890-80) | 1 | — |
| 13 | F99857 | Auxiliary Case Shift Cylinder Head | 1 | — |
| 14 | GB21-76 | Small Hexagon Head Bolt M10×32 (GB21-76) | 4 | — |
| 15 | 791.00.71.0069 | Pressure Switch | 1 | — |
| 16 | X11511 | Corrugated Copper Washer | 4 | — |
| 17 | 12880 | 45° Elbow Pipe Fitting | 1 | — |
| 18 | 12769 | Male Thread Pipe Fitting | 1 | — |
| 19 | C03052 | Tee Pipe Fitting NPT1/8 | 1 | — |
| 20 | Q618B01 | Square Head Tapered Plug NPT1/8 | 1 | — |
| ——END—— | ||||
No. |
Part No. |
Name |
Qty. |
Remarks |
| 1 | 1684 | Gasket | 1 | — |
| 2 | 16656 | Countershaft Brake Housing | 1 | — |
| 3 | 16658 | Countershaft Brake Piston | 1 | — |
| 4 | GB879-76 | Elastic Cylindrical Pin 6×16 (GB879-76) | 1 | — |
| 5 | 16660 | O-Ring | 1 | — |
| 6 | 16661 | Countershaft Brake Piston Cover Gasket | 1 | — |
| 7 | 16659 | Countershaft Brake Piston Cover | 1 | — |
| 8 | GB21-76 | Small Hexagon Head Bolt M10×32 (GB21-76) | 6 | — |
| 9 | 54010 | CA-Type Bowl Plug | 1 | — |
| 10 | GB93-76 | Spring Washer | 8 | — |
| 11 | GB21-76 | Small Hexagon Head Bolt M10×55 (GB21-76) | 2 | — |
| ——END—— | ||||
Note: All Above Data are Just for Referenece, All Data Might Change Without Notices or Update, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
Engine Sale Manual
Installation Drawing
Installation Manual
Operation Manual
Parts Catalogue
