Fast 8JS118 MT Parts
FAST 8JS118 transmission has 8 forward gears, the gear ratio steps are arranged reasonably, and has very outstanding fuel economy performance. With mechanical structure design and integrated with a synchronizer,and the maximum input speed is 2600 RPM. The length of the 8JS118 transmission is 821.3 mm. The 8JS118 manual transmission has 8 gears, and each gear has a different reduction ratio. The 1st gear reduction ratio is 11.396, the 2nd gear reduction ratio is 7.943, the 3rd gear reduction ratio is 5.626, the 4th gear reduction ratio is 4.062, the 5th gear reduction ratio is 2.806, the 6th gear reduction ratio is 1.956, the 7th gear reduction ratio is 1.385, the 8th gear reduction ratio is 1.000, and the reverse gear 1 ratio is 11.347. The 8JS118 manual transmission has an input torque range of 1180 N.m.
FAST 8-speed MT series transmission have different models, with code J in the model name means mechanical transmission, with code S in the model name means transmission with Double Intermediate Shaft design, with code T in the model name means transmission integrated with synchronizer.
DuraMac provides one-stop solutions covers from pre-design to components supply, from installation to commissioning, from pre-sales communication to after-sales service support.
With affordable Chinese level prices, DuraMac provide abundant premium powertrain options to customers that widely used in buses, coaches, trucks, tractors, trailers and special vehicles, speed up process from vehicle design to prototype manufacturing and significantly decrease developing costs.
Advantages of Fast 8JS118 MT Parts
-
It is synchronized with CMI’ advanced design and sophisticated manufacturing, adapts to harsh working conditions, and has high-intensity and heavy-duty work capabilities.
-
The Holset wastegate valve makes the low speed performance more perfect and the power performance better.
-
The cylinder block and cylinder head adopt integrated design to prevent the occurrence of engine water and oil leakage. The parts are 40% less than other similar engines, and the failure rate is greatly reduced.
-
The cylinder liner adopts a platform mesh honing design, which effectively prevents oil leakage with a perfect geometric structure, and adopts advanced technology such as new piston ring components and gasket crimping molding to reduce oil loss.
-
Using forged steel camshaft and crankshaft, high-strength cylinder design, many parts are cast on the cylinder, with high rigidity, high pressure resistance, good reliability and longer service life.
Technical Specifications
Basic Introduction of Shaanxi Fast 8JS118 MT
| Transmission Model: | 8JS118 |
| Transmission Application: | Manual Transmission |
| Input Torque: | 1180 N.m |
| Maximum Speed: | 2600 RPM |
| Installation length: | 821.3 mm |
| Weight Iron/Al Alloy: | 260 Kg |
| Fuel Quantity: | 13 L |
| Speed Ratio: | 11.396-1 |
| Lead Time: | 15-30 Working Days |
| Payment Terms: | T/T ,L/C |
Search by Part No. or Part Name
Click Kit Name to Check Part List

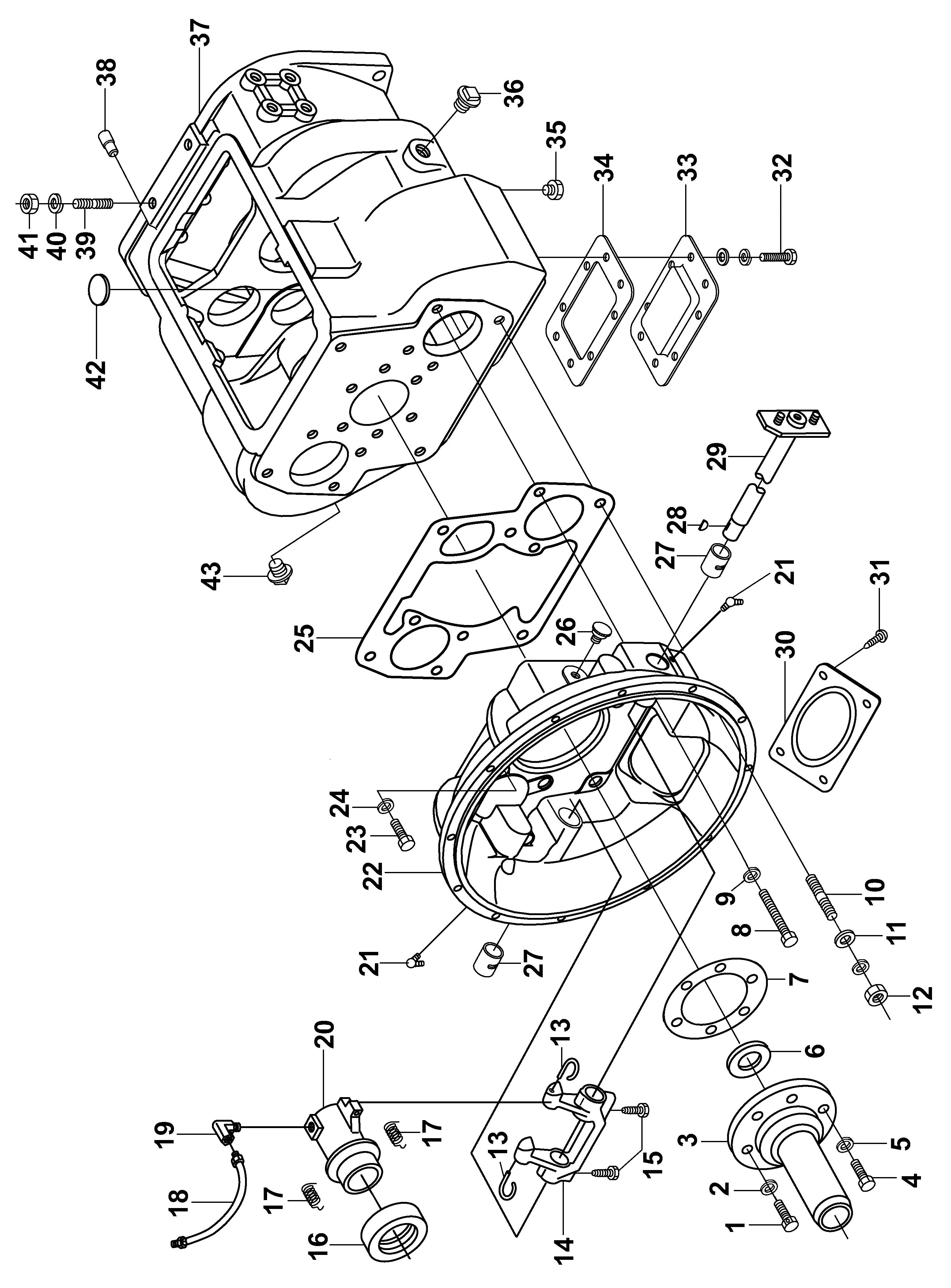

- Clutch and Transmission Housing Assembly

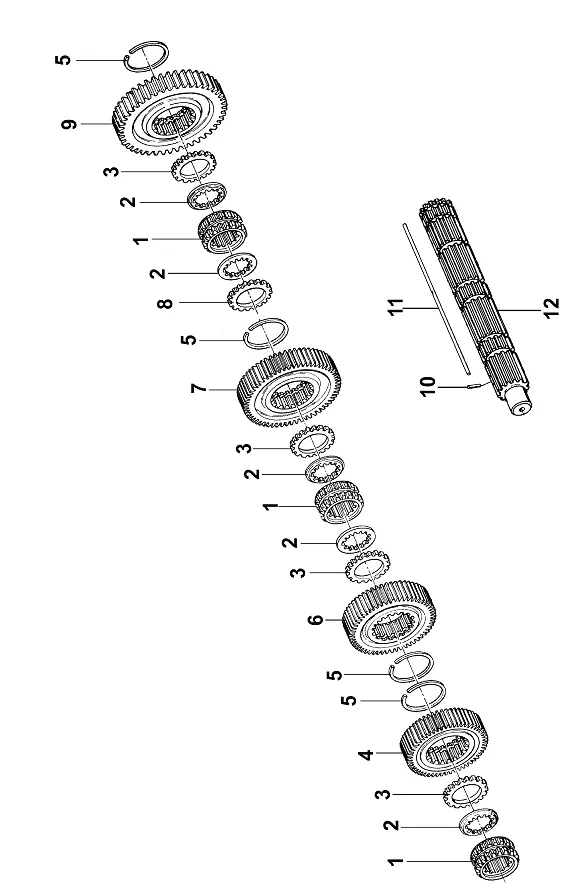

- Second Shaft Assembly
- Left and Right Intermediate Shaft Assembly
- One Shaft Assembly

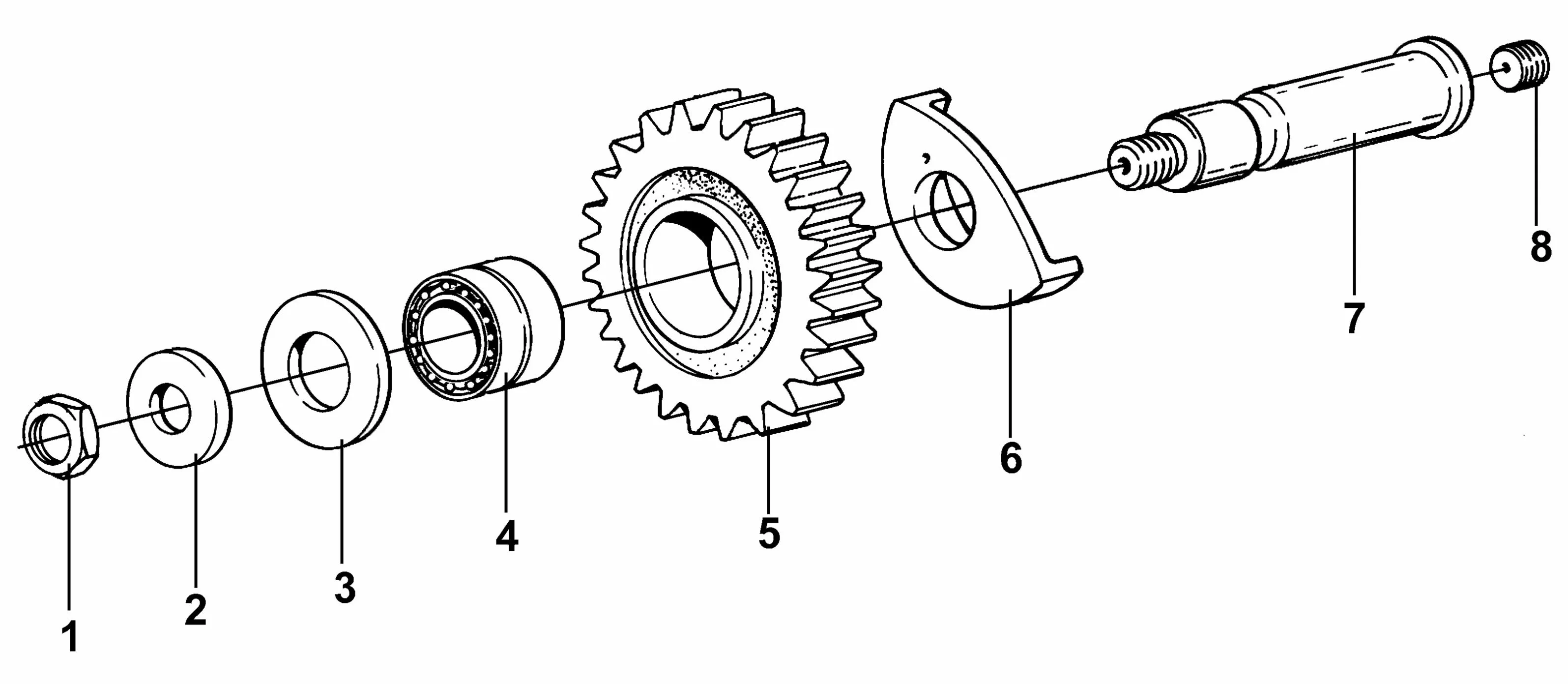

- Reverse Gear Intermediate Shaft Assembly

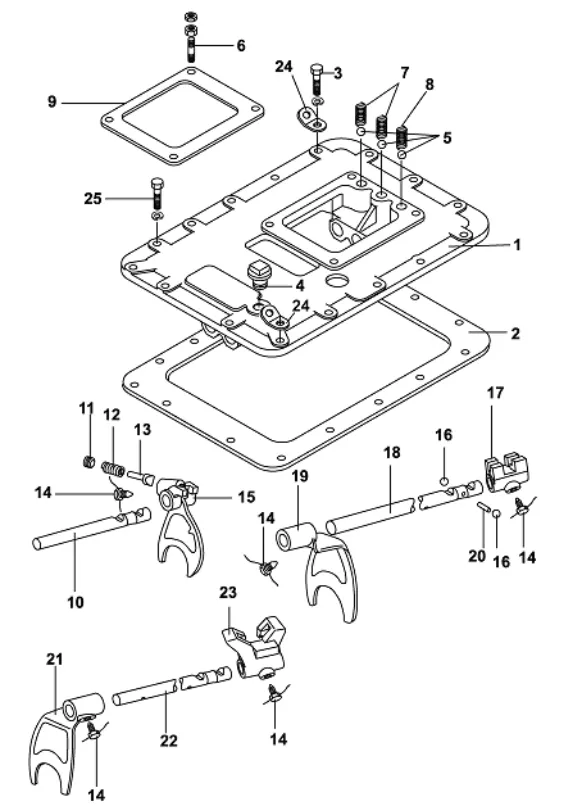

- Upper Cover Assembly
- Control Device Assembly

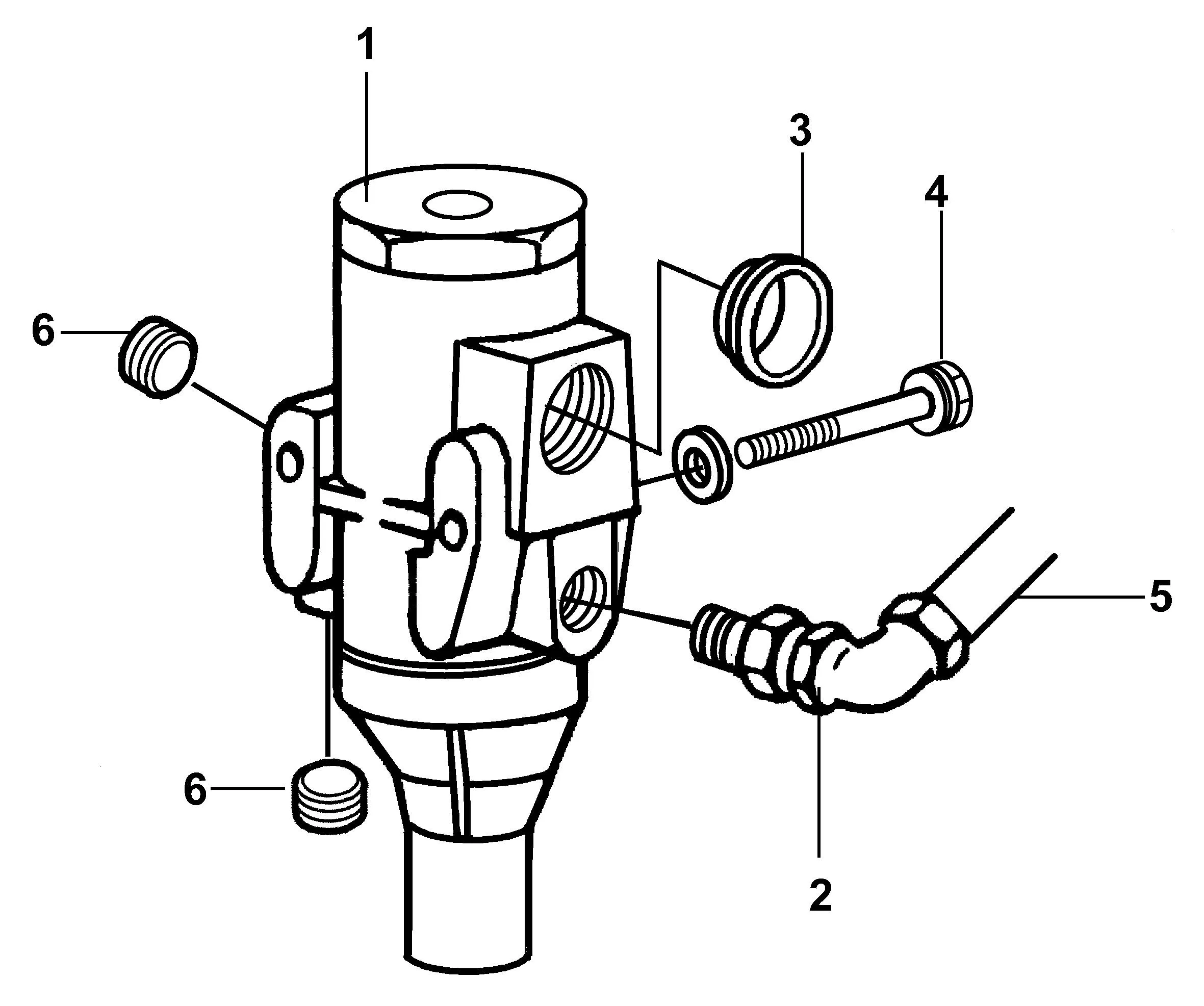

- Air Filter Regulator Assembly

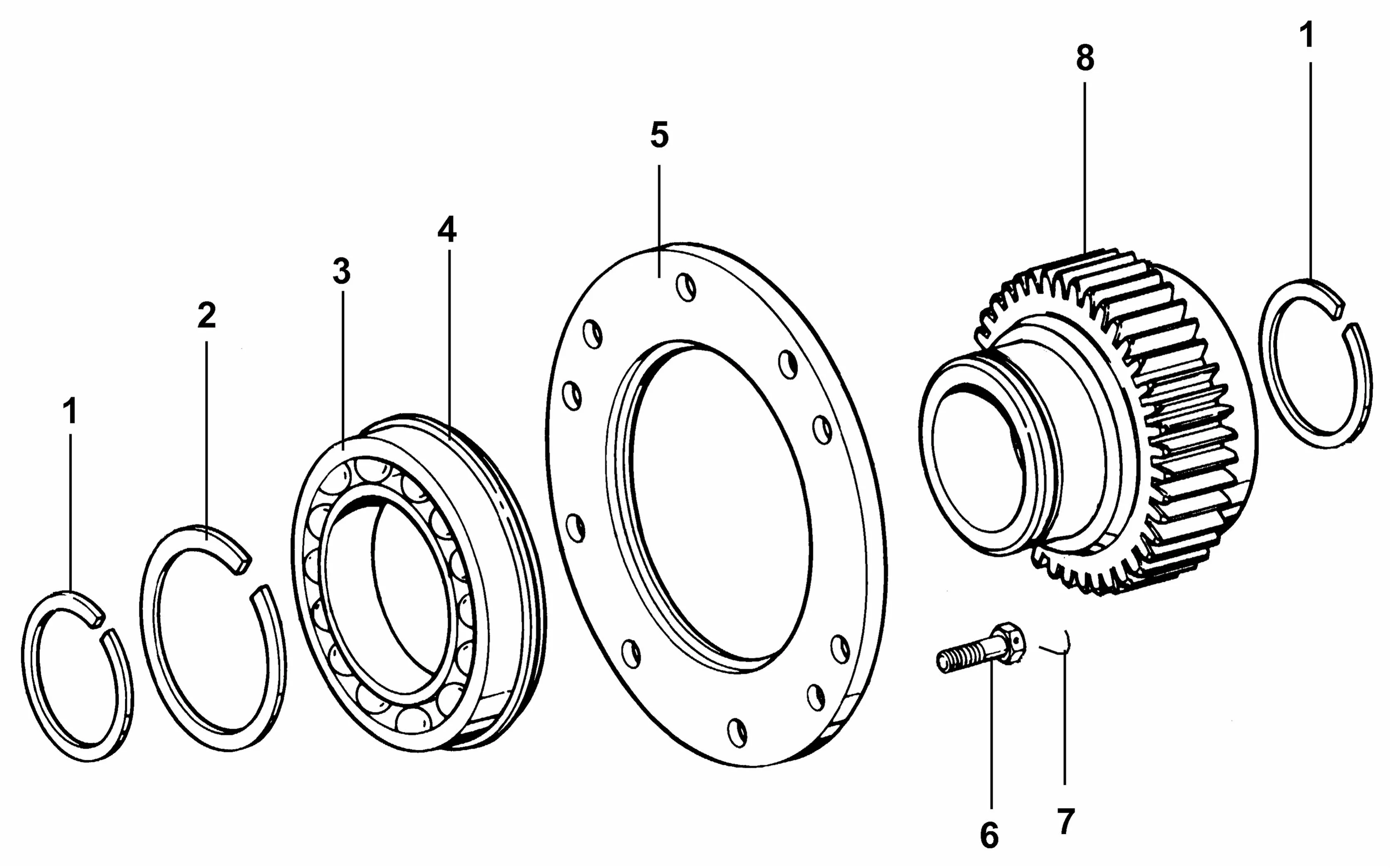

- Auxiliary Box Drive Gear Assembly
- Auxiliary Gearbox Main Shaft Assembly
- Auxiliary Box Left and Right Intermediate Shaft
- Rear Cover Assembly
- Auxiliary Box Cylinder Assembly
- Intermediate Shaft Brake Assembly
No. |
Part No. |
Name |
Qty. |
Remarks |
| 1 | Q1701032 | Hexagon Head Bolt with Hole on Head (M10×32) | 2 | — |
| 2 | GB93-87 | Spring Washer (Size 10) | 2 | — |
| 3 | F91409 | First Shaft Bearing Cover | 1 | — |
| 4 | GB5782-86 | Hexagon Head Bolt (M10×32) | 4 | — |
| 5 | GB93-87 | Spring Washer (Size 10) | 4 | — |
| 6 | F91410 | Oil Seal for First Shaft Bearing Cover | 1 | — |
| 7 | 14311 | Gasket for First Shaft Bearing Cover | 1 | — |
| 8 | GB5783-86 | Small Hexagon Head Bolt (M12×90) | 2 | — |
| 9 | GB93-87 | Spring Washer (Size 12) | 2 | — |
| 10 | C01056 | Stud Bolt | 6 | — |
| 11 | GB95-85 | Washer (Size 16) | 6 | — |
| 12 | GB889-80 | Hexagon Nylon Ring Lock Nut (M16×1.5) | 6 | — |
| 13 | 9293 | Bearing Return Spring | 2 | — |
| 14 | 12817 | Clutch Release Fork | 1 | — |
| 15 | X-7-603 | Hexagon Head Bolt | 2 | — |
| 16 | 996914 | Angular Contact Clutch Release Ball Bearing | 1 | — |
| 17 | 4425 | Tension Spring | 2 | — |
| 18 | 51016 | Oil Pipe Assembly | 1 | — |
| 19 | 12880 | 45° Elbow Pipe Joint | 1 | — |
| 20 | C04002 | Clutch Release Bearing Housing | 1 | — |
| 21 | Q701B45 | Angled Grease Fitting | 2 | — |
| 22 | 15410 | SAE 1# Clutch Housing | 1 | — |
| 23 | GB5782-86 | Small Hexagon Head Bolt (M12×38) | 2 | — |
| 24 | GB93-87 | Spring Washer | 2 | — |
| 25 | 20822 | Clutch Housing Gasket | 1 | — |
| 26 | GB1154-79A-6 | Screw-On Oil Cup (Type A-6, M10×1) | 1 | — |
| 27 | 8677 | Bushing for Clutch Fork Shaft | 1 | — |
| 28 | X-6-11 | Woodruff Key | 1 | — |
| 29 | A-C04009-1 | Clutch Release Fork Shaft Assembly | 1 | — |
| 30 | 1565 | Clutch Hand Hole Cover | 1 | — |
| 31 | GB21-76 | Small Hexagon Head Bolt (M8×12) | 4 | — |
| 32 | GB21-76 | Small Hexagon Head Bolt (M12×25) | 8 | — |
| 33 | 16596 | Bottom Power Take-Off Window | 1 | — |
| 34 | 16929 | Gasket for Bottom Power Take-Off Window | 1 | — |
| 35 | Q614B06 | Square Head Tapered Plug (NPT 3/4) | 1 | — |
| 36 | Q614B12 | Square Head Tapered Plug | 1 | — |
| 37 | JS100-1701015 | Transmission Housing | 1 | — |
| 38 | 14334 | Rear Cover Locating Pin | 2 | — |
| 39 | Q1231630 | Stud Bolt | 2 | — |
| 40 | GB93-76 | Spring Washer (Size 16) | 2 | — |
| 41 | GB52-76 | Hexagon Nut (M16×1.5) | 2 | — |
| 42 | 14373 | Round Magnet | 3 | — |
| 43 | Q61304 | Square Groove Tapered Plug Screw | 1 | — |
| ——END—— | ||||
No. |
Part No. |
Name |
Qty. |
Remarks |
| 1 | 16118 | Second Shaft Sliding Sleeve | 3 | — |
| 2 | 18701 | Second Shaft Gear Adjustment Washer | 5 | — |
| 3 | 14749 | Second Shaft Gear Spline Washer | 4 | — |
| 4 | 16748 | Second Shaft 3rd Gear | 1 | — |
| 5 | 14750 | Retaining Ring | 4 | — |
| 6 | JS118-1701130 | Second Shaft 2nd Gear | 1 | — |
| 7 | JS100-1701112 | Second Shaft 1st Gear | 1 | — |
| 8 | JS100-1701113 | 1st Gear Spline Washer for Second Shaft | 1 | — |
| 9 | JS100-1701111 | Second Shaft Reverse Gear | 1 | — |
| 10 | GB879-86 | Elastic Cylindrical Pin (3×10) | 1 | — |
| 11 | 17109 | Second Shaft Hexagon Key | 1 | — |
| 12 | 18729 | Second Shaft | 1 | — |
| ——END—— | ||||

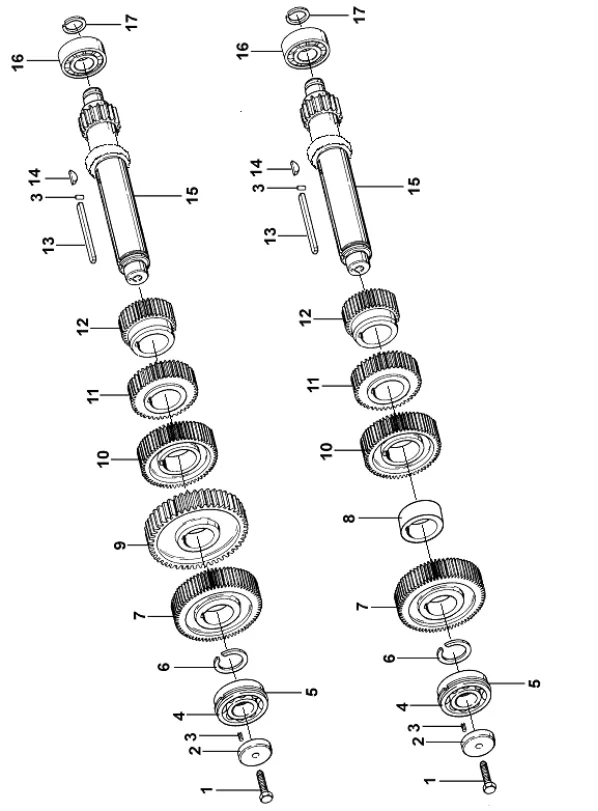

No. |
Part No. |
Name |
Qty. |
Remarks |
| 1 | GB5785-86 | Hexagon Head Bolt (M16×1.5×45) | 2 | — |
| 2 | 19668 | Intermediate Shaft Bearing Baffle | 2 | — |
| 3 | GB879-86 | Elastic Cylindrical Pin (5×14) | 4 | — |
| 4 | 370309Y | Single-Row Radial Ball Bearing | 2 | — |
| 5 | C01021 | Retaining Ring | 2 | — |
| 6 | 19198 | Intermediate Shaft Retaining Ring | 2 | — |
| 7 | JS118-1701056 | Intermediate Shaft Drive Gear | 2 | — |
| 8 | C01026 | Friction Wheel | 1 | — |
| 9 | 16749 | Intermediate Shaft 3rd Gear | 2 | — |
| 10 | JS118-1701050 | Intermediate Shaft 2nd Gear | 2 | — |
| 11 | JS100-1701049 | Intermediate Shaft 1st Gear | 2 | — |
| 12 | 19673 | Intermediate Shaft Square Key | 2 | — |
| 13 | X-6-E | Woodruff Key | 2 | — |
| 14 | JS100-1701048 | Intermediate Shaft | 2 | — |
| 15 | 102308E | Short Cylindrical Roller Bearing | 2 | — |
| 16 | 14317 | Retaining Ring | 2 | — |
| ——END—— | ||||

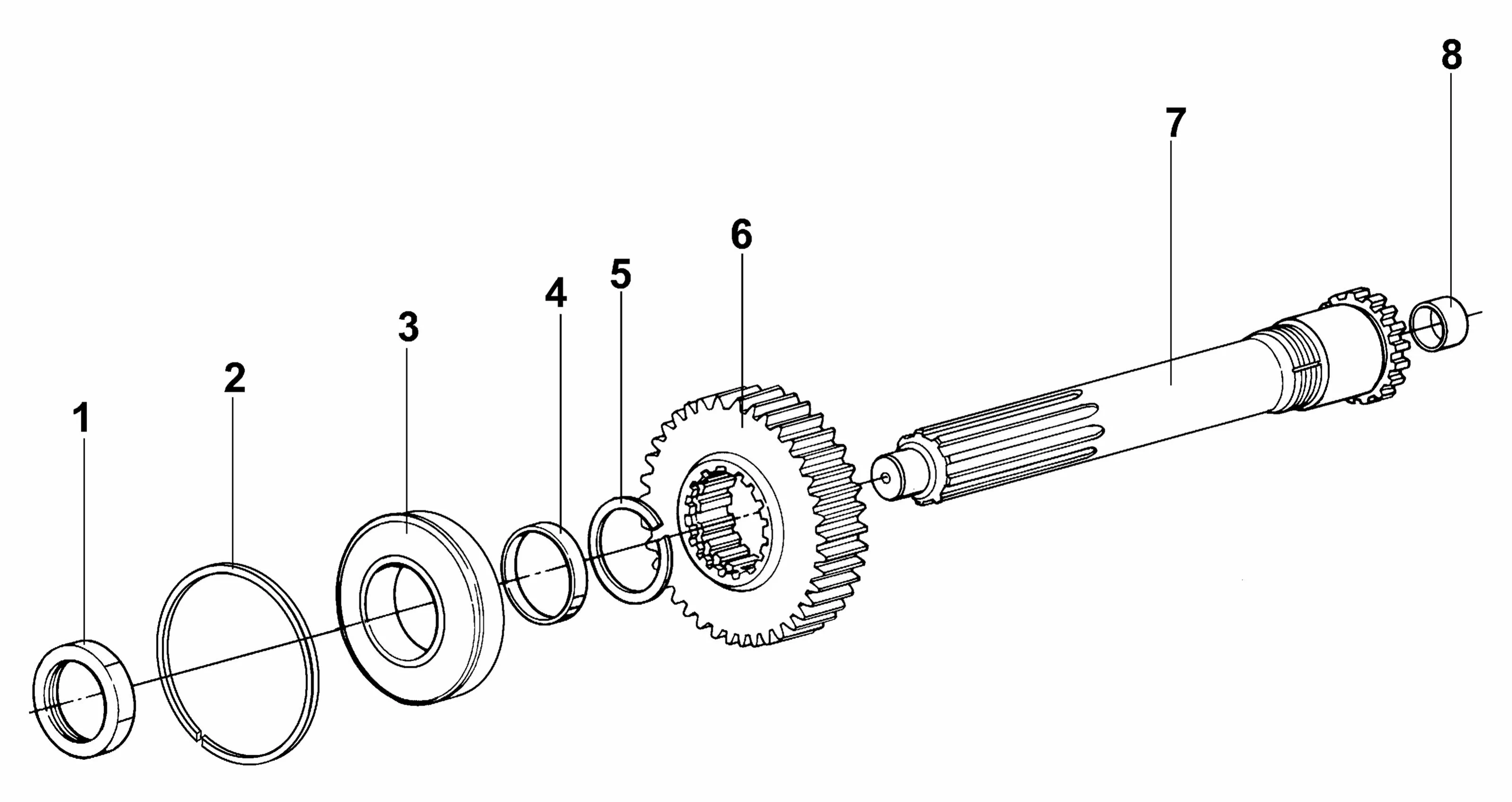

No. |
Part No. |
Name |
Qty. |
Remarks |
| 1 | 8858 | First Shaft Nut | 1 | — |
| 2 | 150212K | Single-Row Radial Ball Bearing with Retaining Groove and Dust Cover on One Side | 1 | — |
| 3 | 16463 | Gear Spacer | 1 | — |
| 4 | 14750 | Retaining Ring | 1 | — |
| 5 | JS118-1701030 | First Shaft Gear | 1 | — |
| 6 | 19694 | First Shaft | 1 | — |
| 7 | 16566 | Second Shaft Guide Sleeve | 1 | — |
| ——END—— | ||||
No. |
Part No. |
Name |
Qty. |
Remarks |
| 1 | GB890-80 | Nut (M16×1.5) | 2 | — |
| 2 | 14283 | Reverse Intermediate Shaft Washer | 2 | — |
| 3 | 14282 | Reverse Thrust Washer | 2 | — |
| 4 | 14287 | Needle Roller Bearing | 2 | — |
| 5 | JS100-1701082 | Reverse Intermediate Gear | 2 | — |
| 6 | JS100-1701083 | Cup-Shaped Reverse Washer | 2 | — |
| 7 | 16405 | Reverse Intermediate Shaft | 2 | — |
| 8 | GB73-85 | Flat-End Set Screw (M12×12) | 2 | — |
| ——END—— | ||||
No. |
Part No. |
Name |
Qty. |
Remarks |
| 1 | F99980 | Upper Cover | 1 | — |
| 2 | 14918 | Upper Cover Gasket | 1 | — |
| 3 | GB5782-86 | Hexagon Head Bolt (M10×35) | 2 | — |
| 4 | Q614B10 | Square Head Tapered Plug Screw | 1 | — |
| 5 | GB308-89 | Steel Ball (12.7) | 3 | — |
| 6 | 11066 | Stud Bolt | 4 | — |
| 7 | F96085 | Compression Spring | 2 | — |
| 8 | F96084 | Compression Spring | 1 | — |
| 9 | 1642 | Control Window Gasket | 1 | — |
| 10 | 16132 | Low-Reverse Fork Shaft | 1 | — |
| 11 | 8968 | Reverse Lock Plug Screw | 1 | — |
| 12 | 8774 | Reverse Lock Spring | 1 | — |
| 13 | F99671 | Reverse Lock Plunger | 1 | — |
| 14 | 3220 | Shift Fork Locking Screw | 5 | — |
| 15 | F99664 | Low-Reverse Fork | 1 | — |
| 16 | GB308-89 | Steel Ball (19.05) | 2 | — |
| 17 | F99588 | 1/2 and 5/6 Gear Guide Block | 1 | — |
| 18 | 16133 | 1st-2nd Gear Fork Shaft | 1 | — |
| 19 | 16135 | 1st-2nd Gear Fork | 1 | — |
| 20 | 1634 | Fork Shaft Interlocking Pin | 1 | — |
| 21 | 16136 | 3rd-4th Gear Fork | 1 | — |
| 22 | 18643 | 3rd-4th Gear Fork Shaft | 1 | — |
| 23 | F99589 | 3/4 and 7/8 Gear Guide Block | 1 | — |
| 24 | 20815 | Lifting Bent Plate | 2 | — |
| 25 | GB5782-86 | Hexagon Head Bolt (M10×32) | 14 | — |
| 26 | JS100-1702012 | Limit Sleeve | 1 | — |
| ——END—— | ||||

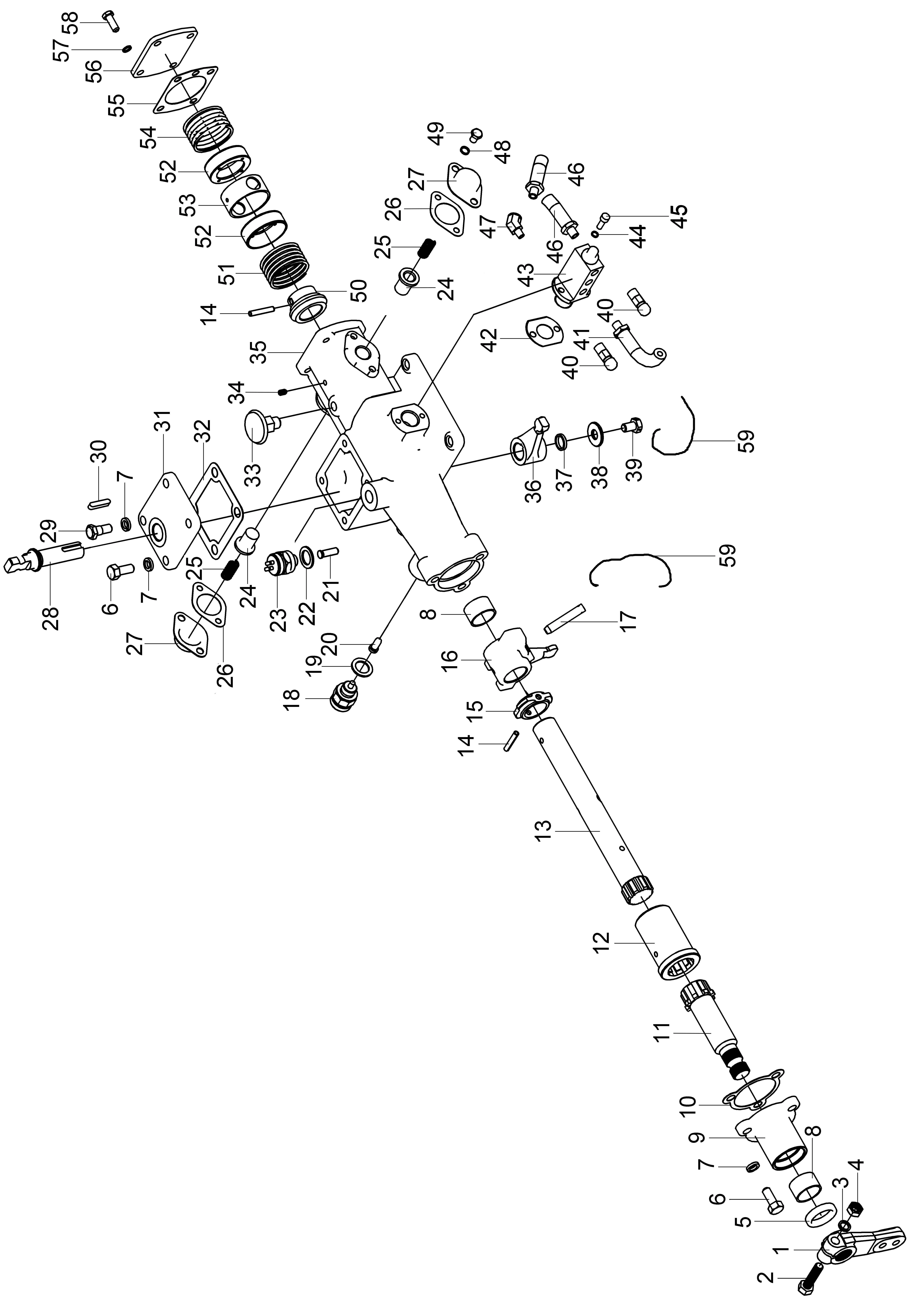

No. |
Part No. |
Name |
Qty. |
Remarks |
| 1 | F96035 | LRC External Shift Arm | 1 | — |
| 2 | GB5785-86 | Small Hexagon Head Bolt (M10×50) | 1 | — |
| 3 | GB93-87 | Washer (Size 10) | 1 | — |
| 4 | GB6171-86 | Small Hexagon Nut (M10×1) | 1 | — |
| 5 | F91444 | Oil Seal | 1 | — |
| 6 | Q150B1025 | Hexagon Head Bolt | 5 | — |
| 7 | Q40310 | Spring Washer | 7 | — |
| 8 | F91345 | Lateral Shift Rod Bushing | 2 | — |
| 9 | C03033-4 | End Cover | 1 | — |
| 10 | C03034-1 | Baffle Gasket | 1 | — |
| 11 | C03032-5 | Shift Connector | 1 | — |
| 12 | C03031-1 | Spline Sleeve | 1 | — |
| 13 | F99679-8 | Lateral Shift Rod | 1 | — |
| 14 | GB879-76 | Elastic Cylindrical Pin (Pin 6×35) | 2 | — |
| 15 | F99681 | Low-Reverse Switch Control Block | 1 | — |
| 16 | F99585-1 | Shift Head | 1 | — |
| 17 | C03030 | Cylindrical Pin | 1 | — |
| 18 | 99012710041 | Pressure Switch (Neutral) | 1 | — |
| 19 | Q72318T5 | Gasket Washer | 1 | — |
| 20 | F99702-1 | Neutral Switch Plunger | 1 | — |
| 21 | 15899 | Switch Actuating Pin | 1 | — |
| 22 | C03015 | Gasket Washer | 1 | — |
| 23 | 79100710068 | Pressure Switch (Reverse) | 1 | — |
| 24 | F99670 | Positioning Plunger | 2 | — |
| 25 | F96037-2 | Compression Spring | 2 | — |
| 26 | F96140 | Gasket | 2 | — |
| 27 | F96141 | Spring Gland | 2 | — |
| 28 | C03038-1 | Selector Connector | 1 | — |
| 29 | C03040-1 | Set Screw | 2 | — |
| 30 | Q5510628 | Flat Key | 1 | — |
| 31 | C03036-1 | Window Cover | 1 | — |
| 32 | C03037-1 | Window Gasket | 1 | — |
| 33 | 15276 | Breather Plug | 1 | — |
| 34 | C03004 | Stop Screw | 1 | — |
| 35 | F96194-6 | Dual H Control Device Housing | 1 | — |
| 36 | C03035-1 | Selector Shift Head | 1 | — |
| 37 | HG4-333-66 | O-Ring Seal (20×2.4) | 1 | — |
| 38 | C03039-1 | Washer | 1 | — |
| 39 | Q170B1016 | Hexagon Head Bolt with Hole on Head | 1 | — |
| 40 | 7935 | Breather Plug | 2 | — |
| 41 | 55521 | Air Pipe Assembly | 1 | — |
| 42 | F91353 | Dual H Valve Gasket | 1 | — |
| 43 | F99660 | Dual H Valve | 1 | — |
| 44 | GB93-76 | Spring Washer (Size 6) | 2 | — |
| 45 | GB70-76 | Hexagon Socket Head Cap Screw (M6×18) | 2 | — |
| 46 | 55506 | Air Pipe Assembly | 2 | — |
| 47 | 12880 | 45° Elbow Pipe Joint | 1 | — |
| 48 | GB859-76 | Spring Washer (Size 8) | 4 | — |
| 49 | GB21-76 | Small Hexagon Head Bolt (M8×12) | 4 | — |
| 50 | F99675 | Positioning Ring | 1 | — |
| 51 | F96036-1 | Compression Spring | 1 | — |
| 52 | F99673 | Spring Seat | 2 | — |
| 53 | F99674 | Spring Spacer Sleeve | 1 | — |
| 54 | F99983-1 | Compression Spring | 1 | — |
| 55 | F99672 | End Pad | 1 | — |
| 56 | F99666 | Side Plate | 1 | — |
| 57 | GB93-76 | Spring Washer (Size 8) | 4 | — |
| 58 | GB21-76 | Small Hexagon Head Bolt (M8×22) | 4 | — |
| 59 | 1819 | Iron Wire (Φ1.2) | As needed | — |
| ——END—— | ||||
No. |
Part No. |
Name |
Qty. |
Remarks |
| 1 | A-4740 | Air Filter Regulator | 1 | — |
| 2 | 12845 | 90° Elbow Pipe Joint | 1 | — |
| 3 | 54015 | CA Cup Plug | 1 | — |
| 4 | GB5782-86 | Hexagon Head Bolt (M6×60) | 2 | — |
| 5 | 55518 | Air Pipe Assembly | 1 | — |
| 6 | Q618B01 | Hexagon Head Tapered Plug Screw | 2 | — |
| ——END—— | ||||
No. |
Part No. |
Name |
Qty. |
Remarks |
| 1 | 16763 | Retaining Ring | 2 | — |
| 2 | 16628 | Retaining Ring | 1 | — |
| 3 | 50118 | Single-Row Radial Ball Bearing with Retaining Groove | 1 | — |
| 4 | C01019 | Retaining Ring | 1 | — |
| 5 | 16138 | Auxiliary Case Bearing Locating Plate | 1 | — |
| 6 | GB32.1-88 | Small Hexagon Head Bolt with Hole on Head (M10×22) | 6 | — |
| 7 | 1819 | Iron Wire | As needed | — |
| 8 | 18869 | Auxiliary Case Drive Gear | 1 | — |
| ——END—— | ||||
No. |
Part No. |
Name |
Qty. |
Remarks |

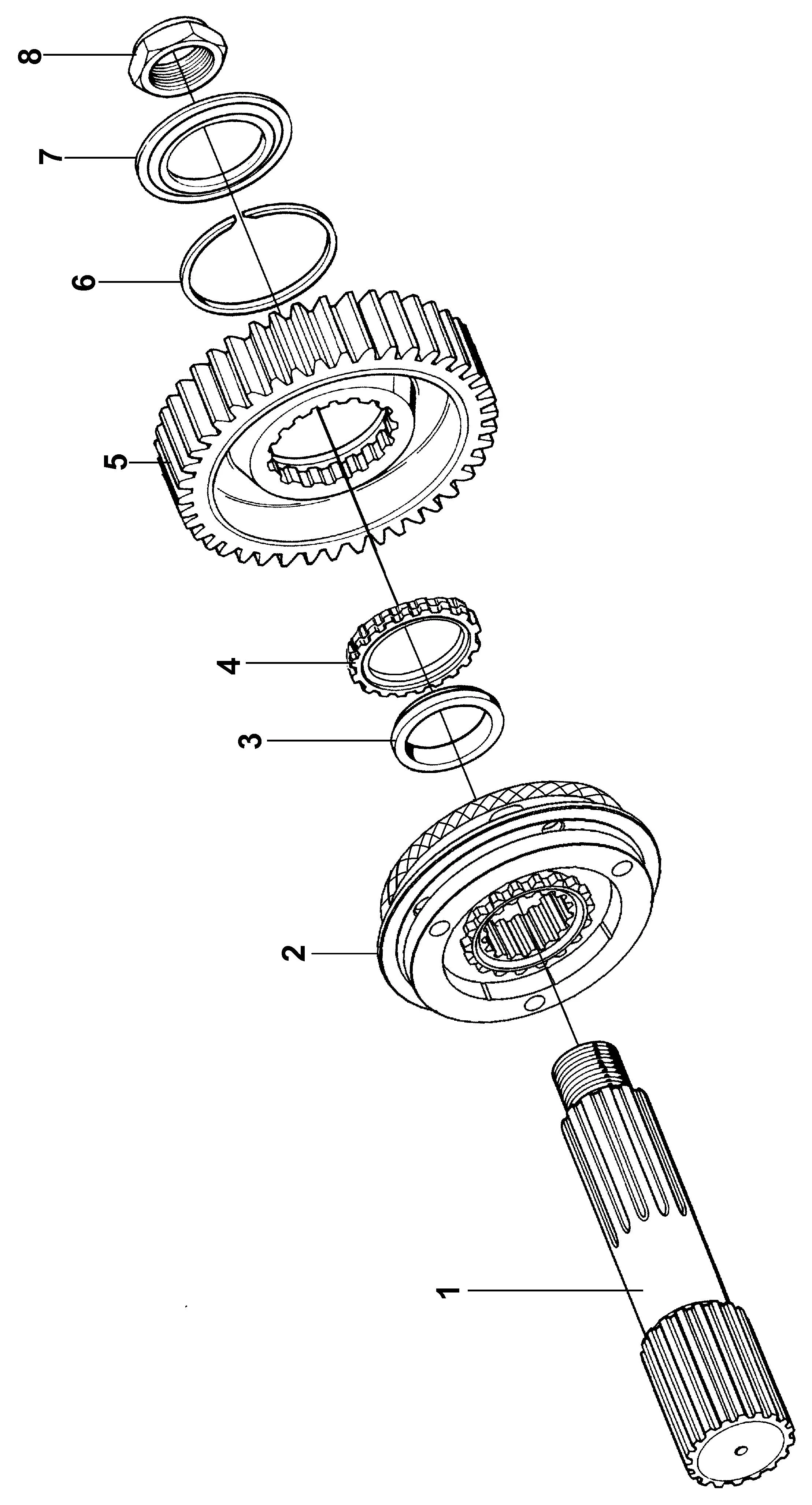

| 1 | F99882 | Auxiliary Case Main Shaft | 1 | — |
| 2 | A-C09005 | High-Low Gear Synchronizer Assembly | 1 | — |
| 3 | 14332 | Auxiliary Case Main Shaft Washer | 1 | — |
| 4 | 14331 | Auxiliary Case Main Shaft Gear Washer | 1 | — |
| 5 | JS118-1707120 | Auxiliary Case Main Shaft Reduction Gear | 1 | — |
| 6 | 14327 | Retaining Ring | 1 | — |
| 7 | 19466 | Auxiliary Case Reduction Gear Washer | 1 | — |
| 8 | F96006 | Flange Nut | 1 | — |
| ——END—— | ||||
No. |
Part No. |
Name |
Qty. |
Remarks |

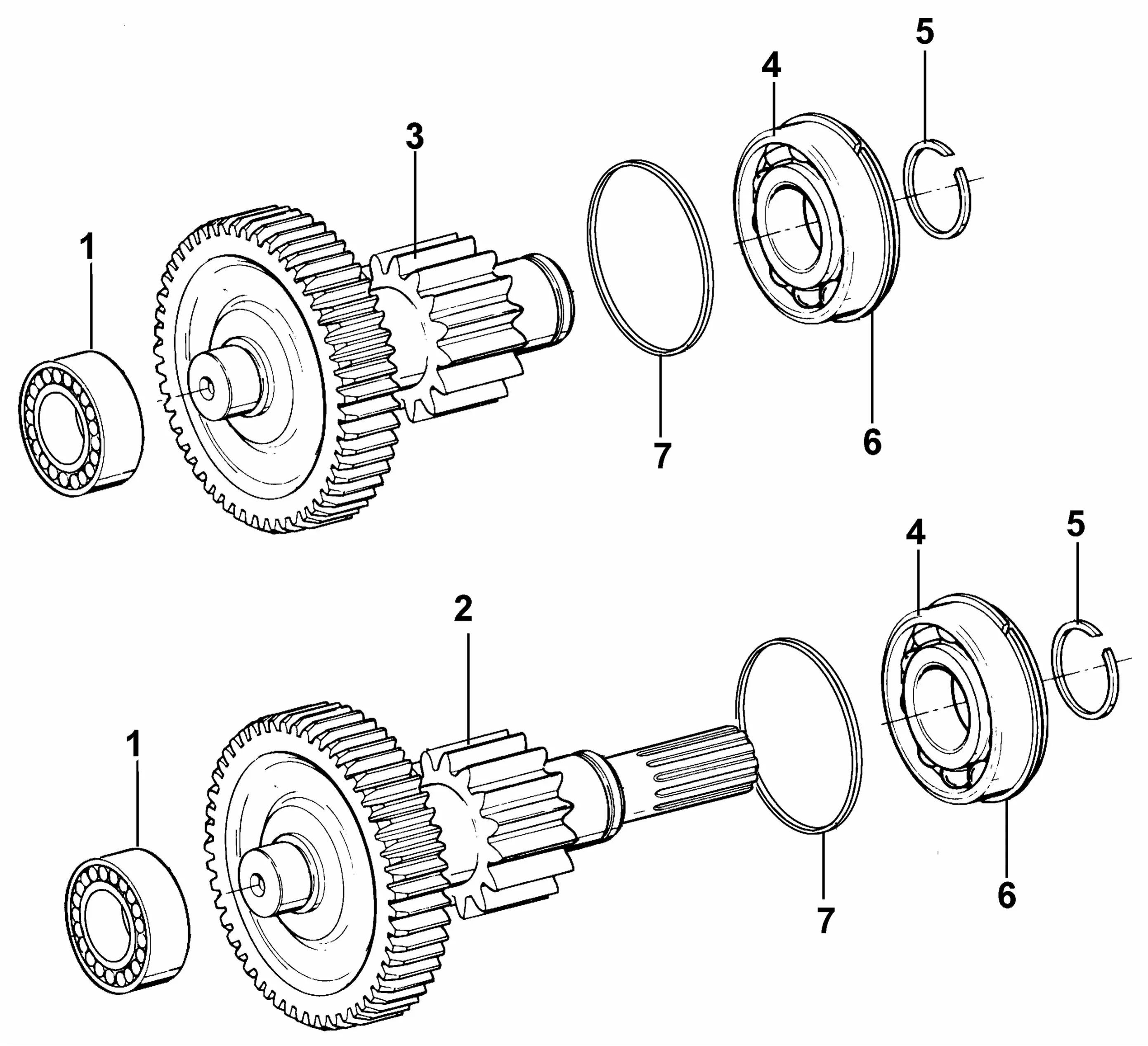

| 1 | 42307E | Short Cylindrical Roller Bearing | 2 | — |
| 2 | JS118-1707047 | Auxiliary Case Extended Intermediate Shaft Welded Assembly | 1 | — |
| 3 | A-C09019 | Auxiliary Case Intermediate Shaft Welded Assembly | 1 | — |
| 4 | 192310E | Short Cylindrical Roller Bearing | 2 | — |
| 5 | 16723 | Retaining Ring | 2 | — |
| 6 | C01020 | Retaining Ring | 2 | — |
| 7 | 17384 | Bearing Washer | 2 | — |
| ——END—— | ||||
No. |
Part No. |
Name |
Qty. |
Remarks |

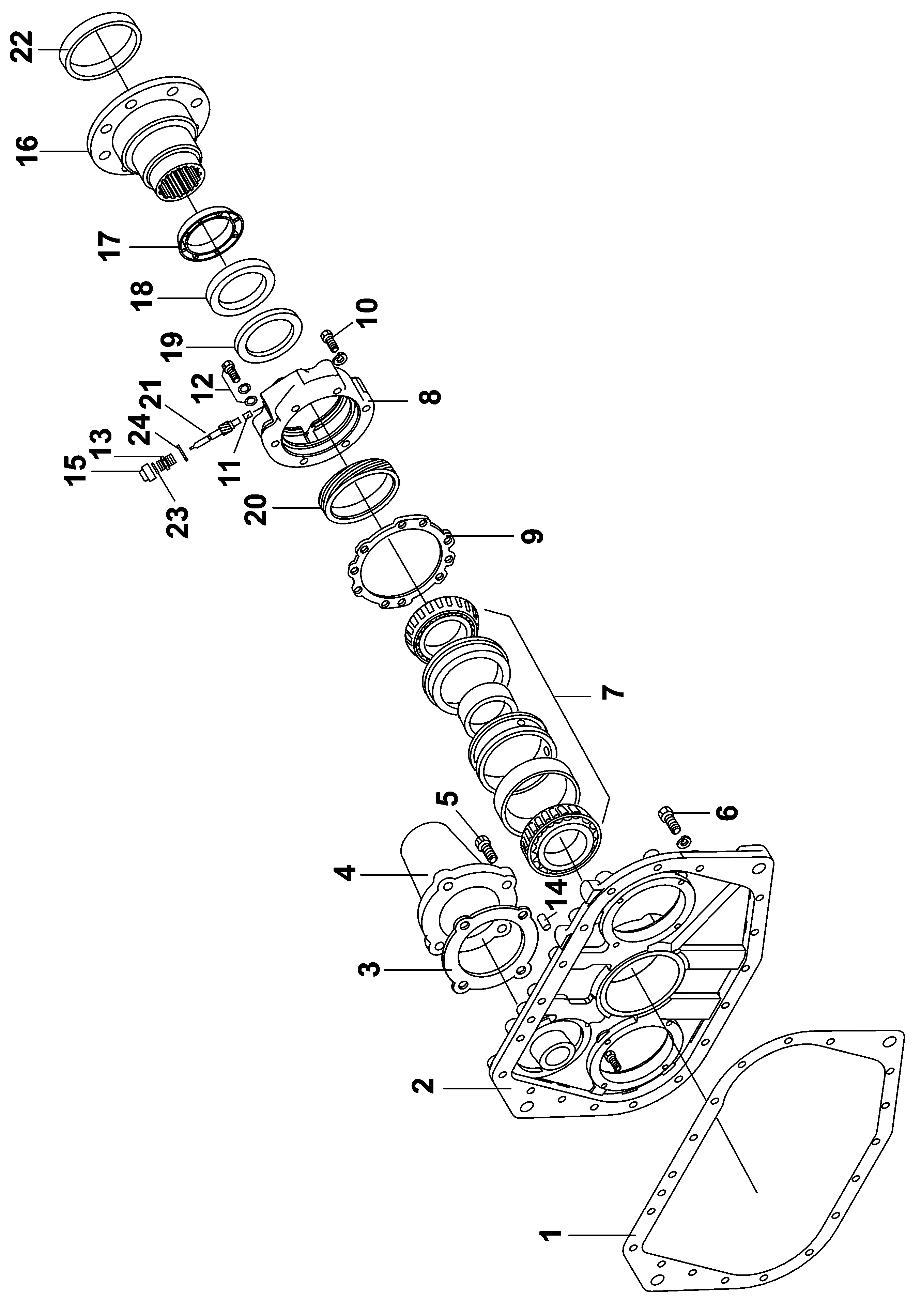

| 1 | 14335 | Rear Cover Gasket | 1 | — |
| 2 | F99975 | Rear Cover Housing | 1 | — |
| 3 | 17352 | Auxiliary Case Intermediate Shaft Bearing Cover Gasket | 1 | — |
| 4 | 17376 | Extended Intermediate Shaft Bearing Cover | 2 | — |
| 5 | A-C09008 | Bolt Assembly | 8 | — |
| 6 | GB5782-86 | Small Hexagon Head Bolt (M10) | 18 | — |
| 7 | 717813 | Tapered Roller Bearing | 1 | — |
| 8 | F99967 | Output Shaft Rear Bearing Cover | 1 | — |
| 9 | 15532 | Auxiliary Case Main Shaft Rear Bearing Cover Gasket | 1 | — |
| 10 | GB5782-86 | Small Hexagon Head Bolt (M10×75) | 5 | — |
| 11 | 7992 | Speedometer Driven Gear Bushing | 1 | — |
| 12 | A-C09009 | Bolt Assembly | 1 | — |
| 13 | A-09018 | Speedometer Connector Sub-Assembly | 1 | — |
| 14 | 14334 | Rear Cover Locating Pin | 1 | — |
| 15 | X11412 | Speedometer Protective Sleeve | 1 | — |
| 16 | F99902 | Output Flange | 1 | — |
| 17 | F96119 | Dust Cover | 1 | — |
| 18 | 19109 | Oil Seal | 1 | — |
| 19 | C01032 | Main Shaft Rear Bearing Cover Oil Seal | 1 | — |
| 20 | F91054 | Speedometer Driving Gear | 1 | — |
| 21 | F91055 | Speedometer Driven Gear | 1 | — |
| 22 | Z25516 | Positioning Ring | 1 | — |
| 23 | HG4-333-66 | O-Ring | 1 | — |
| 24 | F96005 | Gasket | 1 | — |
| ——END—— | ||||
No. |
Part No. |
Name |
Qty. |
Remarks |

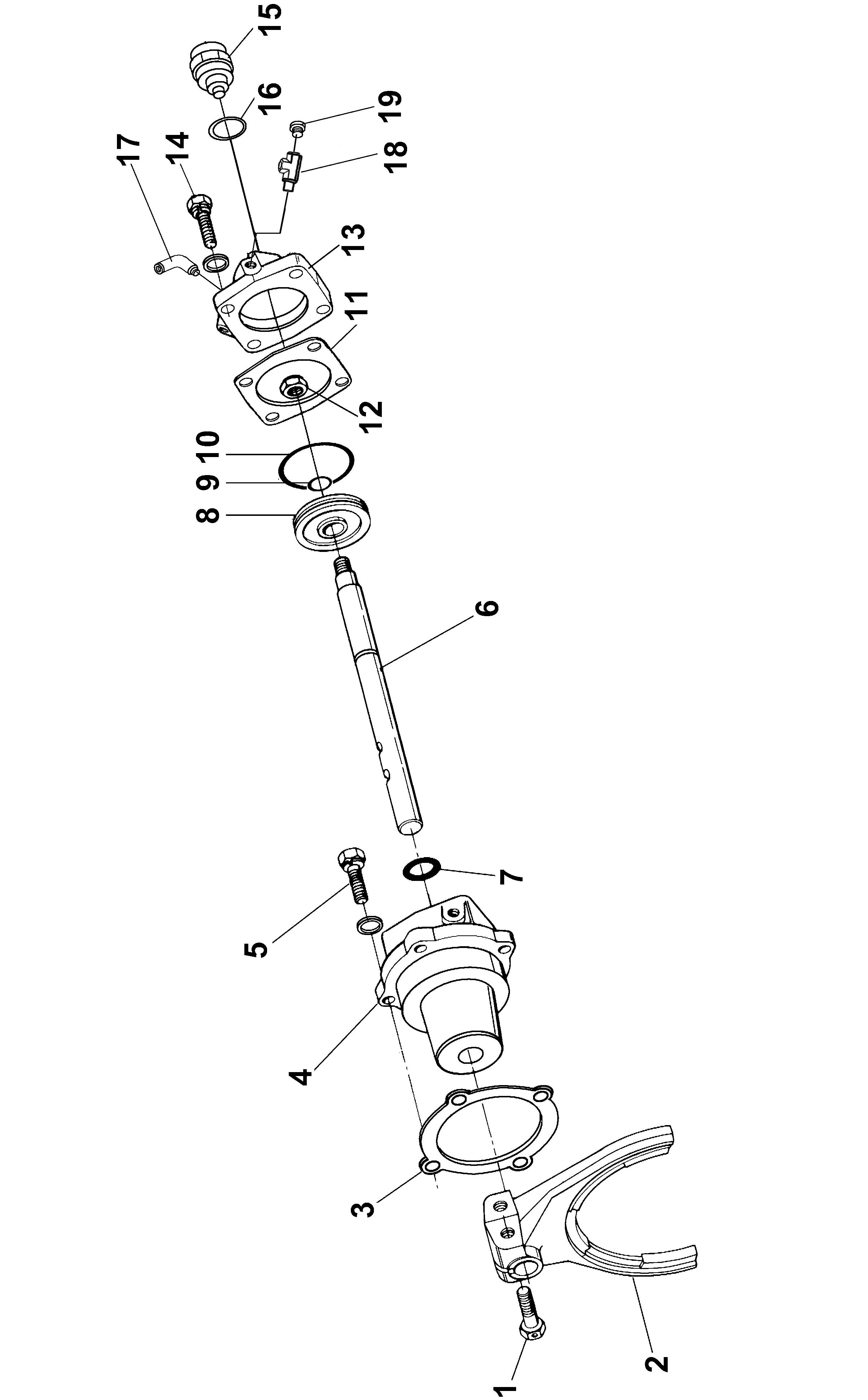

| 1 | GB32.3-88 | Small Hexagon Head Bolt with Hole on Head (M12×1.25×50) | 2 | — |
| 2 | 16775 | Auxiliary Case Fork | 1 | — |
| 3 | 14347 | Gasket Seal | 1 | — |
| 4 | 16778 | Range Gear Cylinder | 1 | — |
| 5 | GB5782-86 | Small Hexagon Head Bolt (M10×32) | 4 | — |
| 6 | 16993 | Range Gear Fork Shaft | 1 | — |
| 7 | 14765 | O-Ring | 1 | — |
| 8 | 14341 | Range Gear Cylinder Piston | 1 | — |
| 9 | 14345 | O-Ring | 1 | — |
| 10 | 14344 | O-Ring | 1 | — |
| 11 | 14349 | Cylinder Head Gasket Seal | 1 | — |
| 12 | GB890-80 | Thin Hexagon Nut with Nylon Ring Lock (M16×1.5) | 1 | — |
| 13 | F99857 | Auxiliary Case Shift Cylinder Head | 1 | — |
| 14 | GB5782-86 | Small Hexagon Head Bolt (M10×32) | 4 | — |
| 14 | GB93-87 | Washer (Size 10) | 4 | — |
| 15 | 791.00.71.0069 | Pressure Switch | 1 | — |
| 16 | X11511 | Corrugated Copper Washer | 4 | — |
| 17 | 12880 | 45° Elbow Pipe Joint | 1 | — |
| 18 | C03052 | Tee Pipe Joint | 1 | — |
| 19 | Q618B01 | Square Head Tapered Plug Screw (NPT 1/8) | 1 | — |
| ——END—— | ||||
No. |
Part No. |
Name |
Qty. |
Remarks |
| 1 | 1684 | Gasket | 1 | — |

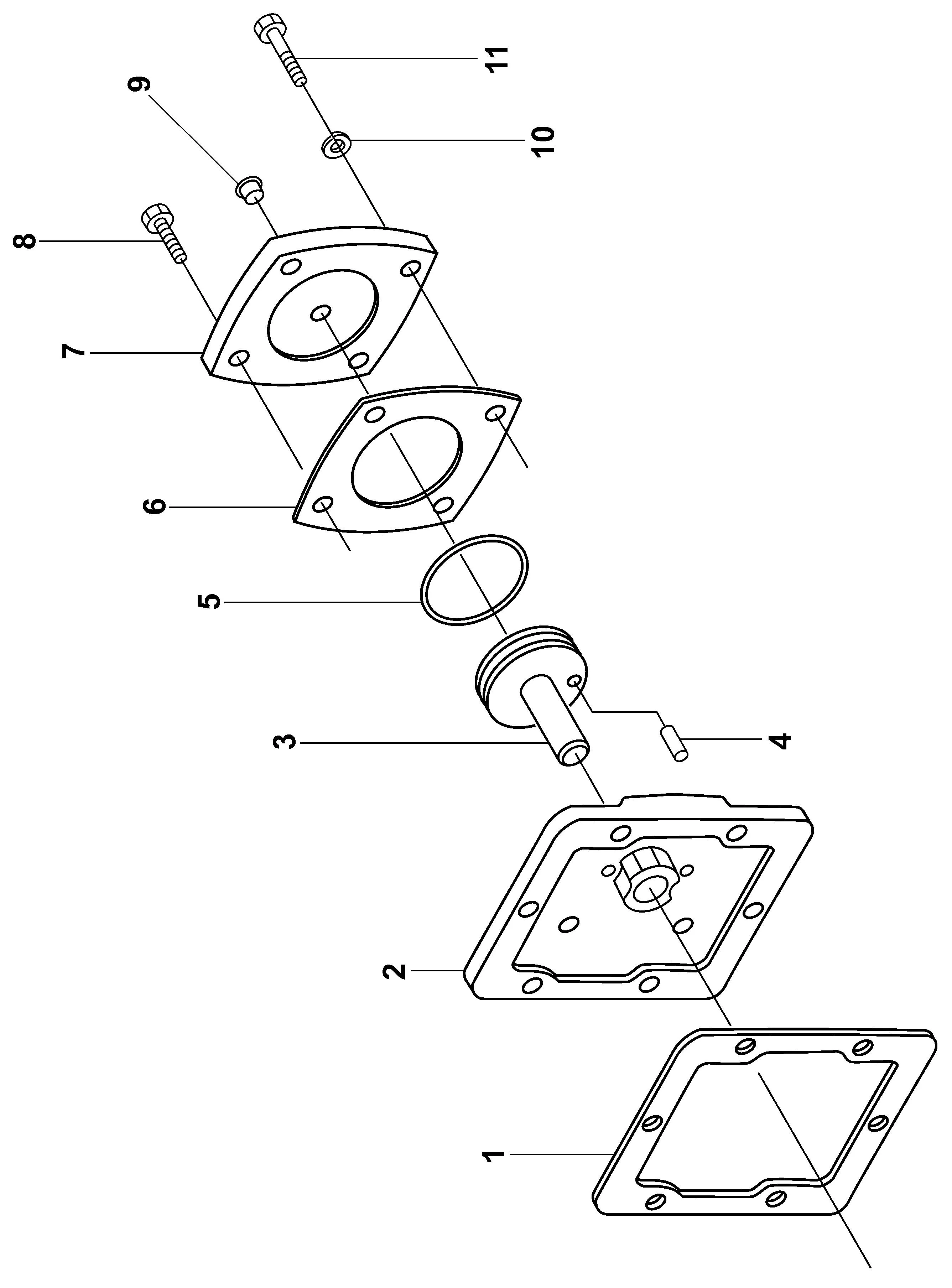

| 2 | 16656 | Intermediate Shaft Brake Housing | 1 | — |
| 3 | 16658 | Intermediate Shaft Brake Piston | 1 | — |
| 4 | GB879-86 | Elastic Cylindrical Pin (6×16) | 1 | — |
| 5 | 16660 | O-Ring | 1 | — |
| 6 | 16661 | Intermediate Shaft Brake Piston Cover Gasket | 1 | — |
| 7 | 16659 | Intermediate Shaft Brake Piston Cover | 1 | — |
| 8 | GB5782-86 | Small Hexagon Head Bolt (M10×32) | 6 | — |
| 9 | 54010 | CA Cup Plug | 1 | — |
| 10 | GB93-87 | Spring Washer | 8 | — |
| 11 | GB5782-86 | Small Hexagon Head Bolt (M10×55) | 2 | — |
| ——END—— | ||||
Note: All Above Data are Just for Referenece, All Data Might Change Without Notices or Update, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
Engine Sale Manual
Installation Drawing
Installation Manual
Operation Manual
Parts Catalogue
