FAST 8DS240A transmission has 8 forward gears, the gear ratio steps are arranged reasonably, and has very outstanding fuel economy performance. With double intermediate shaft structure design, and the Maximum input speed is 2600 RPM. The length of the 8DS240A transmission is 1102.8 mm. The 8DS240A manual transmission has 8 gears, and each gear has a different reduction ratio. The 1st gear reduction ratio is 8.154, the 2nd gear reduction ratio is 6.013, the 3rd gear reduction ratio is 4.115, the 4th gear reduction ratio is 3.053, the 5th gear reduction ratio is 2.124, the 6th gear reduction ratio is 1.450, the 7th gear reduction ratio is 1.000, the 8th gear reduction ratio is 0.757, and the reverse gear ratio is 7.571. The 8DS240A manual transmission has an input torque range of 2400 N.m. The 8DS240A transmission weight is 490 Kg.
FAST 8-speed MT series transmission have different models, with code D in the model name means standard transmission, with code S in the model name means transmission with Double Intermediate Shaft design.
EMAC is the official exporting agent of Fast Group (joint venture of CAT AT transmission), Dongfeng-Dana Axle (Dongfeng and Dana joint venture), Komman air suspension (Leading brand in China in air suspension business line), by integrated all this leading brands together, DuraMac powertrain products covers the products range from diesel/gas engine and engine related system, clutch, transmission, transfer case, main shaft, axle and air suspension.
Advantages of Fast 8DS240A MT Parts
It is synchronized with CMI’ advanced design and sophisticated manufacturing, adapts to harsh working conditions, and has high-intensity and heavy-duty work capabilities.
The Holset wastegate valve makes the low speed performance more perfect and the power performance better.
The cylinder block and cylinder head adopt integrated design to prevent the occurrence of engine water and oil leakage. The parts are 40% less than other similar engines, and the failure rate is greatly reduced.
The cylinder liner adopts a platform mesh honing design, which effectively prevents oil leakage with a perfect geometric structure, and adopts advanced technology such as new piston ring components and gasket crimping molding to reduce oil loss.
Using forged steel camshaft and crankshaft, high-strength cylinder design, many parts are cast on the cylinder, with high rigidity, high pressure resistance, good reliability and longer service life.
Technical Specifications
Basic Introduction of Shaanxi Fast 8DS240A MT
| Transmission Model: | 8DS240A |
| Transmission Application: | Manual Transmission |
| Input Torque: | 2400 N.m |
| Maximum Speed: | 2600 RPM |
| Installation length: | 1102.8 mm |
| Weight Iron/Al Alloy: | 490 Kg |
| Fuel Quantity: | 33 L |
| Speed Ratio: | 8.154-0.757 |
| Lead Time: | 15-30 Working Days |
| Payment Terms: | T/T ,L/C |
Search by Part No. or Part Name
Click Kit Name to Check Part List

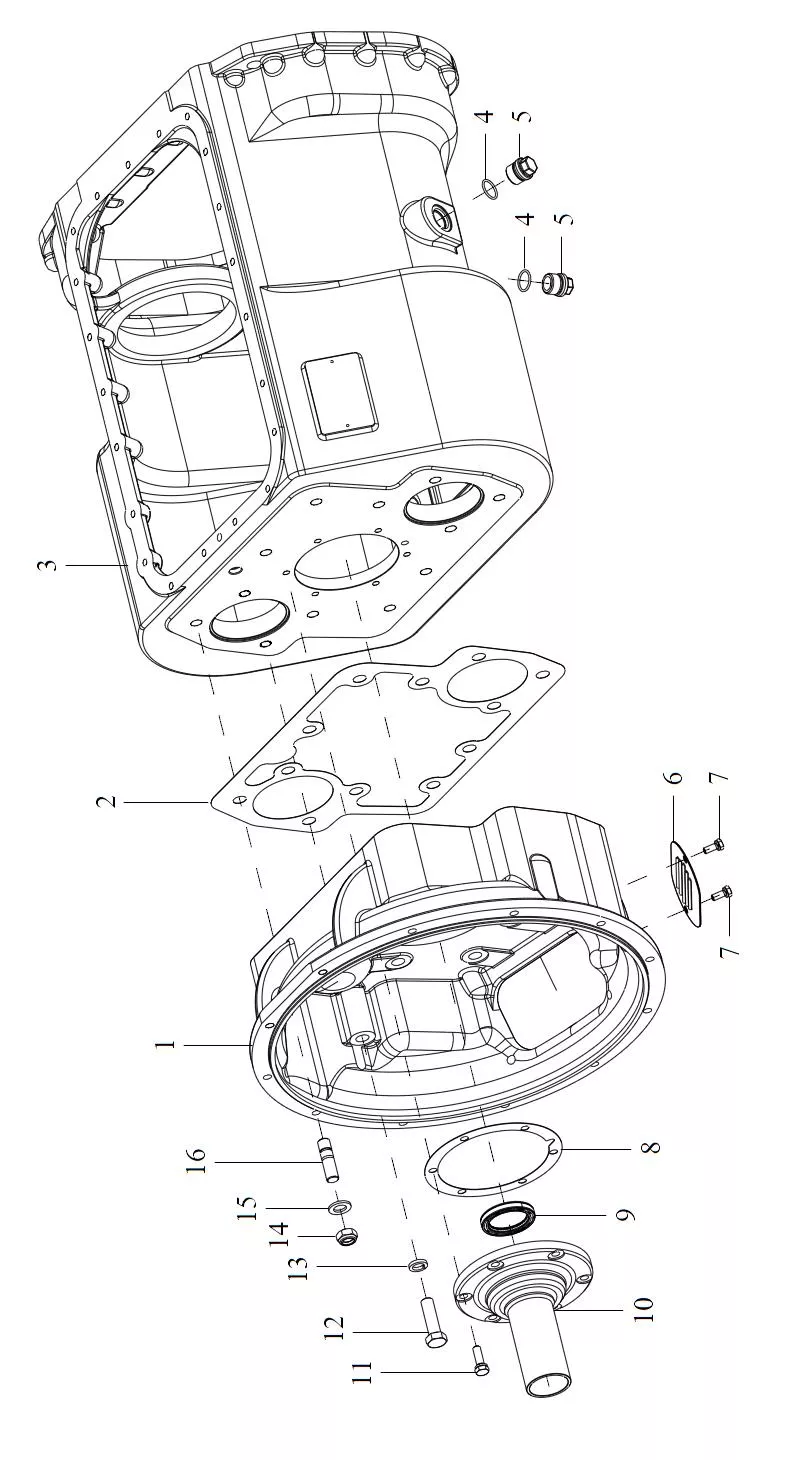

- Clutch Housing and Transmission Housing Assembly

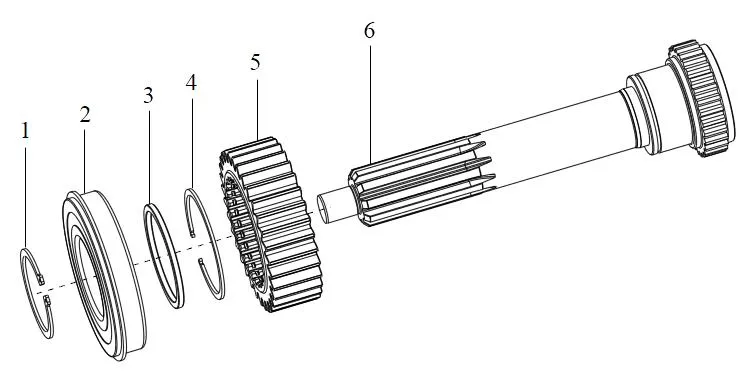

- One Shaft Assembly

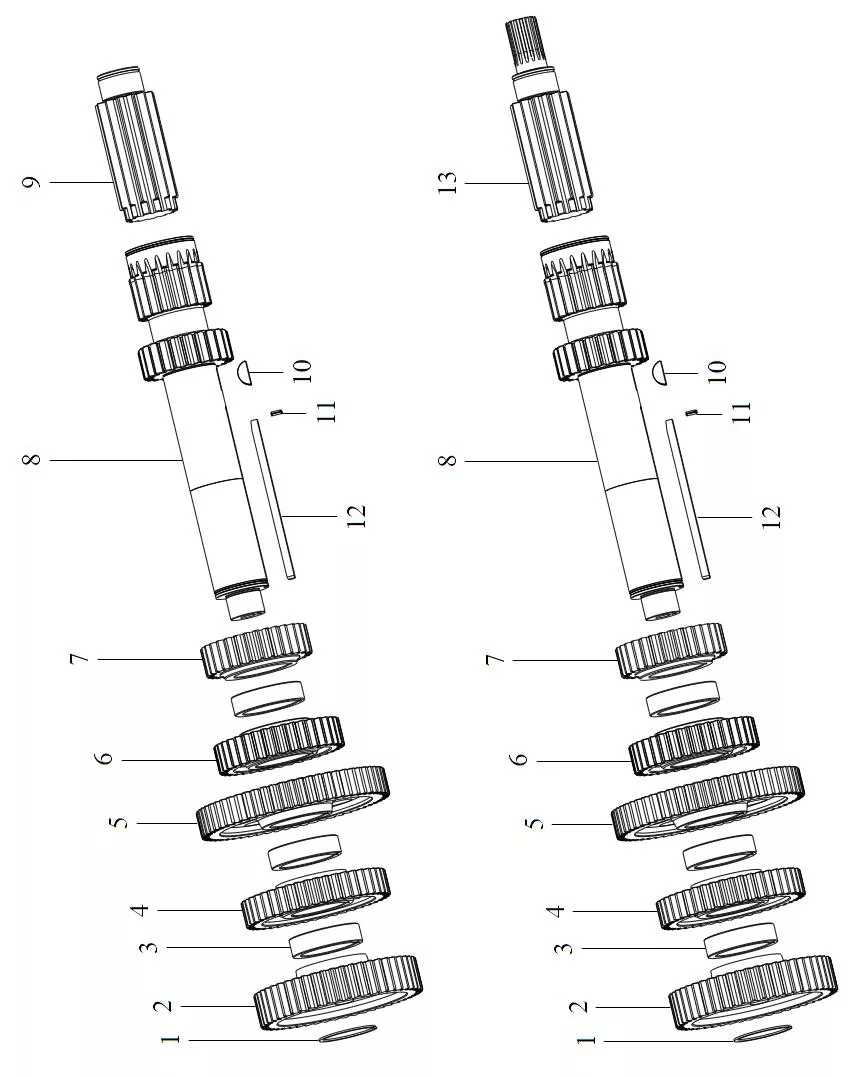

- Left and Right Intermediate Shaft Assemblies
- Second Shaft Assembly

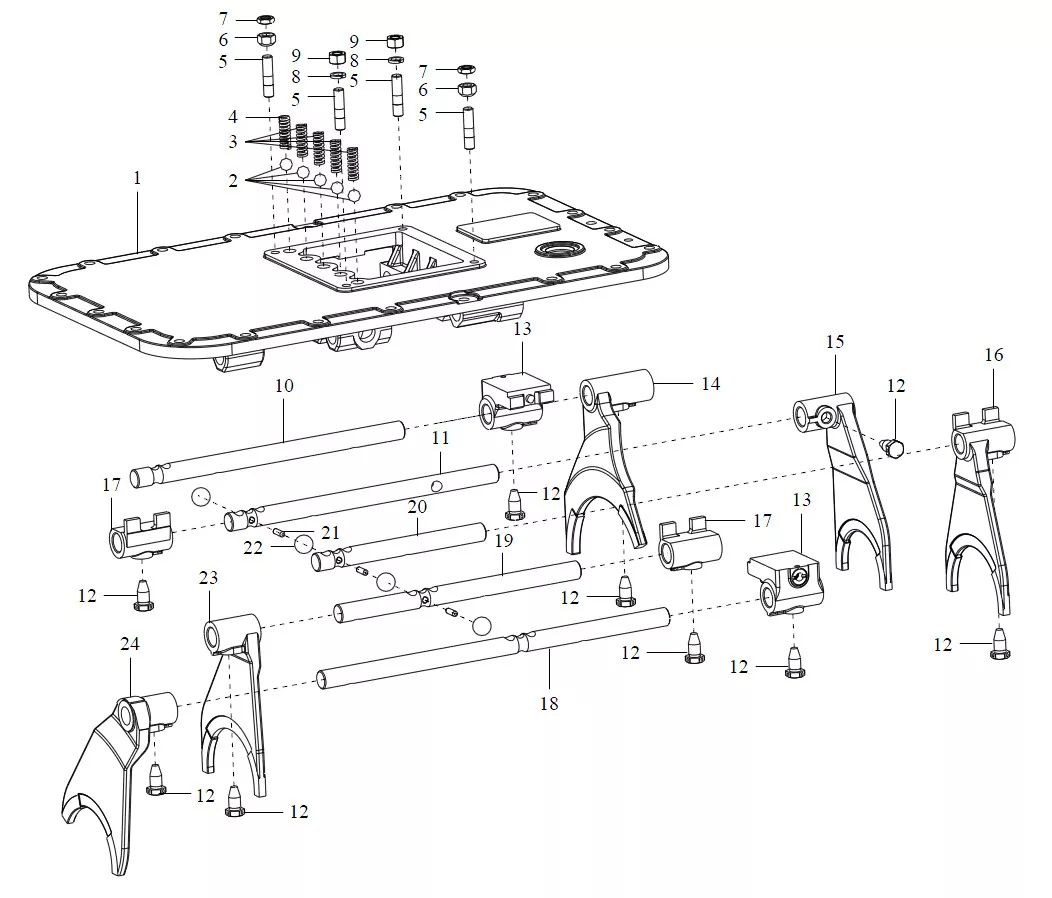

- Upper Cover Assembly
- Control Device Assembly

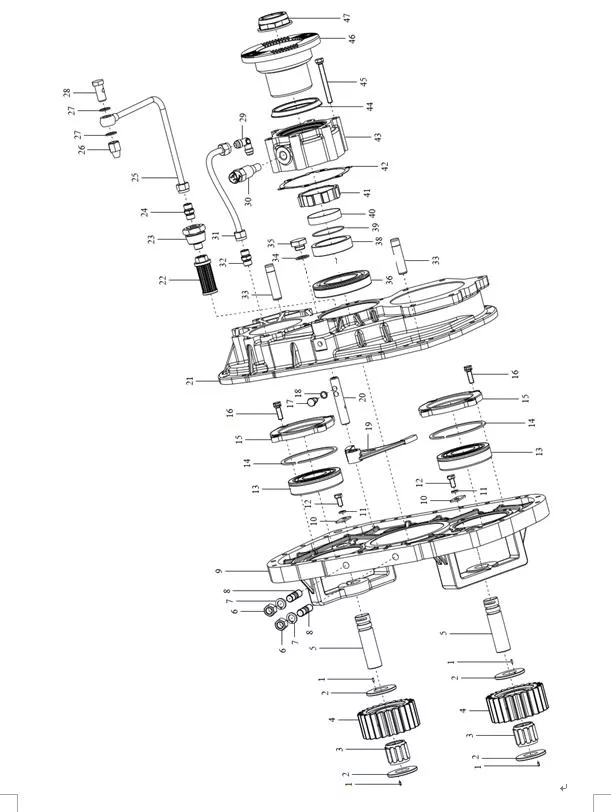

- Rear Cover Housing Assembly
- Other Parts

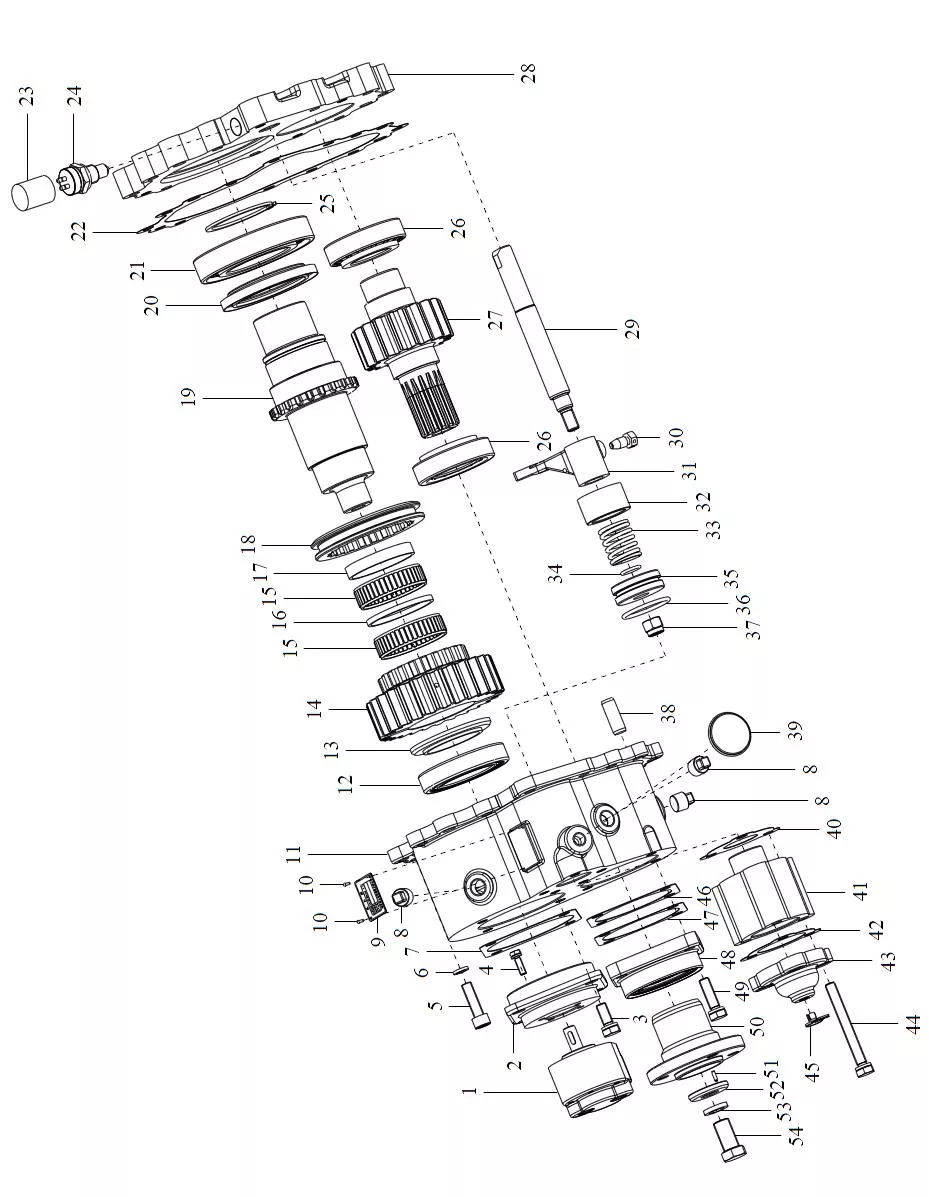

- Power Take-Off Assembly
No. | Part No. | Name | Qty. | Remarks |
| 1 | SZLJ2019-360 | Clutch Housing | 1 | — |
| 2 | 7DS180-1601016 | Clutch Housing Gasket | 1 | — |
| 3 | 8DS260-1701015 | Transmission Housing | 1 | — |
| 4 | 6JS160T-1709588-1 | O-Ring Seal | 2 | — |
| 5 | 5DS50T-1701085 | Oil Plug and Magnet Assembly | 2 | — |
| 6 | C04004-6 | Clutch Handhole Cover | 1 | — |
| 7 | Q1420822 | Hexagon Head Bolt and Spring Washer Assembly | 2 | — |
| 8 | 10JSQX180-1701042 | Primary Shaft Bearing Cover Gasket | 1 | — |
| 9 | F500A-1802191 | Skeleton Oil Seal Assembly | 1 | — |
| 10 | 6DS240T-1701040 | Primary Shaft Bearing Cover | 1 | — |
| 11 | Q1421032M | Pre-Coated Hexagon Head Bolt and Spring Washer Assembly | 6 | — |
| 12 | Q150B16110M | Hexagon Head Bolt | 2 | — |
| 13 | Q40316 | Spring Washer | 2 | — |
| 14 | GB889_2-2000-M16X1_5 | Type 1 Hexagon Lock Nut with Non-Metallic Insert (GB889.2-2000) | 10 | — |
| 15 | Q40116 | Flat Washer | 10 | — |
| 16 | C01056 | Stud Bolt | 10 | — |
| ——END—— | ||||
No. | Part No. | Name | Qty. | Remarks |
| 1 | Q43170 | Elastic Retaining Ring for Shaft | 1 | — |
| 2 | 6214X3-ZNBR-C3 | Bearing (with Snap Ring) | 1 | — |
| 3 | 8DS240A-1701029 | Gear Spacer | 1 | — |
| 4 | 8DS240A-1701028 | Snap Ring | 1 | — |
| 5 | 8DS240A-1701031 | Primary Shaft Gear | 1 | — |
| 6 | 8DS240A-1701030 | Primary Shaft | 1 | — |
| ——END—— | ||||
No. | Part No. | Name | Qty. | Remarks |
| 1 | 16JS260T-1701057 | Countershaft Snap Ring | 2 | — |
| 2 | 8DS240A-1701056 | Countershaft Drive Gear | 2 | — |
| 3 | 12JS280T-1701058 | Spacer Sleeve | 6 | — |
| 4 | 8DS240A-1701054 | Countershaft 6th Gear | 2 | — |
| 5 | 8DS240A-1701055 | Countershaft Overdrive Gear | 2 | — |
| 6 | 8DS240A-1701053 | Countershaft 5th Gear | 2 | — |
| 7 | 8DS260-1701052 | Countershaft 4th Gear | 2 | — |
| 8 | 8DS240A-1701048 | Countershaft | 2 | — |
| 9 | 8DS260-1701049 | Left Rear Countershaft | 1 | — |
| 10 | X-6-E | Woodruff Key | 2 | — |
| 11 | Q5280514 | Elastic Cylindrical Pin | 2 | — |
| 12 | 20JS240T-1701055 | Countershaft Square Key | 2 | — |
| 13 | 8DS260-1701050 | Right Rear Countershaft | 1 | — |
| ——END—— | ||||
Second Shaft Assembly | ||||
| No. | Part No. | Name | Qty. | Remarks |
| 1 | 8DS240A-1701106 | Secondary Shaft 6th & 7th Gear Sliding Sleeve | 1 | — |
| 2 | 10JSD220K-1701124 | 1st & 2nd Gear Adjustment Shim (for Secondary Shaft) | 1 | — |
| 3 | 8DS240A-1701116 | Secondary Shaft 6th Gear | 1 | — |
| 4 | 9JS200T-1701122 | Main Shaft Gear Shim | 2 | — |
| 5 | 8DS260-1701107 | Secondary Shaft Overdrive Gear Seat | 1 | — |
| 6 | 8DS260-1701108 | Secondary Shaft Overdrive Gear Sliding Sleeve | 1 | — |
| 7 | 8DS240A-1701117 | Secondary Shaft Overdrive Gear Assembly | 1 | — |
| 8 | 8DS240A-1701118 | Secondary Shaft Overdrive Gear (per assembly) | 1 each | — |
| 9 | 8DS240A-1701134 | Secondary Shaft Overdrive Gear Coupling Ring Gear (per assembly) | 1 each | — |
| 10 | 8DS240A-1701115 | Secondary Shaft 5th Gear | 1 | — |
| 11 | 7DS180-1701125-1 | 3rd Gear Baffle | 1 | — |
| 12 | 8DS260-1701109 | Secondary Shaft Low & Reverse Gear Sliding Sleeve | 3 | — |
| 13 | 7DS180-1701127 | Low Gear Adjustment Shim | 6 | — |
| 14 | 8DS260-1701114 | Secondary Shaft 4th Gear | 1 | — |
| 15 | 8DS260-1701113 | Secondary Shaft 3rd Gear | 1 | — |
| 16 | 8DS240A-1701112 | Secondary Shaft 2nd Gear | 1 | — |
| 17 | 8DS260-1701123 | Secondary Shaft 1st & 2nd Gear Spacer Sleeve | 1 | — |
| 18 | 8DS260-1701111 | Secondary Shaft 1st Gear | 1 | — |
| 19 | 8DS260-1701110 | Secondary Shaft Reverse Gear | 1 | — |
| 20 | 7DS180-1701121-1 | Reverse Gear Baffle | 1 | — |
| 21 | 8DS260-1701120-1 | Retarder Gear-Shifting Sliding Sleeve | 1 | — |
| 22 | 8DS260-1701119 | Retarder Gear-Shifting Gear Seat | 1 | — |
| 23 | 8DS260-1701122-1 | Retarder Driven Wheel Bearing Housing | 1 | — |
| 24 | K859335GB5846-86 | Needle Roller Bearing | 2 | — |
| 25 | 8DS260-1707022-2 | Retarder Driven Gear | 1 | — |
| 26 | 8DS260-1701121-1 | Retarder Driven Wheel Shim | 1 | — |
| 27 | 8DS260-1701105-3 | Secondary Shaft | 1 | — |
| 28 | 8DS260-1701133-1 | Hexagon Key for Secondary Shaft Rear Section | 4 | — |
| 29 | Q5210612 | Cylindrical Pin | 2 | — |
| 30 | 8DS260-1701131 | Hexagon Key for Secondary Shaft Front Section | 2 | — |
| 31 | Q5280310 | Elastic Cylindrical Pin | 2 | — |
| 32 | 502706KH | Cylindrical Roller Bearing | 1 | — |
| 33 | Q43130 | Elastic Retaining Ring for Shaft | 1 | — |
| ——END—— | ||||
No. | Part No. | Name | Qty. | Remarks |
| 1 | 8DS260-1702015 | Upper Cover | 1 | — |
| 2 | 12_7G100BGB-T308 | Steel Ball | 5 | — |
| 3 | F96085 | Compression Spring | 4 | — |
| 4 | F96084 | Compression Spring | 1 | — |
| 5 | 11066 | Stud Bolt (3/8″) | 4 | — |
| 6 | X-1-603 | Hexagon Nut | 2 | — |
| 7 | Q351B10 | Thin Hexagon Nut – Fine Thread | 2 | — |
| 8 | Q40310 | Spring Washer | 2 | — |
| 9 | Q361B10 | Type 2 Hexagon Nut – Fine Thread | 2 | — |
| 10 | 8DS260-1702067 | 8th Gear Fork Shaft | 1 | — |
| 11 | 8DS260-1702066 | 6th & 7th Gear Fork Shaft | 1 | — |
| 12 | 3220 | Shift Fork Locking Screw | 9 | — |
| 13 | DS100-1702051 | 1st & Reverse Gear Guide Block | 2 | — |
| 14 | 8DS260-1702059 | 8th Gear Shift Fork | 1 | — |
| 15 | 8DS240A-1702058 | 6th & 7th Gear Shift Fork | 1 | — |
| 16 | 8DS260-1702057 | 4th & 5th Gear Shift Fork | 1 | — |
| 17 | 8DS260-1702053 | 4th & 5th Gear Guide Block | 2 | — |
| 18 | 8DS260-1702063 | 1st & Reverse Gear Fork Shaft | 1 | — |
| 19 | 8DS260-1702064 | 2nd & 3rd Gear Fork Shaft | 1 | — |
| 20 | 8DS260-1702065 | 4th & 5th Gear Fork Shaft | 1 | — |
| 21 | 1634 | Fork Shaft Interlock Pin | 3 | — |
| 22 | 19_05G100BGB-T308 | Steel Ball | 4 | — |
| 23 | 8DS260-1702056 | 2nd & 3rd Gear Shift Fork | 1 | — |
| 24 | 8DS260-1702055 | 1st & Reverse Gear Shift Fork | 1 | — |
| ——END—— | ||||
No. | Part No. | Name | Qty. | Remarks |
| 1 | C03032-3 | Shift Connector | 1 | — |
| 2 | Q151B1030 | Hexagon Head Bolt – Fine Thread | 4 | — |
| 3 | Q40310 | Spring Washer | 6 | — |
| 4 | C03033-8 | End Cover | 1 | — |
| 5 | C03034-4 | Gasket | 1 | — |
| 6 | C03031-4 | Splined Sleeve | 1 | — |
| 7 | F91444 | Oil Seal | 1 | — |
| 8 | 8DS260-1703018-1 | Shift Head | 1 | — |
| 9 | 8DS260-1703052 | Control Block | 1 | — |
| 10 | 8DS260-1703017-1 | Horizontal Shift Lever | 1 | — |
| 11 | F91345 | Bushing for Horizontal Shift Lever | 2 | — |
| 12 | F99670-3 | Spring Seat | 2 | — |
| 13 | 12JS160T-1703027 | Compression Spring | 1 | — |
| 14 | Q43120 | Elastic Retaining Ring for Shaft | 1 | — |
| 15 | C03030 | Cylindrical Pin | 1 | — |
| 16 | C09035 | Elastic Cylindrical Pin | 1 | — |
| 17 | JS150TA-1703000B-1 | Cylinder Assembly | 1 | — |
| 18 | F91353 | Gasket for Dual-H Air Valve | 1 | — |
| 19 | F96141-2 | Shift Feel Plug | 1 | — |
| 20 | Q72324T3 | Sealing Washer | 1 | — |
| 21 | Nov-74 | Reverse Gear Lock Spring | 1 | — |
| 22 | F99670-3 | Shift Feel Pin | 1 | — |
| 23 | 12JS160T-1703024 | Limit Sleeve | 1 | — |
| 24 | F99672 | End Shim | 1 | — |
| 25 | F99666 | Side Plate | 1 | — |
| 26 | Q1420822 | Hexagon Head Bolt and Spring Washer Assembly | 4 | — |
| 27 | 15276-2 | Breather Plug Assembly | 1 | — |
| 28 | Q72224 | Cup Plug | 1 | — |
| 29 | 79100710068-1 | Switch | 1 | — |
| 30 | C03035-1 | Gear Selection Shift Head | 1 | — |
| 31 | C03039-1 | Washer | 1 | — |
| 32 | Q170B1016 | Hexagon Head Bolt with Hole in Head | 1 | — |
| 33 | Q5510628 | Plain Flat Key | 1 | — |
| 34 | 8DS260-1703015-1 | Housing for Dual-Lever Left Operating Device | 1 | — |
| 35 | Q72324T3 | Sealing Washer | 2 | — |
| 36 | 99012710041-3 | Switch | 1 | — |
| 37 | C03037-1 | Gasket for Window Cover | 1 | — |
| 38 | C03036-1 | Window Cover | 1 | — |
| 39 | Q150B1025 | Hexagon Head Bolt | 2 | — |
| 40 | HG4-333-66-20X2_4 | O-Ring Seal | 1 | — |
| 41 | C03038-1 | Gear Selection Connector | 1 | — |
| 42 | C03040-1 | Set Screw | 1 | — |
| ——END—— | ||||
No. | Part No. | Name | Qty. | Remarks |
| 1 | Q5280308 | Elastic Cylindrical Pin | 4 | — |
| 2 | 7DS180-1701088 | Reverse Gear Thrust Washer | 4 | — |
| 3 | 30643-32 | Long Cylindrical Roller Bearing without Outer Ring | 2 | — |
| 4 | 7DS180-1701082 | Reverse Idler Gear | 2 | — |
| 5 | 7DS180-1701083 | Reverse Idler Shaft | 2 | — |
| 6 | Q341B16 | Type 1 Hexagon Nut – Fine Thread | 2 | — |
| 7 | Q40316 | Flat Washer | 2 | — |
| 8 | Q1231630 | Stud Bolt | 2 | — |
| 9 | 8DS260-1701070 | Transmission Rear Cover | 1 | — |
| 10 | J80-1701084 | Reverse Gear Shaft Locking Plate | 2 | — |
| 11 | Q40310 | Spring Washer | 2 | — |
| 12 | Q170B1020 | Hexagon Head Bolt with Hole in Head | 2 | — |
| 13 | NUP311ENYB | Short Cylindrical Roller Bearing | 2 | — |
| 14 | Q433120 | Flattened Wire Retaining Ring for Shaft | 2 | — |
| 15 | 7DS180-1701074-1 | Countershaft Rear End Cover | 2 | — |
| 16 | C09034 | Pre-Coated Hexagon Head Bolt with Hole in Head and Spring Washer Assembly | 8 | — |
| 17 | 3220 | Shift Fork Locking Screw | 1 | — |
| 18 | Q72312T3M | Sealing Washer | 1 | — |
| 19 | 8DS260-1707067 | Retarder Driven Wheel Shift Fork | 1 | — |
| 20 | 8DS260-1707061 | Retarder Driven Wheel Shift Fork Shaft | 1 | — |
| 21 | 8DS240A-1701072-1 | Retarder Bracket | 1 | — |
| 22 | WU-16X180 | Mesh Type Oil Filter | 1 | — |
| 23 | QQ60-4211127-2 | Oil Filter Plug | 1 | — |
| 24 | Q80512 | Compression Fitting Straight Adapter with Tapered Thread | 1 | — |
| 25 | 7ds180-1705016-6 | Lubricating Oil Pipe Assembly | 1 | — |
| 26 | QQ60-4211136 | Connector | 1 | — |
| 27 | Q72318T3 | Sealing Washer | 2 | — |
| 28 | 7DS180-1705017-1 | Hollow Bolt | 1 | — |
| 29 | Q65412 | Flared Fitting 90-Degree Elbow Adapter with Tapered Thread | 1 | — |
| 30 | C03054-21 | Electronic Odometer Sensor Assembly | 1 | — |
| 31 | 7DS180-1707070 | C-Type Crimped Rubber Hose Assembly | 1 | — |
| 32 | Q80512 | Compression Fitting Straight Adapter with Tapered Thread | 1 | — |
| 33 | 8DS260-1701075 | Rear Cover Locating Pin | 2 | — |
| 34 | Q72322T3 | Sealing Washer | 1 | — |
| 35 | Q617B22 | Hexagon Head Plug | 1 | — |
| 36 | 7DS220-1707112 | Cylindrical Roller Bearing | 1 | — |
| 38 | 7DS180-1701156 | Spacer Sleeve | 1 | — |
| 39 | 12JS160T-1707112 | O-Ring Seal | 2 | — |
| 40 | JS220-1707111 | Odometer Drive Gear Bushing | 1 | — |
| 41 | JS180-1701157-2 | Odometer Rotor | 1 | — |
| 42 | 7DS180-1701151-1 | Secondary Shaft Rear Bearing Cover Gasket | 1 | — |
| 43 | 7DS180-1701150-8 | Rear Bearing Cover Assembly | 1 | — |
| 44 | 19109-5 | Oil Seal (per assembly) | 1 each | — |
| 45 | 7DS180-1701155-4 | Main Shaft Rear Bearing Cover (per assembly) | 1 each | — |
| 46 | F96119 | Dust Cover | 1 | — |
| 47 | Q1421095 | Hexagon Head Bolt and Spring Washer Assembly | 6 | — |
| 48 | 7DS180-1701159 | Output Flange | 1 | — |
| 49 | F96006-1 | Flange Nut | 1 | — |
| ——END—— | ||||
No. | Part No. | Name | Qty. | Remarks |
| 1 | Q72318T3 | Sealing Washer | 2 | At Pressure Switch |
| 3 | 20815 | Lifting Angle Plate | 2 | — |
| 4 | 6JS160T-1709587-1 | Oil Plug | 1 | At Upper Cover |
| 5 | 6JS160T-1709588-1 | O-Ring Seal | 1 | At Upper Cover |
| 6 | 791_00_71_0068-1 | Pressure Switch | 1 | Reverse Gear Switch |
| 7 | 8DS260-1701071 | Rear Cover Gasket | 2 | — |
| 8 | 8DS260-1702016 | Upper Cover Gasket | 1 | — |
| 9 | C01007-233 | Name Plate | 1 | — |
| 10 | 8DS240A-1702022 | Small Name Plate | 1 | — |
| 11 | Q2713508 | Cross Recessed Pan Head Tapping Screw – Type C | 4 | At Large & Small Name Plates |
| 12 | 8DS260-1703016 | Operating Window Gasket | 1 | — |
| 13 | 8DS260-1705011 | Oil Pipe | 1 | — |
| 14 | 990_12_71_0041-3 | Pressure Switch | 1 | Neutral Switch |
| 15 | A-4729 | Countershaft Baffle Assembly | 2 | Front End of Countershaft |
| 16 | 19668 | Countershaft Bearing Baffle | 1 each | (Per Assembly) |
| 17 | Q5280514 | Elastic Cylindrical Pin | 1 each | (Per Assembly) |
| 18 | C01021 | Snap Ring | 2 | Front End of Countershaft |
| 19 | C03016 | Switch Protection Sleeve | 3 | — |
| 20 | C04013-3 | Oil Level Label | 1 | — |
| 21 | F96035-48 | External Shift Arm for LRC | 1 | — |
| 22 | GB3452_1-16X1_8G | O-Ring | 1 | At Joint Surface of PTO Side Cover & Retarder Bracket |
| 23 | JS180-1707051 | Snap Ring | 2 | Rear End of Countershaft |
| 24 | NUP218E | Cylindrical Roller Bearing | 2 | Rear End of Countershaft |
| 25 | NUP2309ENM | Cylindrical Roller Bearing | 2 | Front End of Countershaft |
| 26 | Q151B1645M | Pre-Coated Hexagon Head Bolt – Fine Thread | 2 | Front End of Countershaft |
| 27 | 12JSD200T-1707080-1 | Rear Cover Plate | 1 | At Rear Cover |
| 28 | Q341B10 | Type 1 Hexagon Nut – Fine Thread | 1 | At External Shift Arm |
| 29 | Q40310 | Spring Washer | 1 | At External Shift Arm |
| 30 | Q150B1050 | Hexagon Head Bolt – Fine Thread | 1 | At External Shift Arm |
| 31 | Q43190 | Elastic Retaining Ring for Shaft | 2 | Rear End of Countershaft |
| 32 | Q72216 | Cup Plug | 1 | At Oil Pipe on Front End of Housing |
| 33 | HB00043 | O-Ring Seal | 1 | At Rear Cover |
| 34 | Q1421032 | Hexagon Head Bolt and Spring Washer Assembly | 2 | At Upper Cover |
| 35 | Q1421035 | Hexagon Head Bolt and Spring Washer Assembly | 15 | At Upper Cover |
| 36 | Q1421035M | Pre-Coated Hexagon Head Bolt and Spring Washer Assembly | 2 | At Upper Cover |
| 37 | Q1421038 | Hexagon Head Bolt and Spring Washer Assembly | 2 | At Upper Cover |
| 38 | Q1421075 | Hexagon Head Bolt and Spring Washer Assembly | 25 | At Rear Cover |
| 39 | Q5211020 | Cylindrical Pin | 1 | Positioning Rear PTO |
| 40 | Q5211026 | Cylindrical Pin | 1 | At Upper Cover |
| 41 | Q5270630 | Coiled Elastic Pin | 1 | At Retarder Driven Wheel Shift Fork |
| 42 | Q218B1065TF2 | Hexagon Socket Cylinder Head Screw | 7 | At PTO |
| 43 | Q614B03 | Square Head Tapered Plug | 1 | At Rear Cover |
| 44 | QH70N-G26591 | Rear Power Take-Off (PTO) Assembly | 1 | — |
| 45 | J75-1601035 | Grease Cup Seat | 1 | — |
| 46 | J75-1601034 | Grease Cup Cover | 1 | — |
| 47 | J75-1601033 | Lubricating Hose Assembly | 1 | — |
| 48 | J75-1601031 | Pipe Connector | 1 | — |
| 49 | Q72310T3 | Sealing Washer | 2 | — |
| 50 | Q14212435 | Hexagon Head Bolt and Spring Washer Assembly | 4 | — |
| 51 | 7DS180-1601020-1 | Clutch Fork Sub-Assembly | 1 | — |
| 52 | 7DS180-1601021-1 | Clutch Release Fork | 1 | Shipped with Gearbox |
| 53 | 7DS180-1601024-1 | Release Fork Bracket | 1 | (Per Sub-Assembly) |
| 54 | GB304-64UC25 | Spherical Plain Bearing | 1 | (Per Sub-Assembly) |
| 55 | JS180-1601023-3 | Clutch Release Fork Shaft | 1 | (Per Sub-Assembly) |
| 56 | JS180-1601029-1 | Dust Cover | 2 | (Per Sub-Assembly) |
| 57 | JS180-1601030-2 | Fork Shaft Bushing | 2 | (Per Sub-Assembly) |
| 58 | Q43125 | Elastic Retaining Ring for Shaft | 2 | (Per Sub-Assembly) |
| 59 | Q43042 | Elastic Retaining Ring for Hole | 2 | (Per Sub-Assembly) |
| 60 | Q150B1435 | Hexagon Head Bolt | 5 | — |
| 61 | Q40114 | Flat Washer | 5 | — |
| ——END—— | ||||
No. | Part No. | Name | Qty. | Remarks |
| 1 | CB-B6F | Gear Pump | 1 | — |
| 2 | QH70-4211107-1 | End Cover | 1 | — |
| 3 | Q1421025 | Hexagon Head Bolt and Spring Washer Assembly | 4 | — |
| 4 | Q1420620M | Pre-Coated Hexagon Head Bolt and Spring Washer Assembly | 4 | — |
| 5 | Q218B1035TF2 | Hexagon Socket Cylinder Head Screw | 4 | — |
| 6 | Q40310 | Spring Washer | 4 | — |
| 7 | QH70-4211108-1 | End Cover Gasket | 1 | — |
| 8 | Q614B03 | Square Head Tapered Plug | 3 | — |
| 9 | 20991119 | Name Plate | 1 | — |
| 10 | Q5410206 | Name Plate Rivet | 2 | — |
| 11 | 20991101 | PTO Housing | 1 | — |
| 12 | 42111 | Cylindrical Roller Bearing | 1 | — |
| 13 | QH70-4211106 | Bearing Baffle | 1 | — |
| 14 | 20991105 | Input Gear | 1 | — |
| 15 | K637120GB5846-86 | Needle Roller Bearing | 2 | — |
| 16 | J80-1701133 | 4th Gear Bearing Spacer | 1 | — |
| 17 | QH70-4211103 | Bearing Spacer | 1 | — |
| 18 | QH70-4211302 | Clutch Gear Sleeve | 1 | — |
| 19 | QH70-4211102-1 | Hollow Shaft | 1 | — |
| 20 | QQ60-4211119 | Gear Pump Gasket | 1 | — |
| 21 | NF213EM | Cylindrical Roller Bearing with Single Rib on Outer Ring | 1 | — |
| 22 | 20991110 | Side Cover Gasket | 1 | — |
| 23 | QH70-4211310 | Odometer Protection Sleeve | 1 | — |
| 24 | JK942S | Indicator Light Switch | 1 | — |
| 25 | Q43165 | Elastic Retaining Ring for Shaft | 1 | — |
| 26 | 32208 | Tapered Roller Bearing | 2 | — |
| 27 | 20991201 | Output Gear Shaft | 1 | — |
| 28 | 20991111 | Side Cover | 1 | — |
| 29 | QH70-4211305-2 | Piston Fork Shaft | 1 | — |
| 30 | J80-1702083 | Set Screw | 1 | — |
| 31 | QH70-4211301 | Shift Fork | 1 | — |
| 32 | QCZ50-4211310 | Limit Sleeve | 1 | — |
| 33 | QL40B-4211311B | Return Spring | 1 | — |
| 34 | GB3452_1-16X2_65 | O-Ring | 1 | — |
| 35 | QC45-4211311 | Piston | 1 | — |
| 36 | QC45-4211300 | O-Ring Seal | 1 | — |
| 37 | Q32812 | Type 1 Hexagon Lock Nut with Non-Metallic Insert | 1 | — |
| 38 | 13X35-GB119_2 | Cylindrical Pin | 2 | — |
| 39 | QH70-4211307 | Cylinder Gasket | 1 | — |
| 40 | QC45-4211306 | Cylinder Block | 1 | — |
| 42 | QH70-4211303 | Cylinder Head Gasket | 1 | — |
| 43 | QH70-4211304-1 | Cylinder Head | 1 | — |
| 44 | Q1421090 | Hexagon Head Bolt and Spring Washer Assembly | 3 | — |
| 45 | 54010 | CA-Type Cup Plug | 1 | — |
| 46 | QH70-4211208 | Paper Gasket | 1 | — |
| 47 | QH70-4211203 | Adjustment Shim | 3 | — |
| 48 | QH70-4211205 | Bearing Cover Assembly | 1 | — |
| 49 | F500A-1802191 | Skeleton Oil Seal Assembly | 2 each | — |
| 50 | QH70-4211206 | Bearing Cover | 1 each | — |
| 51 | Q1421035 | Hexagon Head Bolt and Spring Washer Assembly | 4 | — |
| 52 | QH70-4211202 | Baffle | 1 | — |
| 53 | Q5280310 | Elastic Cylindrical Pin | 1 | — |
| 54 | QH70-4211202 | Baffle | 1 | — |
| 55 | Q40316 | Spring Washer | 1 | — |
| 56 | GB21-76-M16X1_5X30 | Small Hexagon Head Bolt | 1 | — |
| ——END—— | ||||
Note: All Above Data are Just for Referenece, All Data Might Change Without Notices or Update, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
Engine Sale Manual
Installation Drawing
Installation Manual
Operation Manual
Parts Catalogue
![](/wp-content/uploads/2021/08/WhatApp-Icon.png"){kind=icon}
