Fast 12JSD200TA-B MT
FAST 12JSD200TA-B transmission has 12 forward gears, the gear ratio steps are arranged reasonably, and has very outstanding fuel economy performance. With mechanical structure design and integrated with a synchronizer, the Maximum input speed is 2600 RPM. The length of the 12JSD200TA-B transmission is 983.4 mm. The 12JSD200TA-B manual transmission has 12 gears, and each gear has a different reduction ratio. The 1st gear reduction ratio is 12.098, the 2nd gear reduction ratio is 9.518, the 3rd gear reduction ratio is 7.313, the 4th gear reduction ratio is 5.711, the 5th gear reduction ratio is 4.462, the 6th gear reduction ratio is 3.476, the 7th gear reduction ratio is 2.712, the 8th gear reduction ratio is 2.133, the 9th gear reduction ratio is 1.639, the 10th gear reduction ratio is 1.280, the 11th gear reduction ratio is 1.000, the 12th gear reduction ratio is 0.779, and the reverse gear 1 ratio is 11.572, and the reverse gear 2 ratio is 2.594. 12JSD200TA-B manual transmission has an input torque range of 2000 N.m. The 12JSD200TA-B transmission weight is 397/288 Kg.
FAST 12-speed MT series transmission have different models, with code J in the model name means mechanical transmission, with code S in the model name means transmission with Double Intermediate Shaft design.
Through more than 10 years of continuous effort, DuraMac has been exporting premium powertrain solutions to our global partners from more than 30 countries and regions, including USA, Belgium, Spain, Turkey, Thailand and Vietnam, including some of region’s well-known manufacturers.
Advantages of Fast 12JSD200TA-B MT Parts
-
It is synchronized with CMI’ advanced design and sophisticated manufacturing, adapts to harsh working conditions, and has high-intensity and heavy-duty work capabilities.
-
The Holset wastegate valve makes the low speed performance more perfect and the power performance better.
-
The cylinder block and cylinder head adopt integrated design to prevent the occurrence of engine water and oil leakage. The parts are 40% less than other similar engines, and the failure rate is greatly reduced.
-
The cylinder liner adopts a platform mesh honing design, which effectively prevents oil leakage with a perfect geometric structure, and adopts advanced technology such as new piston ring components and gasket crimping molding to reduce oil loss.
-
Using forged steel camshaft and crankshaft, high-strength cylinder design, many parts are cast on the cylinder, with high rigidity, high pressure resistance, good reliability and longer service life.
Technical Specifications
Basic Introduction of Fast 12JSD200TA-B MT
| Transmission Model: | 12JSD200TA-B |
| Transmission Application: | Manual Transmission |
| Input Torque: | 2000 N.m |
| Maximum Speed: | 2600 RPM |
| Installation length: | 983.4 mm |
| Weight Iron/Al Alloy: | 397/288 Kg |
| Fuel Quantity: | 15 L |
| Speed Ratio: | 12.098-0.799 |
| Lead Time: | 15-30 Working Days |
| Payment Terms: | T/T ,L/C |
Search by Part No. or Part Name
Click Kit Name to Check Part List
- Transmission Housing Assembly
- Clutch Housing and Release Device Assembly
- Second Shaft Assembly
- Left Intermediate Shaft Assembly
- Right Intermediate Shaft Assembly
- One Shaft Assembly
- Reverse Gear Intermediate Shaft Assembly
- Upper Cover Assembly
- Control Device Assembly
- Air Valve Assembly

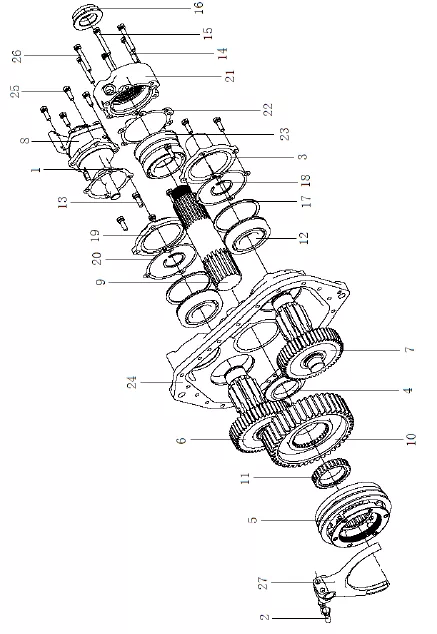

- Rear Cover Assembly

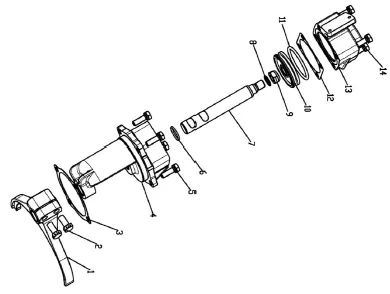

- Auxiliary Box Cylinder Assembly

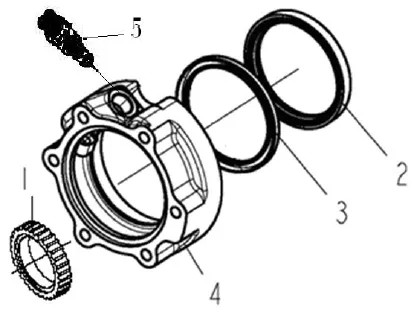

- Spindle Rear Bearing Cover Assembly

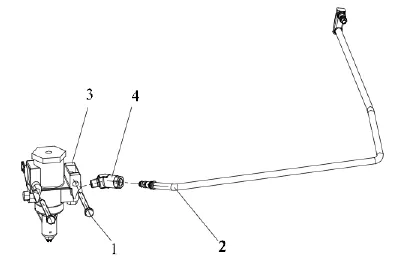

- Air Filter Regulator

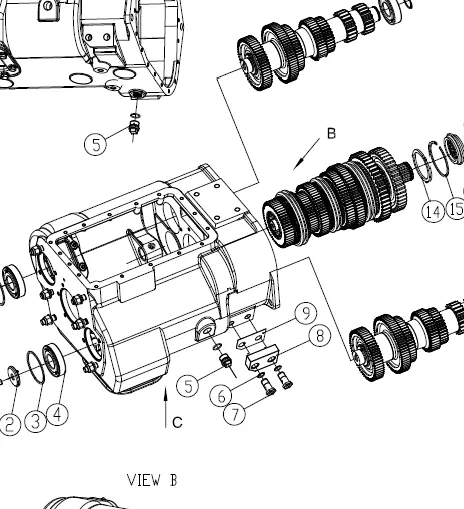

- Transmission Housing and Other Related

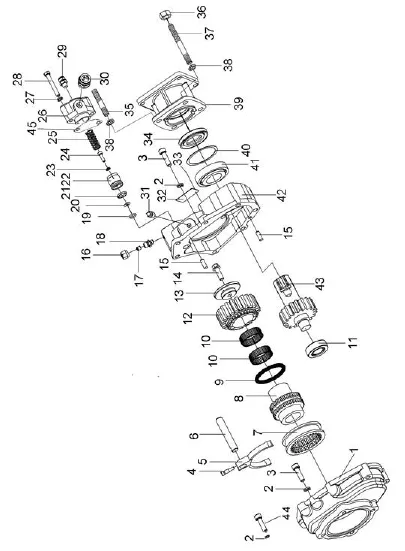

- QH50 Power Take-off Assembly

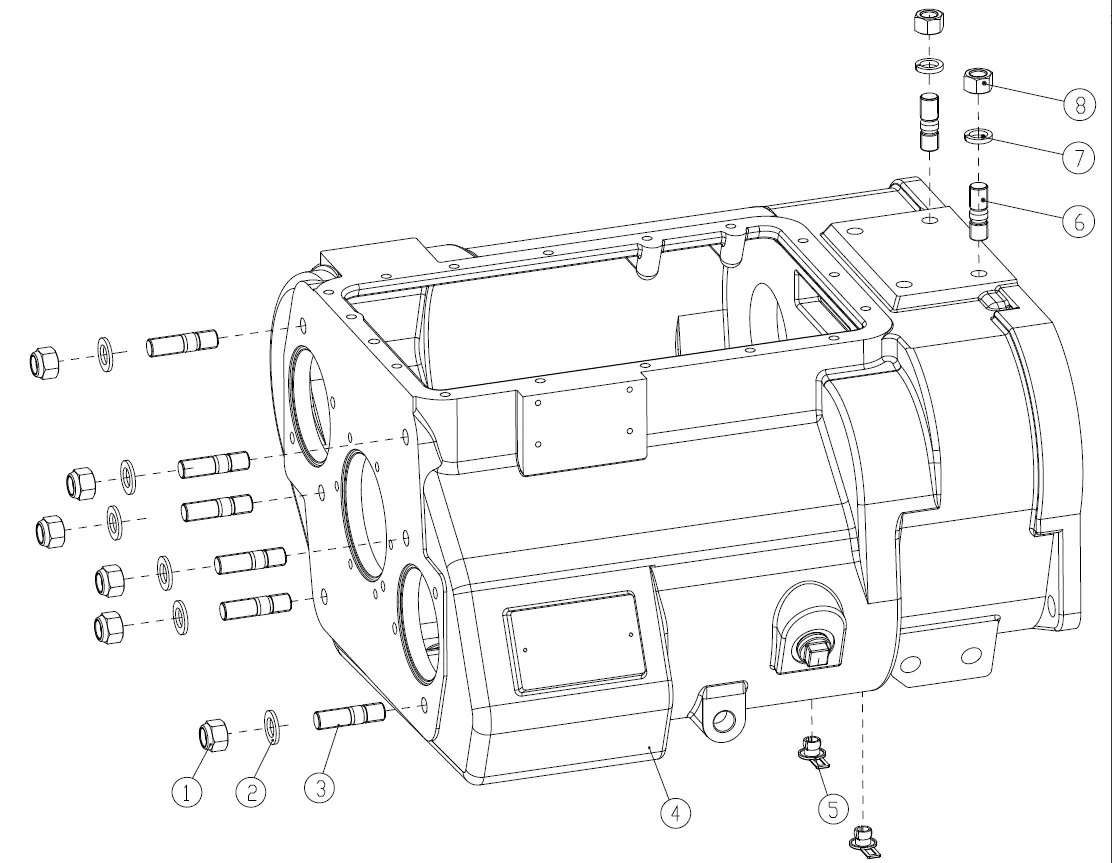

No. |
Part No. |
Name |
Qty. |
Remarks |
| 1 | GB889.2-2000-M16×1.5 | Type 1 Hexagon Lock Nut with Non-Metallic Insert (per GB889.2-2000) | 9 | — |
| 2 | Q40116 | Flat Washer | 9 | — |
| 3 | C01056 | Double-Ended Bolt | 8 | — |
| 4 | C01056-5 | Double-Ended Bolt | 1 | — |
| 5 | 12JSD160T-1701015-29 | Transmission Housing | 1 | — |
| 6 | 54015 CA | Bowl-Type Plug / Cup Plug | 2 | — |
| 7 | Q1231630 | Double-Ended Stud | 2 | — |
| 8 | Q40316 | Spring Washer | 2 | — |
| 9 | Q341B16 | Type 1 Hexagon Nut | 2 | — |
| ——END—— | ||||

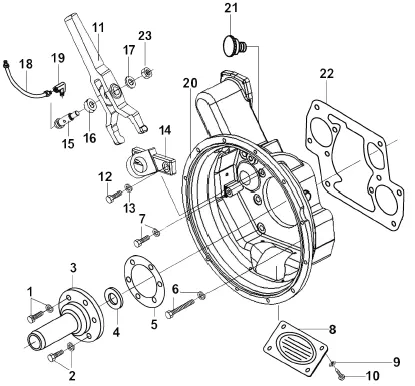

No. |
Part No. |
Name |
Qty. |
Remarks |
| 1 | C09034 | Pre-Coated Hexagon Head Bolt with Hole in Head and Spring Washer Assembly | 2 | — |
| 2 | Q1421032M | Pre-Coated Hexagon Head Bolt and Spring Washer Assembly | 4 | — |
| 3 | JS180-1701040-4 | Primary Shaft Bearing Cover | 1 | — |
| 4 | F500A-1802191 | Oil Seal for Primary Shaft Bearing Cover | 1 | — |
| 5 | 14311 | Gasket for Primary Shaft Bearing Cover | 1 | — |
| 6 | Q1421290M | Pre-Coated Hexagon Head Bolt and Spring Washer Assembly | 2 | — |
| 7 | Q1421238M | Pre-Coated Hexagon Head Bolt and Spring Washer Assembly | 3 | — |
| 8 | 1565 | Clutch Hand Hole Cover | 1 | — |
| 9 | Q1420812 | Hexagon Head Bolt and Spring Washer Assembly | 4 | — |
| 10 | Q1420812 | Hexagon Head Bolt and Spring Washer Assembly | 3 | — |
| 11 | JS180-1601021-2 | Shift Fork | 1 | — |
| 12 | Q218B1645 | Hexagon Socket Cylinder Head Screw | 2 | — |
| 13 | Q40316 | Spring Washer | 2 | — |
| 14 | JS180-1601024-39 | T-Type Plate | 1 | — |
| 15 | JS180-1601023-1 | Shift Fork Shaft | 1 | — |
| 16 | GE25ES | Spherical Plain Bearing | 1 | — |
| 17 | JS180-1601022-1 | Shim / Gasket | 1 | — |
| 18 | 51003 | Oil Pipe Assembly | 1 | — |
| 19 | 12880 | 45° Elbow Pipe Fitting | 1 | — |
| 20 | JS180-1601015-30 | Clutch Housing | 1 | — |
| 21 | GB1154-79-A-6 | Screw-On Oil Cup (per GB1154-79) | 1 | — |
| 22 | 20822-3 | Clutch Housing Gasket | 1 | — |
| 23 | GB889.2-2000-M16×1.5 | Thin Hexagon Lock Nut with Nylon Ring (per GB889.2-2000) | 1 | — |
| ——END—— | ||||
No. |
Part No. |
Name |
Qty. |
Remarks |
| 1 | 12JSDX240TA-1701116 | First Shaft Gear | 1 | — |
| 2 | 9JS200T-1701123 | Retaining Ring | 6 | — |
| 3 | 12JSDX240T-1701190-2 | Synchronizer Assembly | 1 | — |
| 4 | 9JS200T-1701122 | Washer for Main Shaft Gear | 8 | — |
| 5 | 12JSDX240TA-1701115 | Overdrive Gear for Second Shaft | 1 | — |
| 6 | 12JSDX240TA-1701114 | 4th Gear for Second Shaft | 1 | — |
| 7 | 12JSDX240T-1701180 | Synchronizer Assembly | 1 | — |
| 8 | 12JSDX240TA-1701113 | 3rd Gear for Second Shaft | 1 | — |
| 9 | 12JSDX220T-1701112B | 2nd Gear for Second Shaft | 1 | — |
| 10 | 12JSDX240T-1701170 | Synchronizer Assembly | 1 | — |
| 11 | 12JSDX220T-1701111B | 1st Gear for Second Shaft | 1 | — |
| 12 | 12JSDX240T-1701108 | Sliding Sleeve | 1 | — |
| 13 | 12JSDX240T-1701110 | Reverse Gear for Second Shaft | 1 | — |
| 14 | 12JSDX240T-1701125 | Washer for Second Shaft Reverse Gear | 1 | — |
| 15 | 12JSDX220T-1701121B | Hexagon Key for Second Shaft | 1 | — |
| 16 | 12JSDX240T-1701105 | Second Shaft | 1 | — |
| ——END—— | ||||

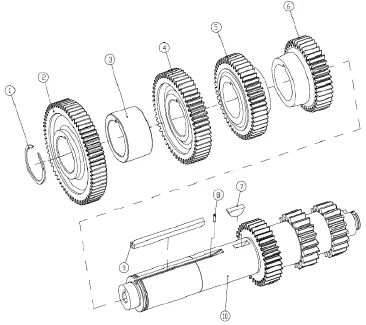

No. |
Part No. |
Name |
Qty. |
Remarks |
| 1 | 6DS100T-1701058 | Retaining Ring for Countershaft | 1 | — |
| 2 | 12JSDX240TA-1701056 | Countershaft Drive Gear | 1 | — |
| 3 | 12JSDX240T-1701057 | Spacer Sleeve | 1 | — |
| 4 | 12JSDX240TA-1701052 | Overdrive Gear for Countershaft | 1 | — |
| 5 | 12JSDX240TA-1701051 | 4th Gear for Countershaft | 1 | — |
| 6 | 12JSDX240TA-1701050 | 3rd Gear for Countershaft | 1 | — |
| 7 | X-6-E | Woodruff Key | 1 | — |
| 8 | Q5280514 | Elastic Cylindrical Pin | 1 | — |
| 9 | 16JS200T-1701055 | Square Key for Countershaft | 1 | — |
| 10 | 12JSDX220T-1701048B | Left Countershaft | 1 | — |
| ——END—— | ||||

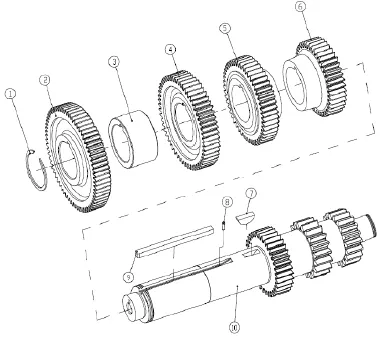

No. |
Part No. |
Name |
Qty. |
Remarks |
| 1 | 6DS100T-1701058 | Retaining Ring for Countershaft | 1 | — |
| 2 | 12JSDX240TA-1701056 | Countershaft Drive Gear | 1 | — |
| 3 | 12JSDX240T-1701057 | Spacer Sleeve | 1 | — |
| 4 | 12JSDX240TA-1701052 | Overdrive Gear for Countershaft | 1 | — |
| 5 | 12JSDX240TA-1701051 | 4th Gear for Countershaft | 1 | — |
| 6 | 12JSDX240TA-1701050 | 3rd Gear for Countershaft | 1 | — |
| 7 | X-6-E | Woodruff Key | 1 | — |
| 8 | Q5280514 | Elastic Cylindrical Pin | 1 | — |
| 9 | 16JS200T-1701055 | Square Key for Countershaft | 1 | — |
| 10 | 12JSDX220T-1701049B | Left Countershaft | 1 | — |
| ——END—— | ||||

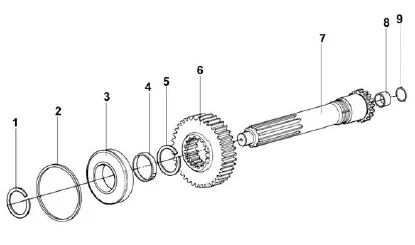

No. |
Part No. |
Name |
Qty. |
Remarks |
| 1 | 16980 | Flattened Wire Retaining Ring for Shaft | 1 | — |
| 2 | C01020 | Retaining Ring | 1 | — |
| 3 | 150212K | Single-Row Radial Ball Bearing with Retaining Groove and Dust Cover on One Side | 1 | — |
| 4 | 16463 | Gear Spacer Washer | 1 | — |
| 5 | 14750 | Retaining Ring | 1 | — |
| 6 | 12JSDX240TA-1701116 | First Shaft Gear | 1 | — |
| 7 | 12JS160T-1701030-4 | First Shaft | 1 | — |
| 8 | K304523 | Cage Assembly Bearing | 1 | — |
| 9 | Q43045 | Elastic Retaining Ring for Hole | 1 | — |
| ——END—— | ||||

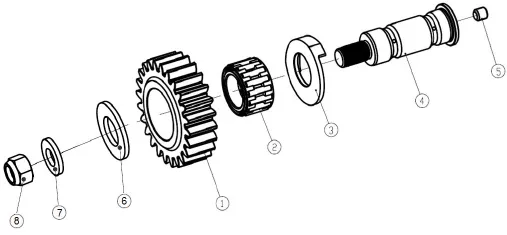

No. |
Part No. |
Name |
Qty. |
Remarks |
| 1 | 12JS200T-1701083 | Reverse Idler Gear | 1 | — |
| 2 | DS100-1701085 | Long Cylindrical Roller Bearing without Outer Ring | 1 | — |
| 3 | 12JS160T-1701084 | Cup-Type Reverse Washer | 1 | — |
| 4 | JS220-1701082 | Reverse Idler Shaft | 1 | — |
| 5 | Q2821212 | Slotted Flat-End Set Screw | 1 | — |
| 6 | JS220-1701087 | Reverse Thrust Washer | 1 | — |
| 7 | JS220-1701088 | Washer for Reverse Idler Shaft | 1 | — |
| 8 | GB889.2-2000-M20×1.5 | Hexagon Lock Nut with Non-Metallic Insert (per GB889.2-2000) | 1 | — |
| ——END—— | ||||

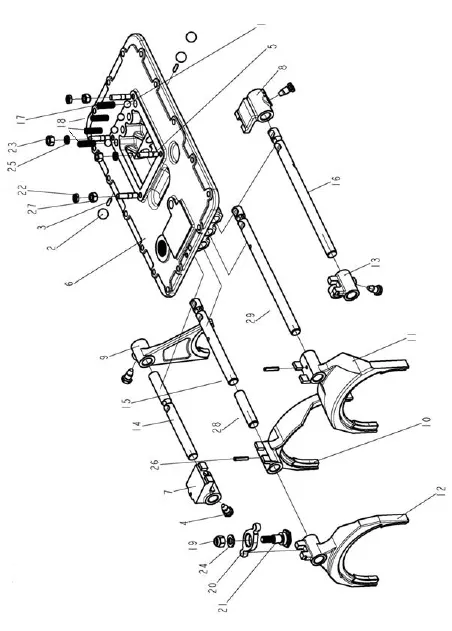

No. |
Part No. |
Name |
Qty. |
Remarks |
| 1 | 12.7G100B GB/T308 | Steel Ball (12.7mm, Grade G100B, per GB/T 308) | 4 | — |
| 2 | 19.5G100B GB/T308 | Steel Ball (19.5mm, Grade G100B, per GB/T 308) | 3 | — |
| 3 | 1634 | Interlocking Pin for Shift Fork Shaft | 2 | — |
| 4 | 3220 | Locking Screw for Shift Fork | 3 | — |
| 5 | 11066 | Double-Ended Bolt | 1 | — |
| 6 | 11066-1 | Double-Ended Bolt | 1 | — |
| 7 | Q1421038M | Pre-Coated Hexagon Head Bolt and Spring Washer Assembly | 2 | — |
| 8 | 12JS160T-1702015 | Upper Cover | 1 | — |
| 9 | 12JS160T-1702050-2 | Reverse Guide Block Assembly | 1 | — |
| 10 | 12JS160T-1702054 | 5th & 6th Gear Guide Block | 1 | — |
| 11 | 12JS160T-1702055 | Reverse Shift Fork | 1 | — |
| 12 | 12JSDX240T-1702056 | 1st & 2nd Gear Shift Fork | 1 | — |
| 13 | 12JSDX240T-1702057 | 3rd & 4th Gear Shift Fork | 1 | — |
| 14 | 12JSDX240TA-1702058 | 5th & 6th Gear Shift Fork | 1 | — |
| 15 | 12JS160T-1702059-1 | 5th & 6th Gear Shift Guide Block | 1 | — |
| 16 | 12JSDX240T-1702063 | Reverse Shift Fork Shaft | 1 | — |
| 17 | 12JSDX240T-1702064 | 1st, 2nd, 3rd & 4th Gear Shift Fork Shaft | 1 | — |
| 18 | 12JSDX240T-1702066 | 5th & 6th Gear Shift Fork Shaft | 1 | — |
| 19 | F96084-5 | Compression Spring | 4 | — |
| 20 | GB889-80-M12×125 | Hexagon Lock Nut with Nylon Ring (per GB889-80) | 1 | — |
| 21 | JS100A-1702072 | Swing Shifting Head | 1 | — |
| 22 | JS100A-1702073 | Support Pin | 1 | — |
| 23 | Q351B10 | Thin Hexagon Nut | 1 | — |
| 24 | Q361B10 | Type 2 Hexagon Nut | 1 | — |
| 25 | Q40112 | Flat Washer | 1 | — |
| 26 | Q40310 | Spring Washer | 2 | — |
| 27 | Q5280630 | Elastic Cylindrical Pin | 2 | — |
| 28 | X-1-603 | Hexagon Nut | 2 | — |
| 29 | 12JS160T-1702067-1 | 5th & 6th Gear Reverse Shift Fork Shaft | 1 | — |
| 30 | 12JSDX240TA-1702064 | 1st, 2nd, 3rd & 4th Gear Shift Fork Shaft | 1 | — |
| ——END—— | ||||

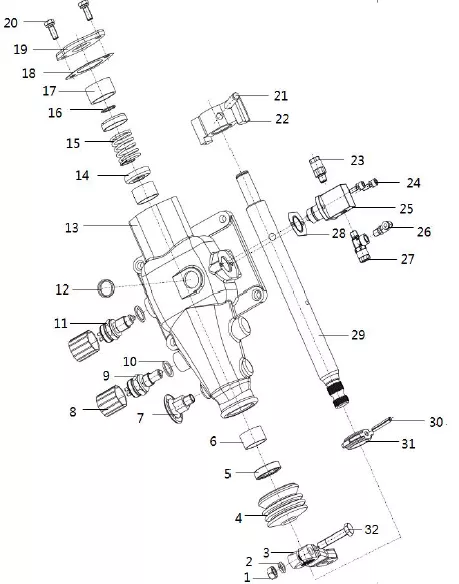

No. |
Part No. |
Name |
Qty. |
Remarks |
| 1 | Q341B10 | Type 1 Hexagon Nut – Fine Thread | 1 | — |
| 2 | Q40310 | Spring Washer | 1 | — |
| 3 | F96035-85 LRC | External Shift Arm | 1 | — |
| 4 | F99669 | Sleeve | 1 | — |
| 5 | F91444 | Oil Seal | 1 | — |
| 6 | F91345 | Bushing for Horizontal Shift Lever | 2 | — |
| 7 | 15276 | Breather Plug | 1 | — |
| 8 | C03016 | Switch Protection Cover | 2 | — |
| 9 | 791.00.71.0068-1 | Pressure Switch | 1 | — |
| 10 | Q72318 | Sealing Washer | 2 | — |
| 11 | 990.12.71.0041-3 | Pressure Switch | 1 | — |
| 12 | Q72224 | Bowl-Type Plug / Cup Plug | 1 | — |
| 13 | 12JSD160T-1703015 | Control Device Housing | 1 | — |
| 14 | F99673-1 | Spring Seat | 2 | — |
| 15 | 12JS160T-1703027-1 | Compression Spring | 1 | — |
| 16 | Q43120 | Elastic Retaining Ring for Shaft | 1 | — |
| 17 | 12JS160T-1703024 | Limit Sleeve | 1 | — |
| 18 | F99672-2 | End Pad | 1 | — |
| 19 | F99666-2 | Side Cover | 1 | — |
| 20 | Q1420822 | Hexagon Head Bolt and Spring Washer Assembly | 2 | — |
| 21 | C03030 | Cylindrical Pin | 1 | — |
| 22 | 12JS160T-1703018 | Shifting Head | 1 | — |
| 23 | C01051 | Straight Pipe Fitting | 1 | — |
| 24 | QH50-4211313 | Hexagon Socket Cylinder Head Screw and Spring Washer Assembly | 2 | — |
| 25 | 12JS160T-1703022 | Pneumatic Circuit Control Valve | 1 | — |
| 26 | 12JS160T-1703021 | 90° Quick-Disconnect Fitting | 1 | — |
| 27 | C01053 | Tee Pipe Fitting | 1 | — |
| 28 | F91353 | Gasket for Dual H Pneumatic Valve | 1 | — |
| 29 | 12JS160T-1703017 | Horizontal Shift Lever | 1 | — |
| 30 | C09035 | Elastic Cylindrical Pin | 1 | — |
| 31 | F99681-10 | Low/Reverse Gear Switch Control Block | 1 | — |
| 32 | Q151B1050 | Hexagon Head Bolt – Fine Thread | 1 | — |
| ——END—— | ||||

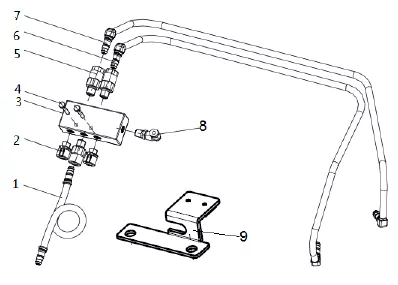

No. |
Part No. |
Name |
Qty. |
Remarks |
| 1 | 666164 | Air Pipe Assembly | 1 | — |
| 2 | 7935 (1/8″) | Breather Plug (1/8 inch) | 2 | — |
| 3 | 12JS160T-1703052 | Single H-Valve | 1 | — |
| 4 | Q1420430 | Hexagon Head Bolt and Spring Washer Assembly | 2 | — |
| 5 | C01051 | Straight Pipe Fitting | 3 | — |
| 6 | 666166 | Air Pipe Assembly | 1 | — |
| 7 | 666165 | Air Pipe Assembly | 1 | — |
| 8 | 12JS160T-1703021 | 90° Quick-Disconnect Fitting | 1 | — |
| 9 | 12JS160T-1702095 | Single H-Valve Support Bracket | 1 | — |
| ——END—— | ||||
No. |
Part No. |
Name |
Qty. |
Remarks |
| 1 | 14347 | Gasket | 1 | — |
| 2 | Q171B1250 | Hexagon Head Bolt with Hole in Head | 2 | — |
| 4 | 12JSD160T-1707108 | Press Plate for Auxiliary Case Main Shaft Gear | 1 | — |
| 5 | 12JSD160T-1707140-2 | Synchronizer Assembly | 1 | — |
| 6 | 12JSD200T-1707047 | Extended Countershaft Welded Assembly for Auxiliary Case | 1 | — |
| 7 | 12JSD200T-1707050 | Countershaft Welded Assembly for Auxiliary Case | 1 | — |
| 8 | JS220-1707060-16 | Cylinder Assembly for Auxiliary Case | 1 | — |
| 9 | 12JSD200T-1707105-12 | Main Shaft for Auxiliary Case | 1 | — |
| 10 | 12JSD200T-1707106 | Reduction Gear for Auxiliary Case Main Shaft | 1 | — |
| 11 | 12JSD200T-1707107 | Washer for Auxiliary Case Main Shaft | 1 | — |
| 12 | 192311E | Short Cylindrical Roller Bearing | 2 | — |
| 14 | A-C09008 | Bolt Assembly | 4 | — |
| 15 | C09033 | Hexagon Head Bolt with Hole in Head and Spring Washer Assembly | 1 | — |
| 16 | F96006-1 | Flange Nut | 1 | — |
| 17 | Q433120 | Flattened Wire Retaining Ring for Shaft | 2 | — |
| 18 | JS180-1707051 | Retaining Ring | 2 | — |
| 19 | JSD180-1707052 | Countershaft Cover for Auxiliary Case | 1 | — |
| 20 | JSD180-1707053 | Gasket for Auxiliary Case Countershaft Cover | 2 | — |
| 21 | RTD-11609A-1707154-22 | Rear Bearing Cover Assembly for Main Shaft | 1 | — |
| 22 | RTD-11609A-1707156 | Gasket for Main Shaft Rear Bearing Cover | 1 | — |
| 23 | 16JSS300T-1707109 | Tapered Roller Bearing | 1 | — |
| 24 | JSD220-1707015 | Rear Cover Housing | 1 | — |
| 25 | Q1421032M | Pre-Coated Hexagon Head Bolt and Spring Washer Assembly | 4 | — |
| 26 | Q1421075 | Hexagon Head Bolt and Spring Washer Assembly | 5 | — |
| 27 | RTD-11609A-1707067-1 | Shift Fork for Auxiliary Case | 1 | — |
| 28 | RTD-11609A-1707016 | Gasket for Rear Cover | 1 | — |
| 29 | 14334 | Locating Pin for Rear Cover | 2 | — |
| ——END—— | ||||
No. |
Part No. |
Name |
Qty. |
Remarks |
| 1 | RTD-11609A-1707067-1 | Shift Fork for Auxiliary Case | 1 | — |
| 2 | Q171B1250 | Small Hexagon Head Bolt with Hole in Head (Precision) | 2 | — |
| 3 | 14347 | Gasket | 1 | — |
| 4 | JS220-1707062-1 | Range Gear Cylinder | 1 | — |
| 5 | Q1421032 | Hexagon Head Bolt and Spring Washer Assembly | 4 | — |
| 6 | 14765 | O-Ring | 1 | — |
| 7 | JS220-1707061-1 | Range Gear Shift Fork Shaft | 1 | — |
| 8 | 14345 | O-Ring | 1 | — |
| 9 | GB890-80-M16×1.5 | Thin Hexagon Lock Nut with Nylon Ring (per GB890-80) | 1 | — |
| 10 | 14341 | Piston for Range Gear Cylinder | 1 | — |
| 11 | 14344 | O-Ring | 1 | — |
| 12 | 14349 | Gasket for Cylinder Head | 1 | — |
| 13 | QH70-4211401-1 | Intermediate Position Cylinder Assembly | 1 | — |
| 14 | Q1421032 | Hexagon Head Bolt and Spring Washer Assembly | 4 | — |
| ——END—— | ||||
No. |
Part No. |
Name |
Qty. |
Remarks |
| 1 | JS180-1701157-2 | Odometer Rotor | 1 | — |
| 2 | 19109-2 | Oil Seal | 1 | — |
| 3 | JS220-1707111 | Bushing for Odometer Drive Gear | 1 | — |
| 4 | RTD-11609A-1707155-5 | Rear Bearing Cover for Main Shaft | 1 | — |
| 5 | C03054-16 | Vehicle Speed & Odometer Sensor | 1 | — |
| ——END—— | ||||
No. |
Part No. |
Name |
Qty. |
Remarks |
| 1 | Q1420660 | Hexagon Head Bolt and Spring Washer Assembly | 2 | — |
| 2 | 666163 | Air Pipe Assembly | 1 | — |
| 3 | A-C03002-11 | Air Filter Regulator and Plug Assembly | 1 | — |
| 4 | 54015 CA | Bowl-Type Plug / Cup Plug | 1 | Per unit |
| 5 | A-4740-1 | Air Filter Regulator Assembly | 1 | Per unit |
| 6 | Q618B01 | Hexagon Head Tapered Plug | 2 | Per unit |
| 7 | C01052 | 45° Pipe Fitting | 1 | — |
| ——END—— | ||||
No. |
Part No. |
Name |
Qty. |
Remarks |
| 1 | Q151B1645M | Pre-Coated Hexagon Head Bolt – Fine Thread | 2 | — |
| 2 | 12JSDX240T-1701068 | Countershaft Baffle Assembly | 2 | — |
| 3 | 12JSDX240T-1701069 | Countershaft Bearing Baffle | 2 | — |
| 4 | Q5280514 | Elastic Cylindrical Pin | 2 | — |
| 5 | C01021 | Retaining Ring | 2 | — |
| 6 | NUP2211ENM | Cylindrical Roller Bearing | 2 | — |
| 7 | 5DS50T-1701085 | Oil Plug and Magnet Sub-Assembly | 2 | — |
| 8 | JS150TA-1708093B-1 | O-Ring | 2 | — |
| 9 | JS150TA-1708092B-1 | Hollow Bolt for Diversion Valve | 2 | — |
| 10 | JS150TA-1708090B-1 | Oil Pump Diversion Valve | 1 | — |
| 11 | JS150TA-1708091B-1 | Gasket | 1 | — |
| 12 | 12JSD200T-1708021-1 | Oil Pump Drive Gear | 1 | — |
| 13 | 12JSD200T-1701058-1 | Retaining Ring | 1 | — |
| 14 | 102309E | Short Cylindrical Roller Bearing | 2 | — |
| 15 | Q43145 | Elastic Retaining Ring for Shaft | 1 | — |
| 16 | 12JS160T-1701106 | Washer for Main Shaft Gear | 1 | — |
| 17 | 12JS160T-1701107 | Snap Ring for Reverse Gear | 1 | — |
| 18 | 12JSD200T-1701124B | Bearing Support | 1 | — |
| 19 | 50118 | Single-Row Radial Ball Bearing with Retaining Groove | 1 | — |
| 20 | C01019 | Retaining Ring | 1 | — |
| 21 | JS220-1707031 | Bearing Positioning Disk for Auxiliary Case | 1 | — |
| 22 | C09032 | Hexagon Head Bolt with Hole in Head | 6 | — |
| 23 | 12JSD200T-1707030B | Drive Gear for Auxiliary Case | 1 | — |
| 24 | 9JS200T-1701123 | Retaining Ring | 1 | — |
| 25 | 10JSX220A-1708080 | Oil Pump Assembly | 1 | — |
| ——END—— | ||||
No. |
Part No. |
Name |
Qty. |
Remarks |
| 1 | QH50-4211101-3 | PTO (Power Take-Off) Housing | 1 | — |
| 2 | Q40310 | Spring Washer | 4 | — |
| 3 | QH50-4211315 | Hexagon Socket Cylinder Head Screw and Spring Washer Assembly | 4 | — |
| 4 | Q218B1030TF2 | Hexagon Socket Cylinder Head Screw | 3 | — |
| 5 | QH50-4211312 | Shift Fork Positioning Screw | 1 | — |
| 6 | QH50-4211301 | Shift Fork | 1 | — |
| 7 | QH50-4211305 | Shift Fork Shaft | 1 | — |
| 8 | QH50-4211302 | Engagement Sleeve | 1 | — |
| 9 | QH50-4211105 | Hollow Shaft | 1 | — |
| 10 | QH50-4211110 | Support Spring Assembly | 1 | — |
| 11 | K505517 (GB/T 5846-86) | Needle Roller Bearing | 2 | Complies with GB/T 5846-86 |
| 12 | 32205 (GB/T 297-94) | Tapered Roller Bearing | 1 | Complies with GB/T 297-94 |
| 13 | QH50-4211106 | Input Gear | 1 | — |
| 14 | QH50-4211104 | Retaining Ring for Input Gear | 1 | — |
| 15 | QH50-4211502 | Double-Ended Bolt | 1 | — |
| 16 | Q33210 | Type 2 All-Metal Hexagon Lock Nut | 1 | — |
| 17 | Q5210824 | Locating Pin | 2 | — |
| 18 | Q80106 | Nut for Compression Fitting | 1 | — |
| 19 | Q80006 | Compression Sleeve | 1 | — |
| 20 | Q80406 | Straight Compression Fitting Body (End Connection) | 1 | — |
| 21 | GB3452.1-16×2.65 | O-Ring | 1 | Complies with GB3452.1 |
| 22 | QH50-4211309 | Gasket | 1 | — |
| 23 | QH50-4211310 | Piston | 1 | — |
| 24 | QH50-4211313 | Hexagon Socket Cylinder Head Screw and Spring Washer Assembly | 1 | — |
| 25 | QH50-4211311 | Return Spring | 1 | — |
| 26 | QH50-4211306 | Cylinder Block | 1 | — |
| 27 | Q1420860 | Hexagon Head Bolt | 2 | — |
| 28 | Q901 | Normally Open Breather Plug | 1 | — |
| 29 | 791.00.71.0068 | Pressure Switch | 1 | — |
| 30 | C03016 | Switch Protection Cover | 1 | — |
| 31 | Q614B03 | Square Head Tapered Plug | 1 | — |
| 32 | QH50-4211119 | Nameplate | 1 | — |
| 33 | Q5410206 | Nameplate Rivet | 2 | — |
| 34 | HG4-692-76-40×65×12 | Oil Seal | 2 | Complies with HG4-692-76 |
| 35 | Q129B1235 | Double-Ended Stud | 2 | — |
| 36 | Q341C12 | Type 1 Hexagon Nut – Fine Thread | 4 | — |
| 37 | Q129B1290 | Double-Ended Stud | 2 | — |
| 38 | Q40312 | Spring Washer | 4 | — |
| 39 | QH50-4211206-12 | Bearing Cover | 1 | — |
| 40 | QH50-4211207 | Gasket for Bearing Cover | 1 | — |
| 41 | QH50-4211203 | Adjusting Shim | 1 set | — |
| 42 | QH70-4211204-20 | Output Shaft Adapter | 1 | — |
| 43 | 30208 | Tapered Roller Bearing | 1 | — |
| 44 | QH50-4211102-1 | PTO Cover | 1 | — |
| 45 | QH50-4211201-3 | Output Gear Shaft | 1 | — |
| 46 | QH50-4211307 | Gasket for Cylinder Block | 1 | — |
| ——END—— | ||||
Note: All Above Data are Just for Referenece, All Data Might Change Without Notices or Update, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
Engine Sale Manual
Installation Drawing
Installation Manual
Operation Manual
Parts Catalogue
