Fast 10JSD140T MT Parts
FAST 10JSD140T transmission has 10 forward gears, the gear ratio steps are arranged reasonably, and has very outstanding fuel economy performance. With mechanical structure design and integrated with a synchronizer, the Maximum input speed is 2600 RPM. The length of the 10JSD140T transmission is 881.3 mm. The 10JSD140T manual transmission has 10 gears, and each gear has a different reduction ratio. The 1st gear reduction ratio is 14.941, the 2nd gear reduction ratio is 11.154, the 3rd gear reduction ratio is 8.281, the 4th gear reduction ratio is 6.087, the 5th gear reduction ratio is 4.462, the 6th gear reduction ratio is 3.349, the 7th gear reduction ratio is 2.250, the 8th gear reduction ratio is 1.856, the 9th gear reduction ratio is 1.364, the 10th gear reduction ratio is 1.000, and the reverse gear 1 ratio is 15.067, and the reverse gear 2 ratio is 3.377. The 10JSD140T manual transmission has an input torque range of 1400 N.m. The 10JSD140T transmission weight is 300 Kg.
FAST 10-speed MT series transmission have different models, with code J in the model name means mechanical transmission, with code SS in the model name means transmission with Double Intermediate Shaft and auxiliary box three intermediate shaft design.
With years of rich powertrain supply experience, EMAC can quickly understand and respond to customer needs, greatly reducing customer communication costs. According to the working environment and requirements of our customers, we will provide the most cost-effective solutions, and help customer to avoid mismatching problems caused by multiple independent suppliers of powertrain components, which often caused lot of troubles for vehicle manufacturers.
Advantages of Fast 10JSD140T MT Parts
It is synchronized with CMI’ advanced design and sophisticated manufacturing, adapts to harsh working conditions, and has high-intensity and heavy-duty work capabilities.
The Holset wastegate valve makes the low speed performance more perfect and the power performance better.
The cylinder block and cylinder head adopt integrated design to prevent the occurrence of engine water and oil leakage. The parts are 40% less than other similar engines, and the failure rate is greatly reduced.
The cylinder liner adopts a platform mesh honing design, which effectively prevents oil leakage with a perfect geometric structure, and adopts advanced technology such as new piston ring components and gasket crimping molding to reduce oil loss.
Using forged steel camshaft and crankshaft, high-strength cylinder design, many parts are cast on the cylinder, with high rigidity, high pressure resistance, good reliability and longer service life.
Technical Specifications
Basic Introduction of Shaanxi Fast 10JSD140T MT
| Transmission Model: | 10JSD140T |
| Transmission Application: | Manual Transmission |
| Input Torque: | 1400 N.m |
| Maximum Speed: | 2600 RPM |
| Installation length: | 881.3 mm |
| Weight Iron/Al Alloy: | 300 Kg |
| Fuel Quantity: | 13 L |
| Speed Ratio: | 14.941-1 |
| Lead Time: | 15-30 Working Days |
| Payment Terms: | T/T ,L/C |
Search by Part No. or Part Name
Click Kit Name to Check Part List
- Clutch and Transmission Housing Assembly
- Second Shaft Assembly
- Left and Right Intermediate Shaft Assembly
- One Shaft Assembly
- Reverse Gear Intermediate Shaft Assembly
- Upper Cover Assembly
- Control Device Assembly
- Single H valve assembly
- Air Filter Regulator Assembly
- Auxiliary Box Drive Gear Assembly
- Auxiliary Gearbox Main Shaft Assembly

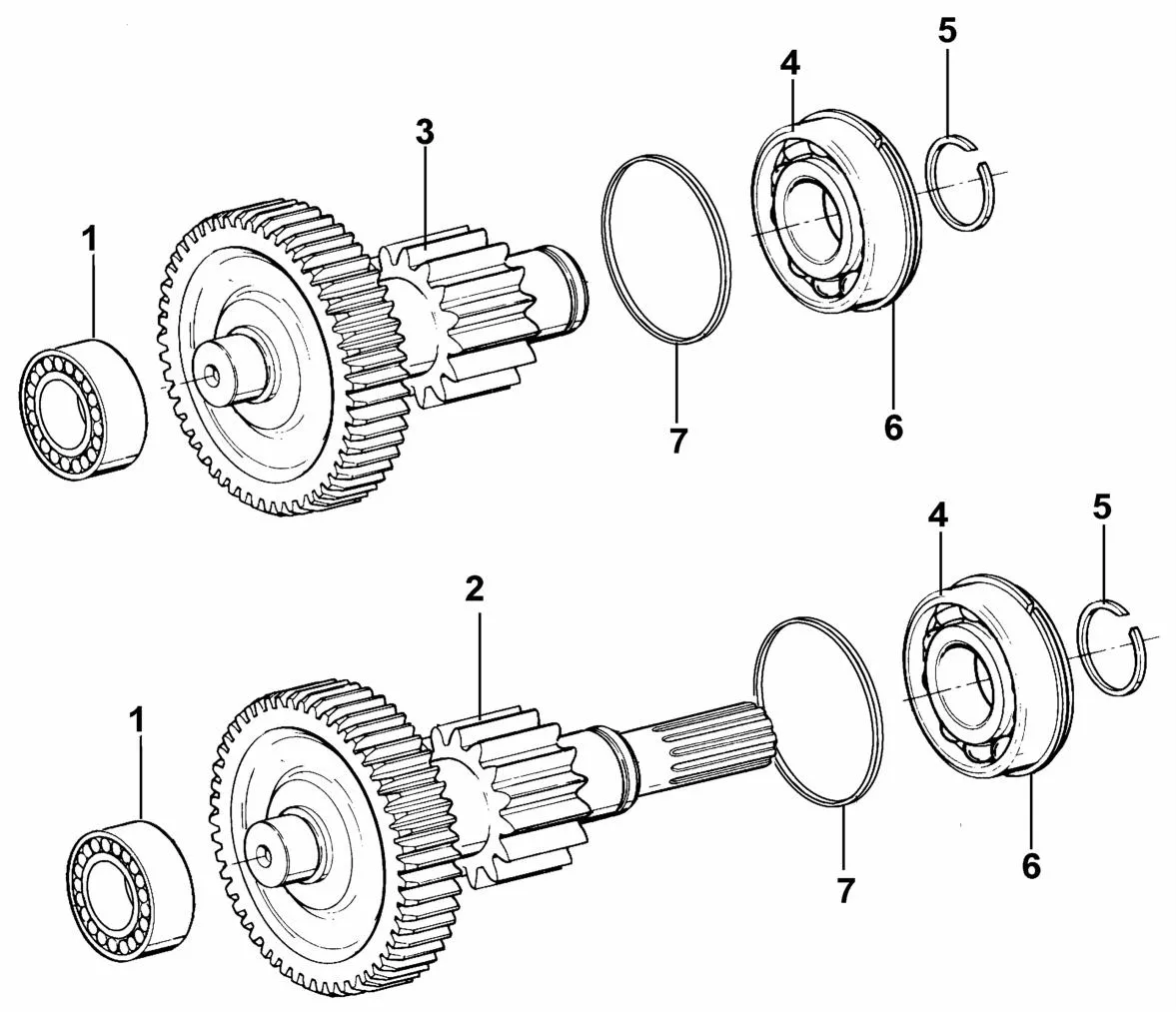

- Auxiliary Box Left and Right Intermediate Shaft
- Rear Cover Assembly
- Auxiliary Box Cylinder Assembly
- Side Power Take-off Window Cover
- QH50 Power Take-off Assembly
No. | Part No. | Name | Qty. | Remarks |
| 1 | Q1701032 | Small Hexagon Head Bolt with Hole in Head | 2 | — |
| 2 | Q40310 | Spring Washer | 2 | — |
| 3 | 10JS160T-1701040-2 | First Shaft Bearing Cover | 1 | — |
| 4 | Q150B1032 | Hexagon Head Bolt | 4 | — |
| 5 | Q40310 | Spring Washer | 4 | — |
| 6 | F500A-1802191 | Skeleton Oil Seal Assembly | 1 | — |
| 7 | 10JS160T-1701042 | Gasket for First Shaft Bearing Cover | 1 | — |
| 8 | Q150B1290 | Hexagon Head Bolt | 2 | — |
| 9 | Q40312 | Spring Washer | 2 | — |
| 10 | C01056 | Stud Bolt | 6 | — |
| 11 | Q40116 | Washer | 6 | — |
| 12 | GB889-80 | Hexagon Lock Nut with Nylon Ring M16×1.5 | 6 | — |
| 13 | Q43125 | Elastic Retaining Ring for Shaft | 2 | — |
| 14 | JS180-1601029-1 | Dust Cover | 2 | — |
| 15 | Q43042 | Elastic Retaining Ring for Hole | 2 | — |
| 16 | JS180-1601030-2 | Shift Fork Bushing | 2 | — |
| 17 | GE25ES | Spherical Plain Bearing | 1 | — |
| 18 | Q150B1235 | Hexagon Head Bolt | 4 | — |
| 19 | Q40312 | Spring Washer | 4 | — |
| 20 | JS180-1601024-7 | Release Fork Bracket | 1 | — |
| 21 | JS180-1601021-6 | Shift Fork | 1 | — |
| 22 | JS180-1601023-3 | Release Fork Shaft | 1 | — |
| 23 | J75-1601033 | Release Bearing Lubrication Tube Assembly | 1 | — |
| 24 | J75-1601031 | Pipe Fitting | 1 | — |
| 25 | J75-1601035 | Grease Cup Seat | 1 | — |
| 26 | J75-1601034 | Grease Cup Cover | 1 | — |
| 27 | Q40310 | Spring Washer | 1 | — |
| 28 | Q72310T3 | Sealing Washer | 2 | — |
| 29 | 10JS160T-1601015-3 | Clutch Housing | 1 | — |
| 30 | 10JS160T-1601016 | Clutch Housing Gasket | 1 | — |
| 31 | Q61304 | Square Head Tapered Plug | 1 | — |
| 32 | 10JSD160T-1701015-1 | Transmission Housing | 1 | — |
| 33 | Q150B1225 | Hexagon Head Bolt | 8 | — |
| 34 | 16596 | Bottom Power Take-off (PTO) Window Cover | 1 | — |
| 35 | 16929 | Gasket for Bottom PTO Window Cover | 1 | — |
| 36 | 6JS160T-1709587-1 | Oil Plug | 3 | — |
| 37 | 6JS160T-1709588-1 | O-Ring for Oil Plug | 3 | — |
| 38 | 14373 | Round Magnet | 3 | — |
| 39 | Q1231635 | Stud Bolt | 2 | — |
| 40 | Q40316 | Spring Washer | 2 | — |
| 41 | GB52-76 | Hexagon Nut M16×1.5 | 2 | — |
| 42 | 14334 | Rear Cover Locating Pin | 2 | — |
| 43 | C04004-6 | Clutch Access Cover | 1 | — |
| ——END—— | ||||

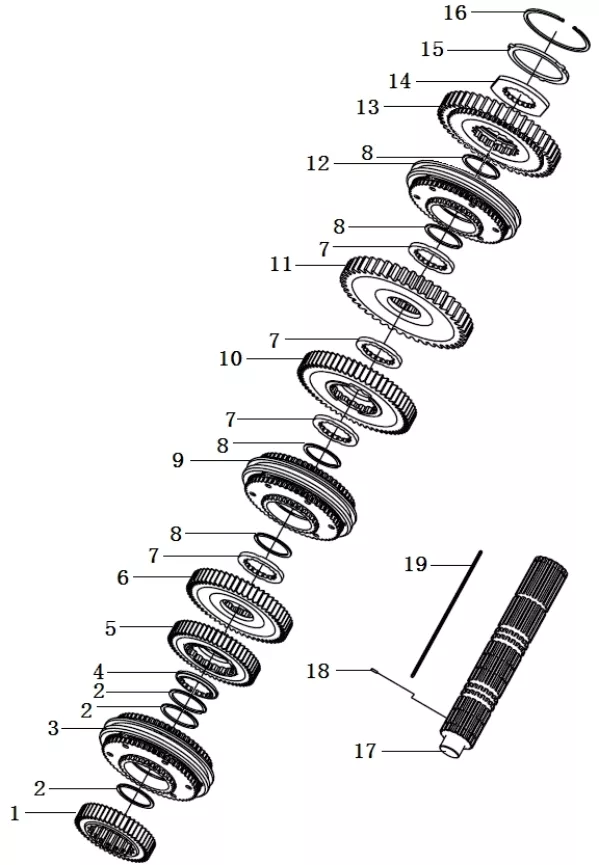

No. | Part No. | Name | Qty. | Remarks |
| 1 | 10JS160T-1701031 | First Shaft Gear | 1 | — |
| 2 | 16763 | Retaining Ring | 3 | — |
| 3 | JS130T-1701180 | 3rd & 4th Gear Synchronizer Assembly | 1 | — |
| 4 | 12JS160T-1701122 | Spline Washer for Second Shaft Gear | 4 | — |
| 5 | 10JS160T-1701116 | Second Shaft 4th Gear | 1 | — |
| 6 | 10JS160T-1701115 | Second Shaft 3rd Gear | 1 | — |
| 7 | 9JS200T-1701122 | Spline Washer for Second Shaft Gear | 4 | — |
| 8 | 9JS200T-1701123 | Retaining Ring | 4 | — |
| 9 | 9JS200T-1701170 | 1st & 2nd Gear Synchronizer Assembly | 1 | — |
| 10 | 10JS160T-1701114 | Second Shaft 2nd Gear | 1 | — |
| 11 | 10JS160T-1701113 | Second Shaft 1st Gear | 1 | — |
| 12 | 10JS160T-1701160 | 1st & Reverse Gear Synchronizer Assembly | 1 | — |
| 13 | 10JS160T-1701110 | Second Shaft Reverse Gear Assembly | 1 | — |
| 14 | 9JS200T-1701124 | Gasket for Second Shaft Reverse Gear | 1 | — |
| 15 | 12JS160T-1701106 | Main Shaft Gear Washer | 1 | — |
| 16 | 12JS160T-1701107 | Reverse Gear Snap Ring | 1 | — |
| 17 | 10JS160T-1701105 | Second Shaft | 1 | — |
| 18 | Q5280310 | Elastic Cylindrical Pin | 1 | — |
| 19 | 10JS160T-1701121 | Hexagonal Key for Second Shaft | 1 | — |
| ——END—— | ||||
No. | Part No. | Name | Qty. | Remarks |
| 1 | Q151B1645M | Pre-coated Hexagon Head Bolt and Spring Washer Assembly | 1 | — |
| 2 | 19668 | Intermediate Shaft Bearing Baffle | 1 | — |
| 3 | Q5280514 | Elastic Cylindrical Pin | 1 | — |
| 4 | 192309E | Short Cylindrical Roller Bearing | 1 | — |
| 5 | C01021 | Retaining Ring | 1 | — |
| 6 | 19198 | Intermediate Shaft Retaining Ring | 1 | — |
| 7 | 10JS160T-1701054 | Intermediate Shaft Drive Gear | 1 | — |
| 8 | 9JS200T-1701057 | Spacer Sleeve | 2 | — |
| 9 | 10JS160T-1701053 | Intermediate Shaft 4th Gear | 1 | — |
| 10 | 10JS160T-1701052 | Intermediate Shaft 3rd Gear | 1 | — |
| 11 | 10JS160T-1701051 | Intermediate Shaft 2nd Gear | 1 | — |
| 12 | 10JS160T-1701056 | Square Key for Intermediate Shaft | 1 | — |
| 13 | X-6-E | Woodruff Key | 1 | — |
| 14 | 10JS160T-1701048 | Intermediate Shaft | 1 | — |
| 15 | 102309E | Short Cylindrical Roller Bearing | 1 | — |
| 16 | Q43145 | Retaining Ring | 1 | — |
| ——END—— | ||||
No. | Part No. | Name | Qty. | Remarks |
| 1 | Q43170 | Flattened Wire Retaining Ring for Shaft | 1 | — |
| 2 | 6314X2-ZNBR-C3 | Bearing (with Retaining Ring) | 1 | — |
| 3 | 10JS160T-1701031 | First Shaft Gear | 1 | — |
| 4 | 10JS160T-1701030-1 | First Shaft | 1 | — |
| 5 | 16566 | Second Shaft Guide Bushing | 1 | — |
| 1 | Q43170 | Flattened Wire Retaining Ring for Shaft | 1 | — |
| 2 | 6314X2-ZNBR-C3 | Bearing (with Retaining Ring) | 1 | — |
| 3 | 10JS160T-1701031 | First Shaft Gear | 1 | — |
| 4 | 10JS160T-1701030-1 | First Shaft | 1 | — |
| 5 | 16566 | Second Shaft Guide Bushing | 1 | — |
| ——END—— | ||||

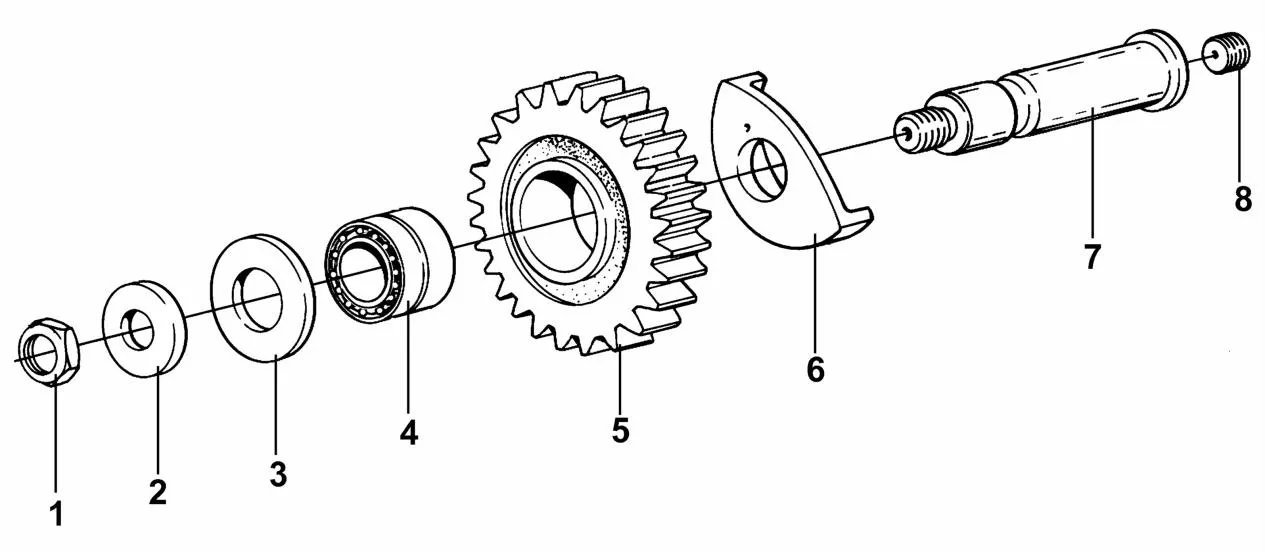

No. | Part No. | Name | Qty. | Remarks |
| 1 | GB890-80 | Nut M16×1.5 | 2 | — |
| 2 | JS220-1701088 | Reverse Intermediate Shaft Washer | 2 | — |
| 3 | JS220-1701087 | Reverse Thrust Washer | 2 | — |
| 4 | DS100-1701085 | Needle Roller Bearing | 2 | — |
| 5 | 10JS160T-1701083 | Reverse Intermediate Gear | 2 | — |
| 6 | 9JS200T-1701084 | Cup-shaped Reverse Washer | 2 | — |
| 7 | JS220-1701082 | Reverse Intermediate Shaft | 2 | — |
| 8 | Q2821212 | Flat-end Set Screw | 2 | — |
| ——END—— | ||||

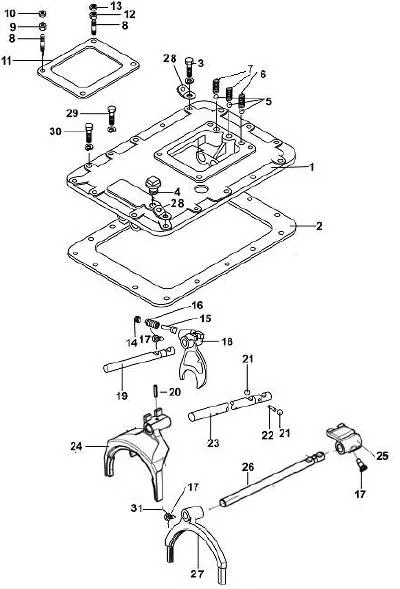

No. | Part No. | Name | Qty. | Remarks |
| 1 | 10JS160T-1702015 | Upper Cover | 1 | — |
| 2 | 14918 | Upper Cover Gasket | 1 | — |
| 3 | Q1421038 | Hexagon Head Bolt and Spring Washer Assembly | 2 | — |
| 4 | 6JS160T-1709587-1 | Oil Plug | 1 | — |
| 5 | 6JS160T-1709588-1 | O-Ring | 1 | — |
| 6 | 12.7G100bGB-T308 | Steel Ball | 3 | — |
| 7 | F96084 | Compression Spring | 2 | — |
| 8 | F96085 | Compression Spring | 1 | — |
| 9 | 11066 | Stud Bolt | 4 | — |
| 10 | X-1-603 | Hexagon Nut 3/8″-24 | 2 | — |
| 11 | Q351B10 | Thin Hexagon Nut | 2 | — |
| 12 | 1642 | Control Window Gasket | 1 | — |
| 13 | Q40310 | Spring Washer | 4 | — |
| 14 | Q361B10 | Hexagon Nut (Type 2) | 2 | — |
| 15 | 8968 | Reverse Lock Plug | 1 | — |
| 16 | 10019 | Reverse Lock Plunger | 1 | — |
| 17 | Mar-74 | Reverse Lock Spring | 1 | — |
| 18 | 3220 | Shift Fork Locking Screw | 3 | — |
| 19 | 10JS160T-1702054 | 1st & Reverse Gear Shift Fork | 1 | — |
| 20 | 10JS160T-1702064 | 1st & Reverse Gear Shift Fork Shaft | 1 | — |
| 21 | Q5280630 | Elastic Cylindrical Pin | 1 | — |
| 22 | 19.05G100bGB-T308 | Steel Ball | 2 | — |
| 23 | 1634 | Shift Fork Shaft Interlock Pin | 1 | — |
| 24 | 10JS160T-1702065 | 2nd & 3rd Gear Shift Fork Shaft | 1 | — |
| 25 | 10JS160T-1702055 | 2nd & 3rd Gear Shift Fork | 1 | — |
| 26 | 14659 | 4th & 5th Gear Guide Block | 1 | — |
| 27 | 10JS160T-1702066 | 4th & 5th Gear Shift Fork Shaft | 1 | — |
| 28 | JS130T-1702056-1 | 3rd & 4th Gear Shift Fork | 1 | — |
| 29 | 20815 | Lifting Angle Plate | 2 | — |
| 30 | Q1421032 | Hexagon Head Bolt and Spring Washer Assembly | 12 | — |
| 31 | GB27-88 | Hexagon Head Bolt for Reamed Hole M10×32 | 2 | — |
| 32 | 1819 | Iron Wire | As Required | — |
| ——END—— | ||||

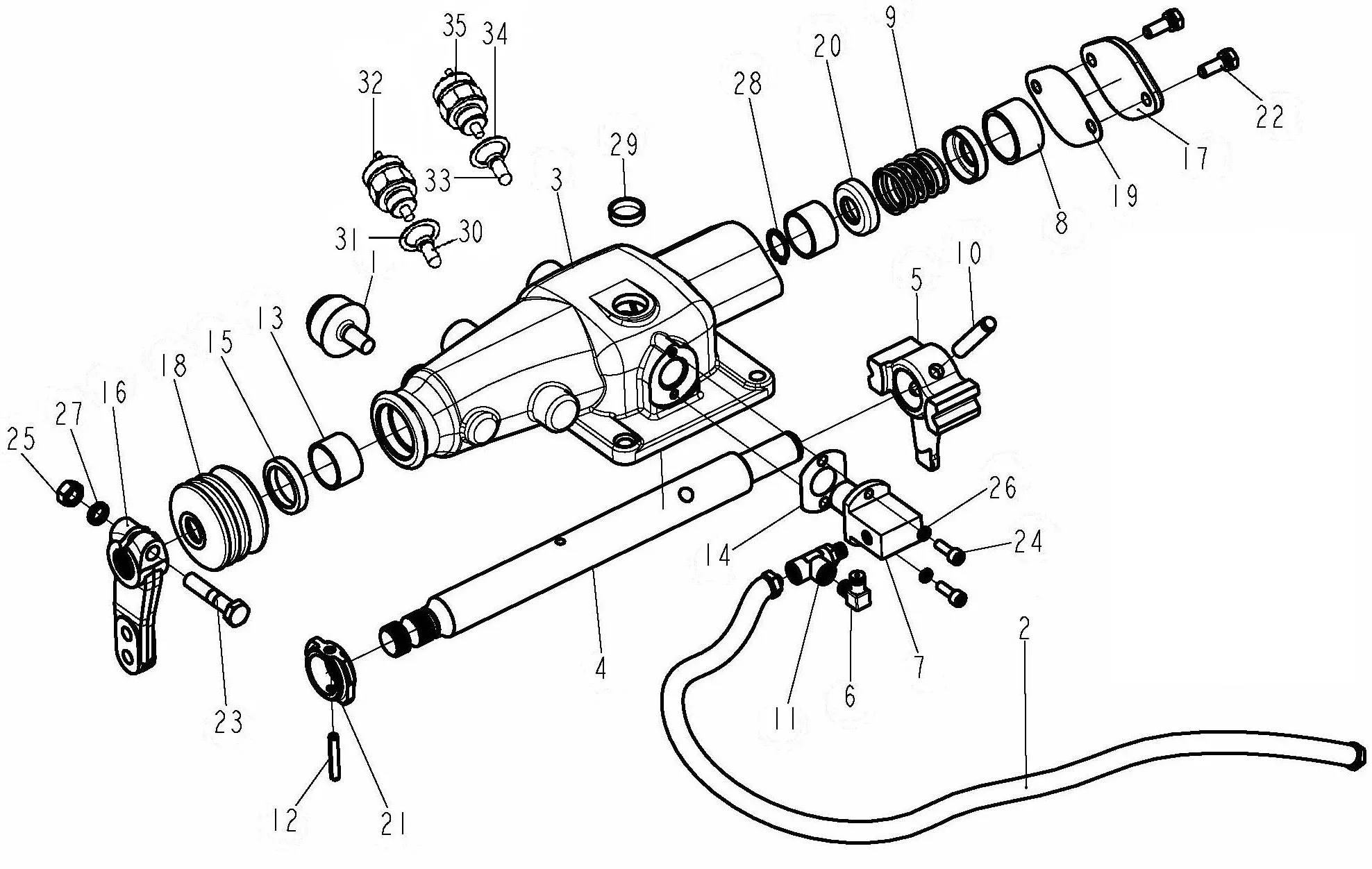

No. | Part No. | Name | Qty. | Remarks |
| 1 | 15276 | Breather Plug | 1 | — |
| 2 | 66686 | Air Pipe Assembly | 1 | — |
| 3 | 12JSD160T-1703015 | Control Device Housing | 1 | — |
| 4 | F99679-25 | Horizontal Shift Lever | 1 | — |
| 5 | F99585-11 | Shift Head | 1 | — |
| 6 | 12JS160T-1703021 | 90° Quick-Change Connector | 2 | — |
| 7 | 12JS160T-1703024 | Limit Sleeve | 1 | — |
| 8 | 12JS160T-1703027 | Compression Spring | 1 | — |
| 9 | C03030 | Cylindrical Pin | 1 | — |
| 10 | C03052 | Tee Pipe Fitting | 1 | — |
| 11 | C09035 | Elastic Cylindrical Pin | 1 | — |
| 12 | F91345 | Bushing for Horizontal Shift Lever | 2 | — |
| 13 | F91353 | Gasket for Dual H Air Valve | 1 | — |
| 14 | F91444 | Oil Seal | 1 | — |
| 15 | F96035-74 | LRC External Shift Arm | 1 | — |
| 16 | F99666-2 | Side Plate | 1 | — |
| 17 | F99669 | Sleeve | 1 | — |
| 18 | F99672-2 | End Gasket | 1 | — |
| 19 | F99673-1 | Spring Seat | 2 | — |
| 20 | F99681 | Low/Reverse Gear Switch Control Block | 1 | — |
| 21 | Q1420822 | Hexagon Head Bolt and Spring Washer Assembly | 2 | — |
| 22 | Q151B1050 | Hexagon Head Bolt – Fine Thread | 1 | — |
| 23 | Q218B0618 | Hexagon Socket Cylinder Head Screw | 2 | — |
| 24 | Q341B10 | Hexagon Nut (Type 1) | 1 | — |
| 25 | Q40306 | Spring Washer | 2 | — |
| 26 | Q40310 | Spring Washer | 1 | — |
| 27 | Q43120 | Elastic Retaining Ring for Shaft | 1 | — |
| 28 | Q72224 | Bowl-shaped Plug | 1 | — |
| 29 | Q72318T3 | Gasket | 2 | — |
| 30 | 191.00.71.0068-1 | Pressure Switch (Reverse Gear) | 1 | — |
| 31 | 990.12.71.0041-3 | Pressure Switch (Neutral Gear) | 1 | — |
| ——END—— | ||||

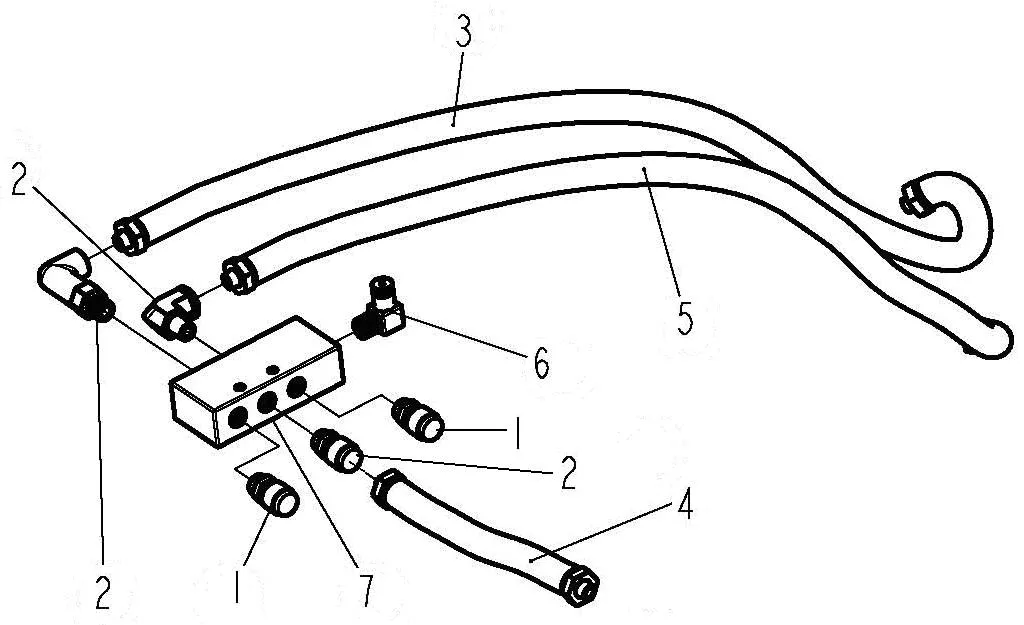

No. | Part No. | Name | Qty. | Remarks |
| 1 | 7935 | Breather Plug | 2 | — |
| 2 | C01051 | Straight Pipe Fitting | 5 | — |
| 3 | 66686 | Air Pipe Assembly | 1 | — |
| 4 | 12JS160T-1703021 | 90° Quick-Change Connector | 1 | — |
| 5 | 12JS160T-1703052 | Single H Valve | 1 | — |
| ——END—— | ||||

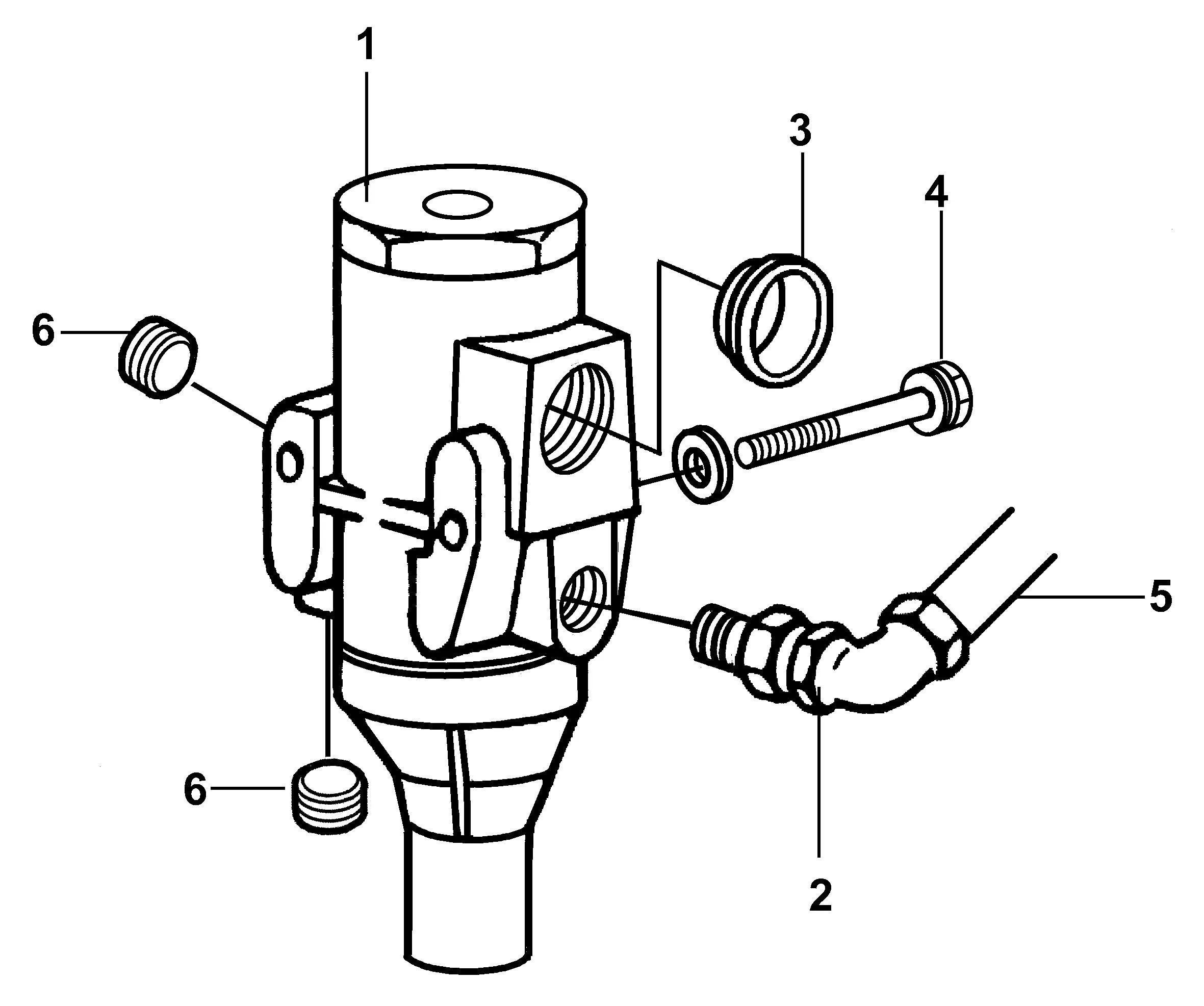

No. | Part No. | Name | Qty. | Remarks |
| 1 | A-4740-1 | Air Filter Regulator | 1 | — |
| 2 | C01053 | 90° Elbow Pipe Fitting | 1 | — |
| 3 | 54015 | CA Cup-Type Plug | 1 | — |
| 4 | Q1420660 | Hexagon Head Bolt with Spring Washer Assembly | 2 | — |
| 5 | Q618B01 | Hexagon Head Tapered Plug | 2 | — |
| ——END—— | ||||
No. | Part No. | Name | Qty. | Remarks |
| 1 | 10JS160T-1701126 | Bearing Housing | 1 | — |
| 2 | 50118 | Single-Row Radial Ball Bearing with Retaining Groove | 1 | — |
| 3 | C01019 | Retaining Ring | 1 | — |
| 4 | 10JSD140T-1707030 | Auxiliary Case Drive Gear | 1 | — |
| 5 | JS220-1707031 | Auxiliary Case Bearing Locating Plate | 1 | — |
| 6 | 16763 | Retaining Ring | 2 | — |
| 7 | GB25-76 | Small Hexagon Head Bolt with Hole (M10×22) | 6 | — |
| 8 | 1819 | Iron Wire | As Required | — |
| ——END—— | ||||
No. | Part No. | Name | Qty. | Remarks |
| 1 | RTD-11609A-1707105 | Auxiliary Case Main Shaft | 1 | — |
| 2 | 12JSD160T-1707140-2 | High-Low Gear Synchronizer Assembly | 1 | — |
| 3 | RTD-11609A-1707107 | Auxiliary Case Main Shaft Washer | 1 | — |
| 4 | RTD-11609A-1707108 | Auxiliary Case Main Shaft Gear Press Plate | 1 | — |
| 5 | 10JSD140-1707106 | Auxiliary Case Main Shaft Reduction Gear | 1 | — |
| 6 | F96006 | Flange Nut | 1 | — |
| ——END—— | ||||
No. | Part No. | Name | Qty. | Remarks |
| 1 | 42308E | Short Cylindrical Roller Bearing | 2 | — |
| 2 | 10JSD140-1707047 | Auxiliary Case Extended Countershaft Welded Assembly | 1 | — |
| 3 | 10JSD140-1707050 | Auxiliary Case Countershaft Welded Assembly | 1 | — |
| 4 | 192310E | Short Cylindrical Roller Bearing | 2 | — |
| 5 | 16723 | Retaining Ring | 2 | — |
| 6 | C01020 | Retaining Ring | 2 | — |
| 7 | 17384 | Bearing Washer | 2 | — |
| ——END—— | ||||
No. | Part No. | Name | Qty. | Remarks |
| 1 | RTD-11609A-1707016 | Rear Cover Gasket | 1 | — |
| 2 | RTD-11609A-1707015 | Rear Cover Housing | 1 | — |
| 3 | RTD-11609A-1707053 | Auxiliary Case Countershaft Bearing Cover Gasket | 2 | — |
| 4 | RTD-11609A-1707052 | Extended Countershaft Bearing Cover | 1 | — |
| 5 | A-C09008 | Bolt Assembly | 4 | — |
| 6 | Q1421040 | Hexagon Head Bolt with Spring Washer Assembly | 13 | — |
| 7 | RTD-11609A-1707109 | Tapered Roller Bearing | 1 | — |
| 8 | RTD-11609A-1707156 | Auxiliary Case Main Shaft Rear Bearing Cover Gasket | 1 | — |
| 9 | JS180-1701157-2 | Odometer Rotor | 1 | — |
| 10 | RTD-11609A-1707155-5 | Output Shaft Rear Bearing Cover | 1 | — |
| 11 | Q1421075 | Hexagon Head Bolt with Spring Washer Assembly | 4 | — |
| 12 | A-C09009 | Bolt Assembly | 1 | — |
| 13 | C03054-21 | Odometer Sensor | 1 | — |
| 14 | 19109-2 | Oil Seal | 1 | — |
| 15 | F96119 | Dust Cover | 1 | — |
| 16 | JS220-1707159-8 | Output Flange Plate | 1 | — |
| ——END—— | ||||
No. | Part No. | Name | Qty. | Remarks |
| 1 | A-C09016-17 | Auxiliary Case Cylinder Assembly | 1 | — |
| 2 | RTD-11609A-1707067-1 | Auxiliary Case Shift Fork | 1 | — |
| 3 | Q171B1225 | Fine Small Hexagon Head Bolt with Hole | 2 | — |
| 4 | 14347 | Gasket | 1 | — |
| 5 | 16778-4 | Range Gear Cylinder | 1 | — |
| 6 | Q1421032 | Hexagon Head Bolt with Spring Washer Assembly | 4 | — |
| 7 | 14765 | O-Ring | 1 | — |
| 8 | 16993-2 | Range Gear Shift Fork Shaft | 1 | — |
| 9 | 14345 | O-Ring | 1 | — |
| 10 | GB890-80-M16×1.5 | Hexagon Thin Nut with Nylon Ring Lock (M16×1.5) | 1 | — |
| 11 | 14341 | Range Gear Cylinder Piston | 1 | — |
| 12 | 14344 | O-Ring | 1 | — |
| 13 | 14349 | Cylinder Head Gasket | 1 | — |
| 14 | QH70-4211401-1 | Neutral Position Cylinder Assembly | 1 | — |
| 15 | Q1421065 | Hexagon Head Bolt with Spring Washer Assembly | 4 | — |
| ——END—— | ||||
No. | Part No. | Name | Qty. | Remarks |
| 1 | 1684 | Gasket | 1 | — |
| 2 | JS130T-1701020 | PTO Window Cover | 1 | — |
| 3 | Q1421032M | Pre-Coated Hexagon Head Bolt with Spring Washer Assembly | 6 | — |
| ——END—— | ||||
No. | Part No. | Name | Qty. | Remarks |
| 1 | QH50-4211101-2 | PTO Housing (Power Take-Off Housing) | 1 | — |
| 2 | Q40310 | Spring Washer | 9 | — |
| 3 | Q218B1035 | Hexagon Socket Cap Screw | 5 | — |
| 4 | QH50-4211312 | Shift Fork Set Screw | 1 | — |
| 5 | QH50-4211301 | Shift Fork | 1 | — |
| 6 | QH50-4211305 | Shift Fork Shaft | 1 | — |
| 7 | QH50-4211302 | Engaging Gear | 1 | — |
| 8 | QH50-4211105 | Hollow Shaft | 1 | — |
| 9 | QH50-4211110 | Support Spring Assembly | 1 | — |
| 10 | K505517 | Needle Roller Bearing | 2 | — |
| 11 | 32205 | Tapered Roller Bearing | 1 | — |
| 12 | QH50-4211106 | Input Gear | 1 | — |
| 13 | QH50-4211104 | Input Gear Retaining Ring | 1 | — |
| 14 | Q1811030 | Hexagon Flange Bearing Surface Toothed Bolt | 1 | — |
| 15 | Q5210824 | Locating Pin | 2 | — |
| 16 | Q80106 | Nut for Compression Fitting | 1 | — |
| 17 | Q80006 | Compression Sleeve | 1 | — |
| 18 | Q80406 | Straight Compression Fitting Body | 1 | — |
| 19 | GB3452.1 | O-Ring (16×2.65) | 1 | — |
| 20 | QH50-4211309 | Gasket | 1 | — |
| 21 | GB3452.1 | O-Ring (21.2×3.55) | 1 | — |
| 22 | QH50-4211310 | Piston | 1 | — |
| 23 | Q40306 | Spring Washer | 1 | — |
| 24 | Q218B0620 | Hexagon Socket Cap Screw | 1 | — |
| 25 | QH50-4211311 | Return Spring | 1 | — |
| 26 | QH50-4211306 | Cylinder Block | 1 | — |
| 27 | Q40308 | Spring Washer | 2 | — |
| 28 | Q150B0860 | Hexagon Head Bolt | 2 | — |
| 29 | Q901 | Normally Open Breather Plug | 1 | — |
| 30 | 791.00.71.0068 | Reverse Gear Switch | 1 | — |
| 31 | Q614B03 | Square Head Tapered Plug | 1 | — |
| 32 | QH50-4211119 | Nameplate / Label | 1 | — |
| 33 | Q5410206 | Nameplate Rivet | 2 | — |
| 34 | HG4-692-76 | Skeleton Oil Seal (40×65×12) | 1 | — |
| 35 | Q129B1235 | Stud Bolt | 2 | — |
| 36 | Q341C12 | Hexagon Nut | 4 | — |
| 37 | Q129B1290 | Stud Bolt | 2 | — |
| 38 | Q40312 | Spring Washer | 4 | — |
| 39 | QH50-4211206-12 | Bearing Cover | 1 | — |
| 40 | QH50-4211203 | Adjusting Shim (1 Set) | 1 Set | — |
| 41 | 30208 | Tapered Roller Bearing | 1 | — |
| 42 | QH50-4211102 | PTO Cover (Power Take-Off Cover) | 1 | — |
| 43 | QH50-4211201-3 | Output Gear Shaft | 1 | — |
| 44 | Q218B1035TF2 | Hexagon Socket Cap Screw (TF2) | 4 | — |
| 45 | QH50-4211307 | Cylinder Block Gasket | 1 | — |
| 46 | QH50-4211204-20 | Output Shaft Adapter | 1 | — |
| 47 | GB1096-79-C10X40 | Flat Key (C10×40) | 1 | — |
| 48 | QH70-4211208-4 | Cover Plate | 1 | — |
| ——END—— | ||||
Note: All Above Data are Just for Referenece, All Data Might Change Without Notices or Update, Please Contact Our Sales Team to Confirm All Details Via WhatsApp or Email.
Engine Sale Manual
Installation Drawing
Installation Manual
Operation Manual
Parts Catalogue
![](/wp-content/uploads/2021/08/WhatApp-Icon.png"){kind=icon}
